Product Features
Product Description

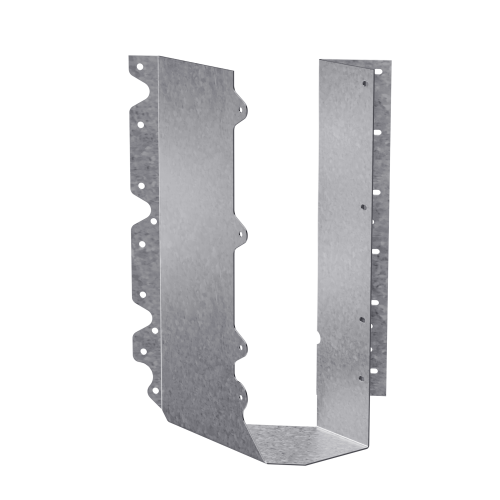

The Simpson SUR414 SUR Joist Hanger for 4x14, Skewed Right by Simpson Strong-Tie is a heavy-duty structural connector engineered to create a strong 45 deg. connection between a joist and a header. Designed to provide reliable support underneath the joist, this galvanized hanger is ideal for wood framing applications where a right-skewed angle is required, delivering both structural integrity and long-term corrosion resistance.
Key Features
- SUR = skewed right - provides a 45 deg. connection between a joist and header
- Can accommodate joists skewed 40 to 50 degrees
- Angled nail slots direct nails for proper installation
- Nominal joist size: 4x14
- Made from 16-gauge steel for robust structural performance
- Galvanized (G90) finish for extra corrosion resistance
Specifications
- Model Number: SUR414
- Brand: Simpson Strong-Tie
- Skew Direction: Right
- Member Size: 4x14
- Width (W): 3-9/16 in.
- Obtuse Flange Length: 1 in.
- Acute Flange Length: 2-3/8 in.
- Height (H): 12-1/2 in.
- Seat Depth: 2-5/8 in.
- Gauge: 16
- Coating/Finish: Zinc Galvanized, G90
- Installation Fasteners: 16d common nails (sold separately)
- Country of Origin: United States
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What does "SUR" stand for and what angle does this hanger provide?
- SUR stands for "skewed right." The SUR414 is specifically designed to provide a 45 deg. connection between a joist and a header, with the skew angled to the right.
- What range of skew angles can the SUR414 accommodate?
- The SUR414 can accommodate joists skewed between 40 and 50 degrees, giving installers a degree of flexibility around the nominal 45 deg. angle.
- What fasteners are required to install the SUR414?
- The SUR414 should be installed with 16d common nails. The hanger features angled nail slots that help direct nails for proper installation.
- What corrosion protection does the SUR414 offer?
- The SUR414 is coated with a Zinc Galvanized G90 finish, which provides extra corrosion resistance, making it suitable for use in demanding construction environments.
Note: Product dimensions and/or screw or nail holes may differ from picture. See item description for specifications.
