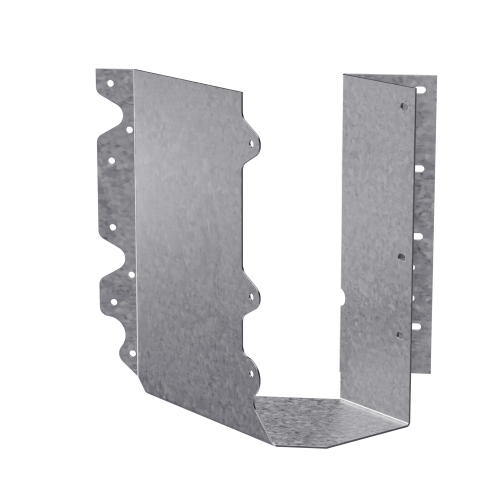

The Simpson SUR410 Joist Hanger Skewed Right for 4x10 from Simpson is engineered to create a precise 45 deg. angled connection between a joist and header in wood framing applications. Built from 16-gauge steel with a G90 galvanized coating, this right-skewed hanger delivers the structural reliability and corrosion resistance needed for demanding framing conditions. Whether you are working with 4x10 or 4x12 lumber, the SUR410 provides a purpose-built solution for angled framing layouts where a standard straight hanger simply will not work.

Key Features

• Skewed right (SUR) orientation - purpose-built for right-hand angled framing layouts, eliminating the need to field-modify a standard hanger and ensuring a code-compliant connection from the start.
• Accommodates a 40 deg. to 50 deg. skew - provides a degree of flexibility during installation so minor framing variations do not require a different hanger or rework.
• Square cut or bevel cut joist end accepted - reduces jobsite prep time because the joist does not need to be cut at a precise angle before installation.
• Angled nail slots direct nails for proper installation - guides fastener placement automatically, helping achieve a secure, correctly loaded connection without guesswork.
• Fits nominal 4x10 or 4x12 joist sizes - supports two common lumber dimensions in a single hanger, adding versatility across different framing scenarios.
• Made from 16-gauge steel - delivers the structural integrity required for load-bearing joist and header connections in residential and light commercial framing.
• G90 zinc galvanized coating - provides enhanced corrosion resistance, making this hanger a dependable choice in moisture-prone or treated-lumber environments.

Why This Product

• Engineered for angled framing - the SUR410 is specifically designed to handle 45 deg. right-skewed connections between joists and headers, making it the correct tool for non-perpendicular framing layouts rather than a workaround.
• Installation flexibility built in - the 40 deg. to 50 deg. skew tolerance combined with square or bevel cut compatibility means fewer field complications and faster framing even when conditions are not perfectly uniform.
• Corrosion-resistant construction for long-term performance - the G90 galvanized finish helps protect the hanger against moisture and corrosive conditions, supporting the long-term integrity of the structural connection.
• Backed by a trusted structural connector brand - Simpson is a recognized name in engineered structural connectors, and the SUR410 is made in the United States from 16-gauge steel to consistent manufacturing standards.

Specifications

• MPN: SUR410
• Brand: Simpson Strong-Tie
• Member Size: 4x10 or 4x12
• Acute Flange Length: 2-3/8 in.
• Obtuse Flange Length: 1 in.
• Gauge: 16
• Coating/Finish: Zinc Galvanized, G90
• W: 3-9/16 in.
• H: 8-1/2 in.
• B: 2-5/8 in.
• Skew Direction: Right
• Installation Fasteners: 16d common nails (sold separately)
• Country of Origin: United States

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What does "SUR" stand for, and how does it differ from the SUL?

SUR stands for "skewed right," meaning the hanger is angled 45 deg. to the right to connect a joist to a header. The SUL version is identical in design but skewed 45 deg. to the left. The two are otherwise interchangeable in terms of construction and load specifications.

What range of skew angles does the SUR410 accommodate?

The SUR410 will normally accommodate a 40 deg. to 50 deg. skew, giving installers a degree of flexibility when framing angles are not perfectly at 45 deg..

Does the joist need to be cut at a specific angle before installation?

No. The joist end may be square cut or bevel cut, offering flexibility during installation without requiring precise angled cuts on the lumber.

What fasteners are required to install the SUR410?

Install with 16d common nails. The hanger features angled nail slots that direct nails for proper installation, helping ensure a secure and code-compliant connection.

Note: Product dimensions and/or Screw or Nail holes may differ from picture. See item description for specifications.
