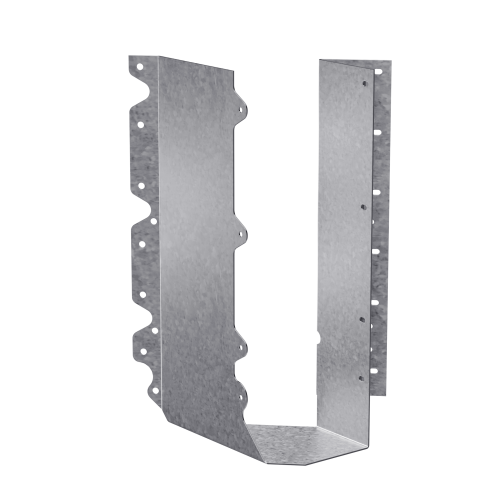

The Simpson SUR46 Joist Hanger Skewed Right for 4x6 is a 45 deg. right-skewed joist hanger from Simpson, engineered to create reliable angled framing connections where joists meet a header or beam at a non-perpendicular angle. Designed for use with both solid sawn and engineered wood products, this hanger delivers a precise, load-bearing connection in wood construction applications where standard straight hangers simply will not work.

Key Features

• 45 deg. right-skewed design - provides an accurate angled connection for non-perpendicular framing layouts, eliminating the need to modify or fabricate a custom connector on the job site
• U-shaped hanger encapsulates the top flange of the joist - web stiffeners are not required for standard installation, simplifying the process and reducing hardware needs
• Compatible with solid sawn and engineered wood products - gives builders flexibility across a wide range of common framing materials used in residential and light commercial wood construction
• 16-gauge steel construction - provides dependable load-bearing strength suited to demanding structural framing applications
• Zinc Galvanized G90 coating - delivers corrosion resistance to help maintain structural integrity in moisture-exposed framing environments

Why This Product

• Purpose-built for angled framing - the 45 deg. right skew addresses a specific framing challenge that straight hangers cannot solve, making this hanger an essential connector for hip roofs, angled deck framing, and similar non-perpendicular structural layouts
• Simplified installation without extra hardware - because the U-shaped design eliminates the need for web stiffeners during standard installation, contractors and builders can complete connections faster with fewer components
• Broad material compatibility - support for both solid sawn and engineered wood products means this hanger integrates smoothly into modern framing projects that mix lumber types
• Domestic manufacturing from a trusted connector brand - produced by Simpson, a name widely recognized in structural connectors, and made in the United States, supporting consistent quality standards for structural framing applications

Specifications

• Model Number: SUR46
• Skew: Right (45 degrees)
• Gauge (Ga.): 16
• W: 3-9/16 in.
• H: 4-3/4 in.
• B: 2-5/8 in.
• Coating/Material: Zinc Galvanized, G90
• Installation Fasteners Required: 16d common nails (sold separately)
• Acute Flange Length: 2-3/8 in.
• Obtuse Flange Length: 1 in.
• Country of Origin: United States

Options

Contact us for Configurable Options and Special orders

Frequently Asked Questions

What is the difference between the SUR and SUL hanger?

The SUR and SUL hangers are identical in design except for the direction of their 45-degree skew. The SUR is skewed 45 degrees to the right, while the SUL is skewed 45 degrees to the left. Choose based on the direction your framing angle requires.

Are web stiffeners required when installing the SUR46?

No. The U-shaped design of the SUR46 encapsulates the top flange of the joist, so web stiffeners are not required for standard installation.

What fasteners are required to install the SUR46?

Installation requires 16d common nails as specified for this hanger.

What types of lumber is the SUR46 compatible with?

The SUR46 is designed to support both solid sawn and engineered wood products used in wood construction applications.

Note: Product dimensions and/or Screw or Nail holes may differ from picture. See item description for specifications.
