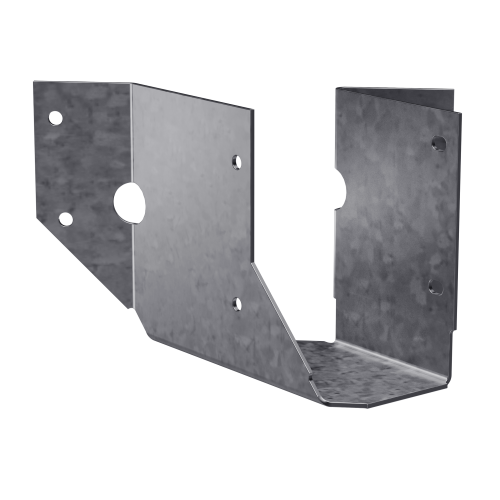

The Simpson SUR26Z SUR ZMAX Galvanized Joist Hanger for 2x6, Skewed Right by Simpson Strong-Tie is a 45 deg.-skewed joist hanger engineered to support solid sawn and engineered wood products in wood construction. This U-shaped hanger encapsulates the top flange of the joist, eliminating the need for web stiffeners in standard installation, while its ZMAX galvanized coating delivers superior corrosion resistance for exterior and treated-wood applications.
Key Features
- SUR = skewed right, designed with a fixed 45 deg. right skew for precise framing connections
- Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
- These hangers cannot be modified but will accommodate a 40 deg. to 50 deg. skewed joist
- Available with the acute flange turned in to accommodate end-of-wall installation for solid sawn sizes only (SURC or SULC)
- Seat width: 1-9/16 inches
- Nominal joist size: 2x6 or 2x8
- Made from 16-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
- No web stiffeners required for standard installation
- Made in the United States
Specifications
- Model Number: SUR26Z
- Skew: Right (45 deg.)
- Gauge: 16
- Seat Width (W): 1-9/16 in.
- Height (H): 5 in.
- Base (B): 2 in.
- Member Size: 2x6 or 2x8
- Acute Flange Length: 1-5/16 in.
- Obtuse Flange Length: 1-1/8 in.
- Coating/Finish: ZMAX
- Country of Origin: United States
- Installation Fasteners: Install with (6) 0.162 x 3-1/2-in. nails in the face and (6) 0.148 x 1-1/2-in. nails in the joist, OR (12) #9 x 1-1/2-in. Strong-Drive SD Connector screws (SD9112) (sold separately)
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What does "SUR" mean, and how does it differ from the SUL?
- SUR stands for skewed right. The SUR and SUL hangers are identical in design except that the SUR is skewed 45 deg. to the right and the SUL is skewed 45 deg. to the left. Choose the model that matches the direction of your skewed joist application.
- Can the SUR26Z be field-modified to adjust the skew angle?
- No. These hangers cannot be modified in the field. However, the SUR26Z will accommodate a joist skewed anywhere between 40 deg. and 50 deg., providing a small degree of flexibility around the fixed 45 deg. design angle.
- Why does the SUR26Z feature ZMAX galvanization instead of standard galvanization?
- ZMAX galvanization offers extra corrosion resistance, making the SUR26Z suitable for exterior applications and installations involving treated wood, where standard coatings may degrade more quickly due to exposure to moisture and preservative chemicals.
- Are web stiffeners required when installing the SUR26Z?
- No. Because the SUR26Z is a U-shaped hanger that encapsulates the top flange of the joist, web stiffeners are not required for standard installation, simplifying the installation process.
Note: Product dimensions and/or screw or nail holes may differ from picture. See item description for specifications.
