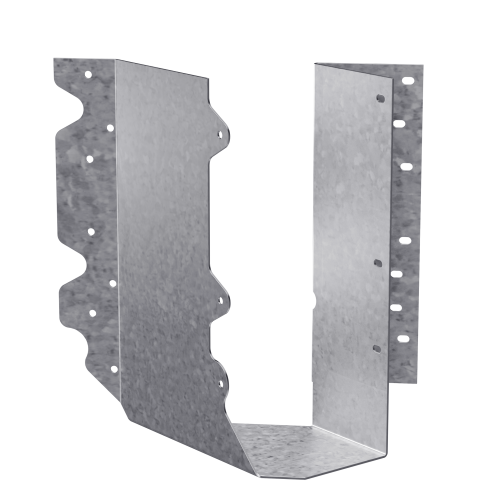

The Simpson SUR210-2 Joist Hanger Skewed Right for Double 2x10 is a purpose-built framing connector from Simpson that creates a reliable 45 deg. angled connection between a joist and a header in wood-framed construction. Formed from 16-gauge steel with a G90 zinc galvanized finish, this skewed right hanger is engineered for double 2x10 or 2x12 framing members and suits applications where a near-45 deg. offset between structural members is required - such as hip roofs, angled deck framing, and non-rectangular floor layouts. Angled nail slots and flexible joist-end cutting requirements make for a straightforward installation wherever a skewed right connection is called for.

Key Features

• Skewed right (SUR) orientation - positions the joist at a 45 deg. angle to the right of the header, making this hanger the correct choice for right-hand angled framing applications without requiring field modification.
• Accommodates a 40 deg. to 50 deg. skew range - gives installers a workable degree of tolerance around the 45 deg. nominal angle, reducing the need for precision layout in the field.
• Square cut or bevel cut joist end accepted - eliminates the requirement for an angled saw cut on the lumber, saving time and simplifying installation.
• Angled nail slots direct nails for proper installation - guides fasteners into the correct position automatically, supporting a secure, code-consistent connection without guesswork.
• 16-gauge steel construction - provides the structural strength needed to carry double 2x10 or 2x12 joist loads in demanding framing conditions.
• G90 zinc galvanized finish - delivers a corrosion-resistant coating suited for treated lumber and outdoor or moisture-exposed framing environments.

Why This Product

• Engineered for angled framing right out of the box - unlike field-skewable hangers that require bending or adjustment on the job site, this hanger arrives pre-formed at a 45 deg. skew right angle, ensuring consistent geometry and a faster install for hip roofs, angled decks, and offset floor systems.
• Flexible joist preparation saves labor - because the SUR210-2 accepts both square cut and bevel cut joist ends, framers are not locked into a specific cutting method, which reduces setup time and material waste on angled framing projects.
• Trusted corrosion resistance for long-term performance - the G90 zinc galvanized coating provides meaningful protection against rust and corrosion, making this hanger a dependable choice in covered outdoor structures, decks, and other applications where moisture exposure is a concern.
• Built-in nail guidance for consistent connections - the angled nail slots do the alignment work for the installer, helping ensure that every fastener lands in the right position for a strong, reliable joist-to-header connection every time.

Specifications

• Model Number: SUR210-2
• Skew Direction: Right
• Member Size: Double 2x10 or 2x12
• Acute Flange Length: 2-3/8 in.
• Obtuse Flange Length: 1-7/16 in.
• Gauge: 16
• Width (W): 3-1/8 in.
• Height (H): 8-11/16 in.
• Base (B): 2-5/8 in.
• Coating/Finish: Zinc Galvanized, G90
• Installation Fasteners: 16d common nails and 16d x 2-1/2 in. nails (sold separately)
• Country of Origin: United States

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What does "SUR" mean in the product name?

SUR stands for "skewed right," indicating that this hanger is designed to create a 45 deg. connection angled to the right between a joist and a header. Its counterpart, the SUL, is skewed to the left.

What range of skew angles does the SUR210-2 accommodate?

The SUR210-2 will normally accommodate a 40 deg. to 50 deg. skew, making it suitable for framing situations that require a near-45 deg. angle between the joist and the header.

Does the joist end need to be cut at a specific angle for installation?

No. The joist end may be either square cut or bevel cut, providing flexibility during installation without requiring a precise angled cut on the lumber.

What fasteners are required to install the SUR210-2?

Installation requires 16d common nails and 16d x 2-1/2 in. nails. The hanger features angled nail slots that direct nails into the proper position for a secure and code-compliant connection.

Note: Product dimensions and/or screw or nail holes may differ from picture. See item description for specifications.
