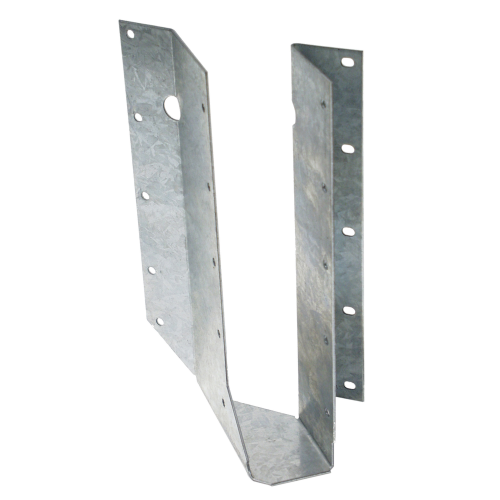

The Simpson SUR210 Joist Hanger Skewed Right for 2x10 is a precision-engineered framing connector from Simpson designed to create a reliable 45 deg. angled connection between a joist and a header wherever a right-skewed layout is required. Formed from 16-gauge steel and finished with a G90 zinc galvanized coating for extra corrosion resistance, this hanger provides solid support underneath the joist, rafter, or beam in wood framing applications where a standard straight hanger simply will not work.

Key Features

• Skewed right (SUR) at 45 deg. - purpose-built for right-hand angled framing connections, eliminating the guesswork of adapting a straight hanger to an angled layout
• Accommodates a 40 deg. to 50 deg. skew range - gives installers flexibility when framing angles fall slightly off a strict 45 deg., reducing the need for custom fabrication
• Square cut or bevel cut joist end accepted - no precise angled cut on the joist is required, saving time and reducing material waste during installation
• Angled nail slots direct nails for proper installation - guides fasteners into the correct position automatically, promoting consistent, code-compliant connections every time
• Fits nominal 2x10 or 2x12 joist members - versatile sizing means a single hanger model works across two common lumber dimensions in the same framing project
• 16-gauge steel construction - provides the structural rigidity needed to carry joist loads at an angle without flexing or distorting under stress
• G90 zinc galvanized finish - the added zinc coating delivers extra corrosion resistance, making this hanger suitable for outdoor and moisture-exposed framing environments

Why This Product

• Engineered specifically for angled framing - rather than forcing a workaround with a straight hanger, the SUR210 is built from the ground up to handle right-skewed connections at 45 deg., ensuring a structurally sound and clean installation
• Built-in installation guidance reduces errors - the angled nail slots take the uncertainty out of fastener placement, helping both experienced framers and first-time installers drive nails correctly the first time
• Extra corrosion protection for demanding environments - the G90 zinc galvanized coating goes beyond basic rust resistance, making this hanger a dependable choice for decks, outdoor structures, and other applications where moisture exposure is a concern
• Flexibility in both angle and joist cut - the 40 deg. to 50 deg. skew tolerance combined with acceptance of square or bevel cut joists gives framers real-world adaptability without sacrificing connection integrity

Specifications

• Model Number: SUR210
• Skew Direction: Right
• Gauge: 16
• Member Size: 2x10 or 2x12
• Width (W): 1-9/16 in.
• Obtuse Flange Length: 1-1/8 in.
• Acute Flange Length: 1-5/16 in.
• Height (H): 8-3/16 in.
• Seat Depth: 2 in.
• Coating/Finish: Zinc Galvanized, G90
• Country of Origin: United States
• Installation Fasteners: 16d common nails in the header and 10d x 1-1/2 in. nails in the joist (sold separately)

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What does "SUR" stand for and how does it differ from "SUL"?

SUR stands for skewed right. The SUR and SUL hangers are identical in design except that the SUR is skewed 45 deg. to the right while the SUL is skewed 45 deg. to the left, making each suited for its respective framing orientation.

What range of skew angles does the SUR210 accommodate?

These hangers will normally accommodate a 40 deg. to 50 deg. skew, making them suitable for connections that fall within that angular range rather than a strict 45 deg. only.

Does the joist need to be cut at a specific angle to fit this hanger?

No. The joist end may be square cut or bevel cut, providing flexibility during installation without requiring a precise angled cut on the joist.

What fasteners are required to install the SUR210?

Installation requires 16d common nails in the header and 10d x 1-1/2 in. nails in the joist. The hanger features angled nail slots that direct nails for proper installation.

Note: Product dimensions and/or screw or nail holes may differ from picture. See item description for specifications.
