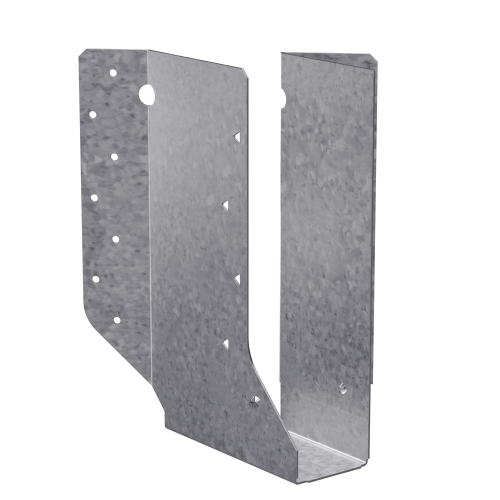

Simpson SUR2.06/9 SUR Galvanized Joist Hanger for 2 in. x 9-1/2 in. Engineered Wood, Skewed Right is a 45 deg.-skewed hanger from Simpson Strong-Tie engineered to support solid sawn and engineered wood products in wood construction. Its U-shaped design encapsulates the top flange of the joist, eliminating the need for web stiffeners during standard installation and delivering a strong, reliable connection beneath the joist, rafter, or beam.

Key Features

• SUR = skewed right - skewed 45 deg. to the right for precise angled framing connections
• Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
• Cannot be modified but will accommodate a 40 deg. to 50 deg. skewed joist
• Features positive-angle nailing for engineered wood sizes to prevent wood splitting and to speed installation

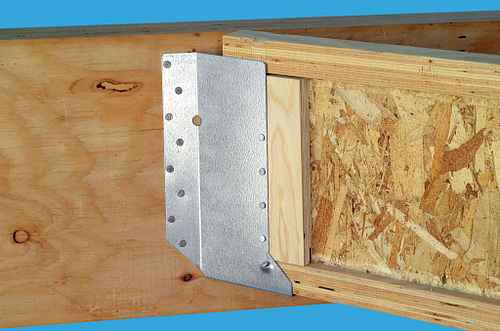

• U-shaped design encapsulates the top flange of the joist - no web stiffeners required for standard installation
• Made from 16-gauge steel for structural integrity
• Galvanized (G90) for corrosion resistance
• Made in the United States

Specifications

• Model Number: SUR2.06/9
• Skew: Right (45 deg.)
• Joist Size: 2 in. x 9-1/2 in.
• Seat Width (W): 2-1/16 in.
• Height (H): 9-1/16 in.
• Base (B): 3-3/16 in.
• Gauge: 16
• Coating/Finish: Zinc Galvanized, G90
• Member Size: 2 in. x 9-1/2 in.
• Acute Flange Length: 2-1/8 in.
• Obtuse Flange Length: 1-5/8 in.
• Country of Origin: United States

Approved Applications

• Solid sawn wood framing connections requiring a 45 deg. right-skewed hanger
• Engineered wood product installations in wood construction
• Joist, rafter, and beam connections where a skewed angle between 40 deg. and 50 deg. is required

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What is the difference between the SUR and SUL hangers?

The SUR and SUL hangers are identical in design except for the direction of their skew. The SUR is skewed 45 deg. to the right, while the SUL is skewed 45 deg. to the left. Choose the model that matches the direction of your framing angle.

Can the SUR2.06/9 be field-modified to adjust the skew angle?

No. These hangers cannot be modified in the field. However, the SUR2.06/9 is designed to accommodate a joist skewed anywhere between 40 deg. and 50 deg., providing some flexibility without requiring alteration.

What fasteners are required to install the SUR2.06/9?

Install with (14) 0.162 x 3-1/2 in. nails in the face and (2) 0.148 x 1-1/2 in. nails in the joist, OR (16) #9 x 1-1/2 in. Strong-Drive SD Connector screws (SD9112).

Are web stiffeners required when using the SUR2.06/9?

No. Because the U-shaped design encapsulates the top flange of the joist, no web stiffeners are required for standard installation, simplifying the installation process.
