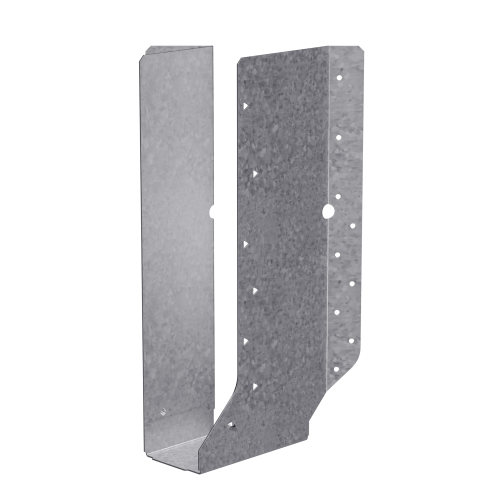

The Simpson SUL2.56/14 SUL Galvanized Joist Hanger for 2-1/2 in. x 14 in. Engineered Wood, Skewed Left from Simpson is a 45 deg.-skewed, U-shaped connector engineered to deliver strong, reliable support for solid sawn and engineered wood products in wood construction. Designed specifically for left-skewed framing connections, this hanger encapsulates the top flange of the joist, eliminating the need for web stiffeners in standard installations and simplifying the overall build process. Its positive-angle nailing design and obround nail holes on the acute side make it a practical, time-saving choice for demanding framing applications.

Key Features

• Skewed left (SUL) at 45 deg. - provides a precisely angled connection for left-skewed framing layouts where a standard straight hanger will not work
• Accommodates a 40 deg. to 50 deg. skew range without modification - gives installers a practical degree of flexibility around the nominal angle without any field alterations
• Obround nail holes on the acute side - allow nails to be driven parallel to the joist, making fastening easier and faster in tight framing conditions
• Positive-angle nailing for engineered wood sizes - reduces the risk of wood splitting during installation and speeds up the nailing process on the job site
• U-shaped design encapsulates the top flange of the joist - eliminates the need for web stiffeners in standard installations, saving materials and labor
• Made from 16-gauge steel with a G90 zinc galvanized finish - delivers corrosion resistance suited for use with treated lumber and in moisture-prone framing environments
• Compatible with two fastener options - accepts either nails or Strong-Drive SD Connector screws, giving contractors flexibility based on their preferred installation method

Why This Product

• Built for precision skewed framing - the fixed 45 deg. left-skew design targets a very specific and common framing challenge, ensuring a correct, load-rated connection without improvising with a straight hanger or field-bending hardware
• No web stiffeners required - the U-shaped encapsulating design removes an entire step and set of materials from standard installation, reducing cost and time on the job site
• Engineered wood ready with split-prevention nailing - positive-angle nailing geometry protects LVL and other engineered members from damage during fastening, preserving the integrity of costly structural materials
• Corrosion-resistant G90 galvanized finish - provides durable protection in demanding environments, making this hanger a dependable long-term component in wood-framed structures

Specifications

• Model Number: SUL2.56/14
• Skew Direction: Left (45 deg.)
• Member Size: 2-1/2 in. x 14 in. (or) 2-1/2 in. x 16 in.
• Acute Flange Length: 2-1/8 in.
• Obtuse Flange Length: 1-1/8 in.
• Seat Width (W): 2-9/16 in.
• Height (H): 13-5/16 in.
• B Dimension: 3-3/16 in.
• Gauge: 16
• Coating/Finish: Zinc Galvanized, G90
• Country of Origin: United States
• Installation Fasteners: Install with (18) 0.162 x 3-1/2 in. nails in the face and (2) 0.148 x 1-1/2 in. nails in the joist, OR (20) #9 x 1-1/2 in. Strong-Drive SD Connector screws (SD9112) (sold separately)

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What is the difference between the SUR and SUL hangers?

The SUR and SUL hangers are identical in design except for their skew direction. The SUR is skewed 45 deg. to the right, while the SUL is skewed 45 deg. to the left. Select the SUL2.56/14 when your framing application requires a left-skewed connection.

Can the SUL2.56/14 be field-modified to adjust the skew angle?

No. These hangers cannot be modified in the field. However, they are designed to accommodate a joist skewed anywhere between 40 deg. and 50 deg., providing a small range of flexibility around the nominal 45 deg. angle.

Does this hanger require web stiffeners during standard installation?

No. The U-shaped design encapsulates the top flange of the joist, so no web stiffeners are required for standard installation, simplifying the installation process.

What fasteners are required to install the SUL2.56/14?

Install with (18) 0.162 x 3-1/2 in. nails in the face and (2) 0.148 x 1-1/2 in. nails in the joist, OR (20) #9 x 1-1/2 in. Strong-Drive SD Connector screws (SD9112).

Note: Product dimensions and/or screw or nail holes may differ from picture. See item description for specifications.
