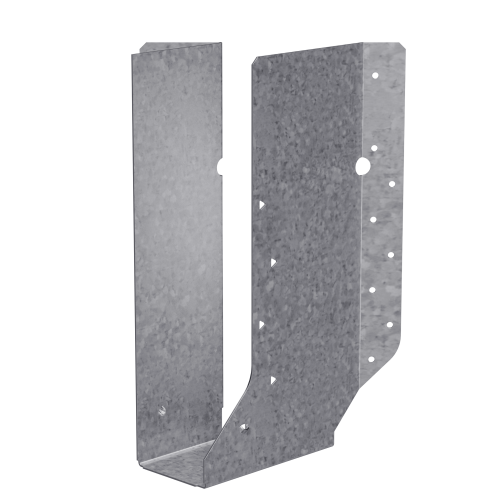

The Simpson SUL2.56/11 SUL Galvanized Joist Hanger for 2-1/2 to 2-9/16 in. x 11-1/4 to 11-7/8 in. Engineered Wood, Skewed Left by Simpson Strong-Tie is a 45 deg.-skewed U-shaped hanger engineered to support solid sawn and engineered wood products in wood construction. Designed to encapsulate the top flange of the joist, this hanger eliminates the need for web stiffeners during standard installation, delivering a strong, reliable connection at a precise left-hand skew.

Key Features

• SUL = skewed left - designed for 45 deg. left-skewed joist connections
• Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
• These hangers cannot be modified but will accommodate a 40 deg. to 50 deg. skewed joist
• Features positive-angle nailing for engineered wood sizes to prevent wood splitting and to speed installation
• U-shaped profile encapsulates the top flange of the joist - no web stiffeners required for standard installation
• Seat width: 2-9/16 in.
• Joist size: 2-1/2 to 2-9/16 in. x 11-1/4 to 11-7/8 in.
• Made from 16-gauge steel for durability and structural integrity
• Galvanized (G90) finish for corrosion resistance

Specifications

• MPN: SUL2.56/11
• Brand: Simpson Strong-Tie
• Skew Direction: Left
• Member Size: 2-1/2 to 2-9/16 in. x 11-1/4 to 11-7/8 in.
• Width (W): 2-9/16 in.
• Obtuse Flange Length: 1-1/8 in.
• Acute Flange Length: 2-1/8 in.
• Height (H): 11-3/16 in.
• Seat Depth: 3-3/16 in.
• Seat Width: 2-9/16 in.
• Gauge: 16
• Coating/Finish: Zinc Galvanized, G90
• Country of Origin: United States
• Installation Fasteners: Install with (16) 0.162 x 3-1/2 in. nails in the face and (2) 0.148 x 1-1/2 in. nails in the joist, OR (18) #9 x 1-1/2 in. Strong-Drive SD Connector screws (SD9112) (sold separately)

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What does "SUL" mean and how does it differ from the SUR?

SUL stands for skewed left. The SUR and SUL hangers are identical in design except that they are skewed 45 deg. to the right (SUR) and the left (SUL), respectively. Always confirm the required skew direction before selecting your hanger.

Can the SUL2.56/11 be modified on-site to fit different skew angles?

No. These hangers cannot be modified. However, they are designed to accommodate a joist skewed anywhere between 40 deg. and 50 deg., providing a degree of flexibility within that range without any field alterations.

What fasteners are required to install the SUL2.56/11?

Install with (16) 0.162 x 3-1/2 in. nails in the face and (2) 0.148 x 1-1/2 in. nails in the joist, OR (18) #9 x 1-1/2 in. Strong-Drive SD Connector screws (SD9112).

Why does this hanger feature obround nail holes on the acute side?

The obround nail holes on the acute side are specifically designed to allow nails to be easily installed parallel to the joist, simplifying the installation process and helping achieve a secure, code-compliant connection even in tight skewed-angle configurations.

Note: Product dimensions and/or Screw or Nail holes may differ from picture. See item description for specifications.
