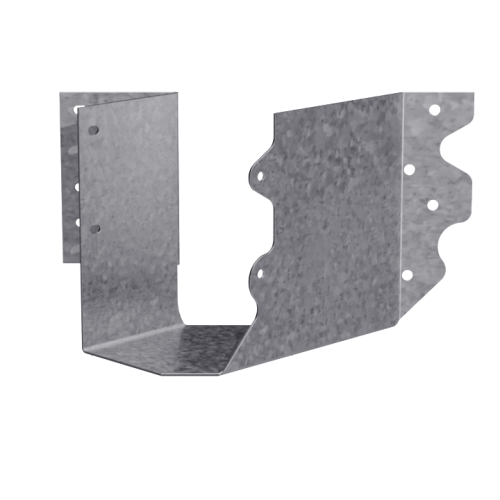

The Simpson SUL26Z SUL ZMAX Galvanized Joist Hanger for 2x6, Skewed Left is a 45 deg.-skewed connector from Simpson engineered to support solid sawn and engineered wood products in wood-frame construction. Its U-shaped design encapsulates the top flange of the joist, eliminating the need for web stiffeners during standard installation and delivering a strong, reliable connection at left-hand angled framing intersections. The ZMAX galvanized coating provides enhanced corrosion resistance, making this hanger a dependable choice for exterior framing and applications involving pressure-treated lumber.

Key Features

• Skewed left at 45 deg. - purpose-built for left-side angled joist connections, so no field-bending or guesswork is needed to achieve the correct orientation
• Accommodates a 40 deg. to 50 deg. skew range - provides a practical degree of flexibility around the nominal angle, allowing the hanger to fit real-world framing conditions without modification
• Obround nail holes on the acute side - allow nails to be driven parallel to the joist, making fastening in tight or angled spaces noticeably easier and faster
• U-shaped design encapsulates the top flange of the joist - no web stiffeners are required for standard installation, reducing material needs and simplifying the build process
• Made from 16-gauge steel - delivers structural strength and durability appropriate for load-bearing joist and rafter connections
• ZMAX galvanized coating - offers extra corrosion resistance beyond standard galvanized finishes, making this hanger well-suited for exterior decks, covered porches, and framing assemblies using treated lumber
• Compatible with both nail and screw fastening - can be installed with face nails and joist nails, or with Strong-Drive SD Connector screws, giving contractors flexibility to match their preferred fastening method

Why This Product

• Engineered specifically for left-skewed framing - rather than adapting a straight hanger to an angled application, the SUL26Z is purpose-designed at 45 deg. skewed left, ensuring a proper structural fit and predictable load transfer for diagonal joist layouts
• ZMAX coating extends service life in demanding environments - the elevated corrosion resistance of the ZMAX finish makes this hanger a reliable long-term choice wherever moisture, outdoor exposure, or chemically treated wood would compromise a standard galvanized connector
• Simplified installation with no web stiffeners or field modification required - the encapsulating U-shape and fixed skew angle mean fewer extra components and less on-site adjustment, saving time during framing
• Supports both solid sawn and engineered wood products - versatile enough to work across a range of common framing materials, making it a practical fit for a variety of residential and light commercial wood construction projects

Specifications

• MPN: SUL26Z
• Skew: Left
• Gauge: 16
• Seat Width (W): 1-9/16 in.
• Height (H): 5 in.
• Width (B): 2 in.
• Nominal Member Size: 2x6 or 2x8
• Acute Flange Length: 1-5/16 in.
• Obtuse Flange Length: 1-1/8 in.
• Coating/Finish: ZMAX
• Installation Fasteners: Install with (6) 0.162 x 3-1/2-in. nails in the face and (6) 0.148 x 1-1/2-in. nails in the joist, OR (12) #9 x 1-1/2-in. Strong-Drive SD Connector screws (SD9112) (sold separately)
• Country of Origin: United States

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What does "SUL" mean, and how does it differ from the SUR?

SUL stands for skewed left. The SUR and SUL hangers are identical except that they are skewed 45 deg. to the right (SUR) and the left (SUL), respectively. Be sure to select the correct orientation for your specific framing application before ordering.

Does this hanger require web stiffeners during installation?

No. The U-shaped design encapsulates the top flange of the joist, so no web stiffeners are required for standard installation.

Can the SUL26Z be field-modified to adjust the skew angle?

No, these hangers cannot be modified. However, the SUL26Z will accommodate a joist skewed anywhere from 40 deg. to 50 deg., providing a small range of flexibility around the nominal 45 deg. angle.

Why is ZMAX coating recommended for this application?

ZMAX galvanization offers extra corrosion resistance compared to standard galvanized finishes, making it well-suited for exterior applications and installations involving treated wood, where standard coatings may be more susceptible to corrosion over time.

Note: Product dimensions and/or screw or nail holes may differ from picture. See item description for specifications.
