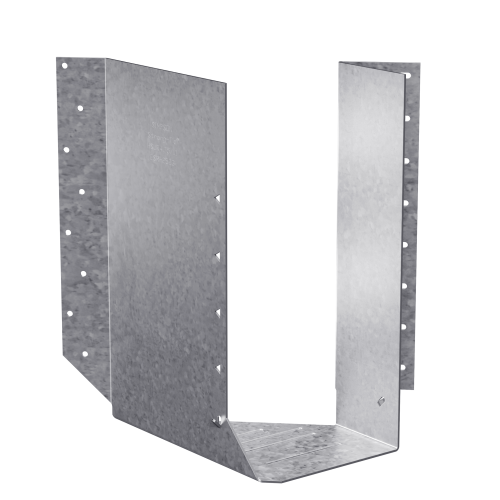

The Simpson HSUR ZMAX Galvanized Joist Hanger for 4x10, Skewed Right is a 14-gauge steel framing connector engineered by Simpson Strong-Tie to create a strong 45 deg. connection between a joist and a header where a right-hand skewed angle is required. Built for 4x10 nominal lumber, this hanger supports the joist from underneath to deliver a secure, load-bearing connection in wood framing applications that demand precision angling. ZMAX galvanization provides extra corrosion resistance, making it a dependable choice for exterior builds and projects involving treated wood.

Key Features

• HSUR skewed-right configuration - designed specifically for right-hand angled framing conditions, eliminating the guesswork of field-modifying a standard hanger
• Accommodates joists skewed 40 to 50 deg. - provides a workable tolerance range around the 45 deg. nominal angle so minor field variations do not require a separate hanger
• Angled nail slots direct nails for proper installation - guides fasteners into the correct position automatically, reducing installation errors and saving time on the job
• Square cut or bevel cut joist end accepted - gives framers flexibility in how they prepare the lumber without sacrificing connection integrity
• 14-gauge steel construction - delivers the structural strength needed for load-bearing joist-to-header connections in demanding framing applications
• ZMAX galvanization - offers extra corrosion resistance compared to standard galvanized coatings, making this hanger well-suited for exterior applications and use with treated wood where moisture or chemical exposure is a concern
• Installs with 16d common nails - a widely available fastener size keeps material sourcing straightforward and installation familiar to most framing crews

Why This Product

• Purpose-built for right-skewed framing layouts - rather than adapting a straight hanger, this connector is manufactured specifically for 45 deg. right-hand connections, giving you a cleaner, code-consistent result without field modifications
• ZMAX coating adds a meaningful layer of durability - for decks, pergolas, and other exterior structures or any project using pressure-treated lumber, the enhanced corrosion resistance helps the connection hold up over time in harsh conditions
• Flexible joist-end cutting options reduce rework - because the hanger accepts both square-cut and bevel-cut joist ends, framers can adapt to site conditions without cutting additional material or sourcing a different product
• Trusted Simpson Strong-Tie engineering - angled nail slots and precise geometry work together to guide correct fastener placement, supporting a strong, properly loaded connection from the start

Specifications

• MPN: HSUR410Z
• Member Size: 4x10
• Width (W): 3-9/16 in.
• Obtuse Flange Length: 1 in.
• Acute Flange Length: 2-3/16 in.
• Height (H): 8-1/2 in.
• Seat Depth: 2-7/16 in.
• Gauge: 14
• Coating / Finish: ZMAX
• Skew Direction: Right
• Install With: 16d common nails
• Country of Origin: United States

Options

Available with the A2 (acute) flange turned in to accommodate end-of-wall installation for solid sawn sizes only - see HSURC or HSULC.

For configurable options and special orders, Contact us.

Frequently Asked Questions

What angle does the HSUR410Z create between the joist and the header?

The HSUR410Z is designed to provide a 45 deg. connection between a joist and a header, and it can accommodate joists skewed anywhere from 40 to 50 degrees.

What is the difference between HSUR and HSUL hangers?

HSUR hangers are skewed to the right, while HSUL hangers are skewed to the left. Both create the same 45 deg. angled connection but are mirror images of each other for opposite-hand applications.

Why is ZMAX galvanization important for this hanger?

ZMAX galvanization provides an extra layer of corrosion resistance compared to standard galvanized coatings, making the HSUR410Z well-suited for exterior applications and installations involving treated wood where moisture or chemical exposure is a concern.

Does the joist need to be cut at a specific angle for installation?

No. The joist end may be either square cut or bevel cut, offering flexibility during installation. The angled nail slots are also built into the hanger to help direct nails properly for a correct and secure connection.
