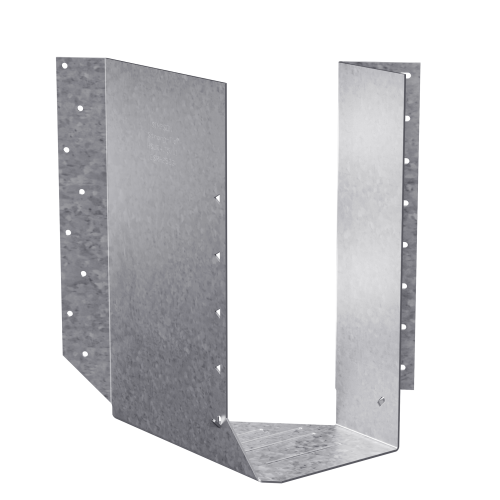

The Simpson Heavy Skewed U-Shaped Joist Hanger Skewed Right is a 45 deg. skewed, heavy-duty hanger engineered by Simpson to deliver reliable angled framing connections in wood construction. Designed to support large solid sawn joist members or double I-joists, the U-shaped profile fully encapsulates the top flange of the joist, creating a structurally sound connection without the added step of installing web stiffeners during standard applications.

Key Features

• 45 deg. right skew design - connects joists to headers at a precise skewed angle, making this hanger the correct choice when your framing layout calls for a right-hand angled connection rather than a square one.
• Heavy U-shaped profile that encapsulates the joist's top flange - eliminates the need for web stiffeners in standard installation, saving time and reducing the number of components required on the job.
• Supports large solid sawn joist members or double I-joists - versatile enough to handle the heavy members common in floor and roof framing, reducing the need to source multiple hanger types for a single project.
• 14-gauge steel construction - provides the heavy-duty load capacity needed for demanding structural applications where a lighter-gauge hanger would not be appropriate.
• Zinc galvanized G90 coating - offers corrosion resistance to help the hanger maintain structural integrity in typical wood framing environments over the long term.
• Available with the A2 acute flange turned in for end-of-wall installation - gives builders flexibility to use the same trusted hanger design in tight end-of-wall conditions on solid sawn sizes, available as the HSURC or HSULC configuration.

Why This Product

• Engineered specifically for right-hand skewed framing - where a standard square hanger simply cannot be used, this 45 deg. skewed right hanger provides a purpose-built solution that fits the connection geometry correctly the first time, reducing field modifications and rework.
• No web stiffeners required for standard installation - the U-shaped design does this work structurally, which means fewer parts to manage on site and a faster installation process without sacrificing connection quality.
• Handles large and double-member joists - contractors working with heavier framing assemblies, including double I-joists, can rely on a single hanger model rather than combining or improvising with smaller hardware.
• Made by Simpson, a trusted name in structural connectors - builders and inspectors recognize Simpson hardware on job sites, which can simplify plan approval and inspection processes for framing connections.

Specifications

• Model Number: HSUR4.12/11
• Skew Direction: Right (45 degrees)
• Gauge: 14
• W (Width): 4-1/8 in.
• H (Height): 11-1/8 in.
• B (Bearing): 3 in.
• Coating/Material: Zinc Galvanized, G90
• Acute Flange Length: 2-3/8 in.
• Obtuse Flange Length: 1-7/16 in.
• Country of Origin: United States

Options

Available with the A2 (acute) flange turned in to accommodate end-of-wall installation for solid sawn sizes only (HSURC or HSULC)

Contact us for Configurable Options and Special orders

Frequently Asked Questions

What is the difference between the HSUR and the HSUL hanger?

The HSUR and HSUL hangers are identical in design except that the HSUR is skewed 45 degrees to the right and the HSUL is skewed 45 degrees to the left. Choosing the correct version depends on the direction of the skewed framing connection at your job site.

Do I need web stiffeners when installing the HSUR4.12/11?

No. The heavy U-shaped design encapsulates the top flange of the joist, so web stiffeners are not required for standard installation.

What types of joists can the HSUR4.12/11 support?

This hanger is designed to support large solid sawn joist members or double I-joists in wood construction applications.

Is there a version of this hanger that accommodates end-of-wall installation?

Yes. For end-of-wall installation on solid sawn sizes, the hanger is available with the A2 (acute) flange turned in. See the HSURC or HSULC models for this configuration.

Related Products

• - Heavy Skewed U-Shaped Hanger with Concealed Flanges for end-of-wall installation

Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
