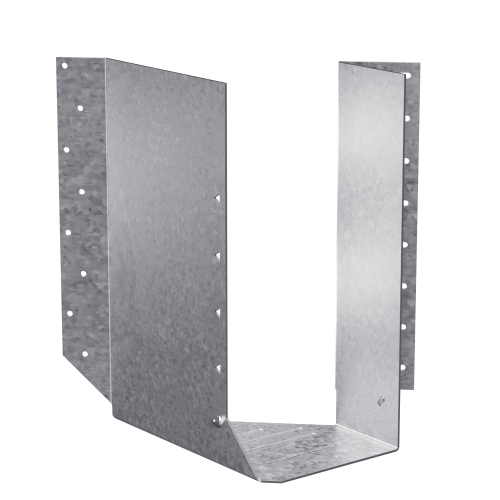

The Simpson Double 2 x 6 Joist Hanger Skewed Right is a heavy-duty, galvanized hanger engineered by Simpson to deliver precise angled joist connections in wood framing applications. Designed specifically for double 2x6 members, its 45 deg. right-hand skew and heavy U-shaped profile make it the purpose-built solution for angled framing assemblies where a standard straight hanger simply will not work.

Key Features

• 45 deg. right-hand skew design - allows secure, code-consistent connections at angled framing intersections without custom fabrication or field modification
• Heavy U-shaped profile encapsulates the top flange of the joist - eliminates the need for web stiffeners in standard installations, saving time and reducing hardware costs on the jobsite
• Sized for double 2x6 members and large joist applications - provides the correct bearing width and geometry to properly support doubled lumber and large joist configurations without improvising
• 14-gauge steel construction - delivers the structural capacity and rigidity expected in heavy-duty wood construction framing connections
• Zinc galvanized G90 coating - provides corrosion resistance suitable for typical wood framing environments, protecting the connection over the life of the structure

Why This Product

• Built for a specific job no standard hanger can do - the 45 deg. skewed right configuration is purpose-engineered for angled framing layouts, meaning the geometry is already built in and no field bending or adaptation is needed
• Simplifies installation by eliminating extra hardware - because the U-shaped profile fully encapsulates the joist's top flange, web stiffeners are not required for standard installations, reducing both labor and material on the project
• Domestic manufacturing from a trusted structural connector brand - made in the United States by Simpson, a brand recognized across the construction industry for engineered connector reliability
• Configuration flexibility for end-of-wall installations - a version with the A2 acute flange turned in is available for solid sawn sizes, making this hanger family adaptable to a wider range of framing conditions

Specifications

• Model Number: HSUR26-2
• Skew: Right (45 degrees)
• Gauge: 14
• W (Width): 3 1/8 in.
• H (Height): 4 15/16 in.
• B (Bearing Width): 2 7/16 in.
• Coating/Material: Zinc Galvanized, G90
• Acute Flange Length: 2-3/16 in.
• Obtuse Flange Length: 1-1/4 in.
• Country of Origin: United States

Options

Available with the A2 (acute) flange turned in to accommodate end-of-wall installation for solid sawn sizes only (HSURC or HSULC)

Contact us for Configurable Options and Special orders

Frequently Asked Questions

What is the difference between the HSUR and HSUL hangers?

The HSUR and HSUL hangers are identical in design and construction except for their skew direction. The HSUR is skewed 45 degrees to the right, while the HSUL is skewed 45 degrees to the left. Choose the appropriate hanger based on the direction of your angled framing connection.

Are web stiffeners required when using the HSUR26-2?

No. The heavy U-shaped design encapsulates the top flange of the joist, so no web stiffeners are required for a standard installation.

What joist members is the HSUR26-2 designed to support?

The HSUR26-2 is designed to support large joist members or double I-joists in wood construction, specifically sized for double 2x6 members.

Is there a version of this hanger designed for end-of-wall installation?

Yes. For end-of-wall installation with solid sawn sizes, a version with the A2 (acute) flange turned in is available - the HSURC or HSULC. See the Related Products section below for more information.

Related Products

• HSURC or HSULC - Heavy Skewed U-Shaped Hanger with Concealed Flanges for end-of-wall installation

Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
