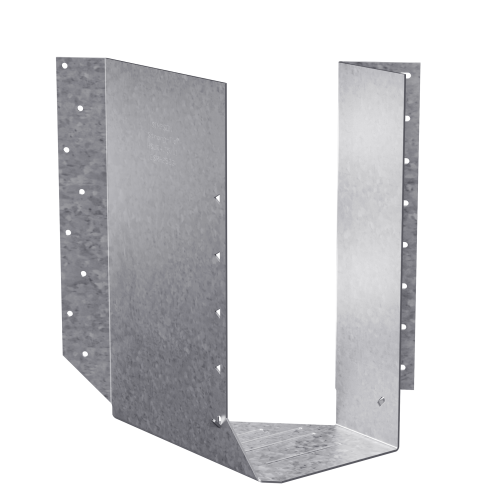

The Simpson 4-1/8 x 9-1/2 Joist Hanger Skewed Right, Galvanized HSUR4.28/9 is a heavy-duty, 45 deg. skewed U-shaped hanger engineered by Simpson to support large joist members or double I-joists in wood-framed construction. Its heavy U-shaped profile fully encapsulates the top flange of the joist, creating a secure and structurally sound angled connection without the added complexity of web stiffeners in standard installations.

Key Features

• 45 deg. right skew design - allows angled joist connections in wood-framed construction where standard straight hangers cannot be used, saving time and simplifying layout on skewed framing plans.
• Heavy U-shaped profile encapsulates the joist top flange - eliminates the need for web stiffeners in standard installations, reducing material costs and speeding up the framing process.
• Supports large joist members or double I-joists - engineered for demanding load-bearing applications where oversized or engineered lumber framing is required.
• 14-gauge steel construction - delivers high-strength, load-bearing performance suited to heavy structural connections in residential and commercial wood construction.
• Zinc Galvanized G90 coating - provides corrosion resistance to protect the hanger's structural integrity over time in typical wood construction environments.
• Option to turn the A2 (acute) flange in - accommodates end-of-wall installation for solid sawn sizes, adding versatility for tight or confined framing conditions without requiring a separate product.

Why This Product

• No web stiffeners required - the heavy U-shaped design handles standard installations without additional hardware, reducing steps on the job site and keeping your framing schedule on track.
• Purpose-built for skewed framing - the 45 deg. right-hand skew makes this hanger the correct solution for angled beam and joist connections that straight hangers simply cannot address, ensuring a code-compliant structural connection.
• Built to handle large and engineered lumber - sized to support large joist members or double I-joists, this hanger is a reliable fit for heavier wood construction assemblies where load transfer matters most.
• American-made quality from Simpson - manufactured in the United States and backed by the engineering standards that have made Simpson a trusted name in structural connectors for wood construction professionals.

Specifications

• Model Number: HSUR4.28/9
• Skew Direction: Right (45 degrees)
• Gauge: 14
• W (Width): 4 5/16 in.
• H (Height): 9 in.
• B (Bearing): 3 in.
• Coating/Material: Zinc Galvanized, G90
• Acute Flange Length: 2-3/8 in.
• Obtuse Flange Length: 1-7/16 in.
• Country of Origin: United States

Options

Available with the A2 (acute) flange turned in to accommodate end-of-wall installation for solid sawn sizes only (HSURC or HSULC)

Contact us for Configurable Options and Special orders

Frequently Asked Questions

What is the difference between the HSUR and HSUL hangers?

The HSUR and HSUL hangers are identical in design except for their skew direction. The HSUR is skewed 45 degrees to the right, while the HSUL is skewed 45 degrees to the left.

Are web stiffeners required when using the HSUR4.28/9?

No. The heavy U-shaped design encapsulates the top flange of the joist, so web stiffeners are not required for standard installation.

What type of joist members is the HSUR4.28/9 designed to support?

This hanger is designed to support large joist members or double I-joists in wood construction applications.

Is there a version of this hanger designed for end-of-wall installation?

Yes. For end-of-wall installation with solid sawn sizes, a version with the A2 (acute) flange turned in is available - see the options.
