Product Features
Product Description

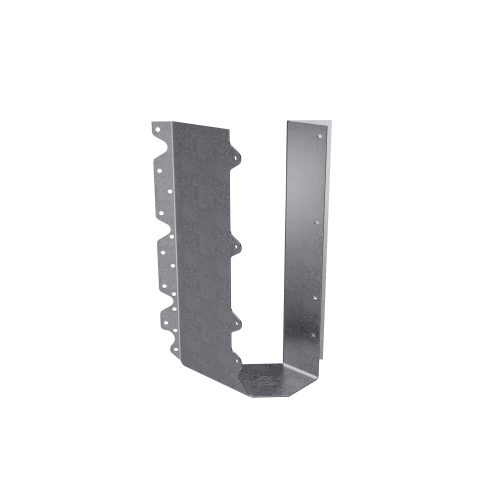

Simpson HSUR46 HSUR Galvanized Joist Hanger for 4x6, Skewed Right is a heavy-duty connector from Simpson Strong-Tie engineered to create a strong 45 deg. angled connection between a joist and a header. Formed from 14-gauge steel with a G90 zinc galvanized coating for enhanced corrosion resistance, this skewed-right hanger is designed to support 4x6 nominal joist members where a standard straight connection is not possible. Angled nail slots and flexible end-cut options make installation straightforward and reliable.
Key Features
- HSUR = skewed right, providing a 45 deg. connection between a joist and header
- Can accommodate joists skewed 40 to 50 degrees
- Angled nail slots direct nails for proper installation

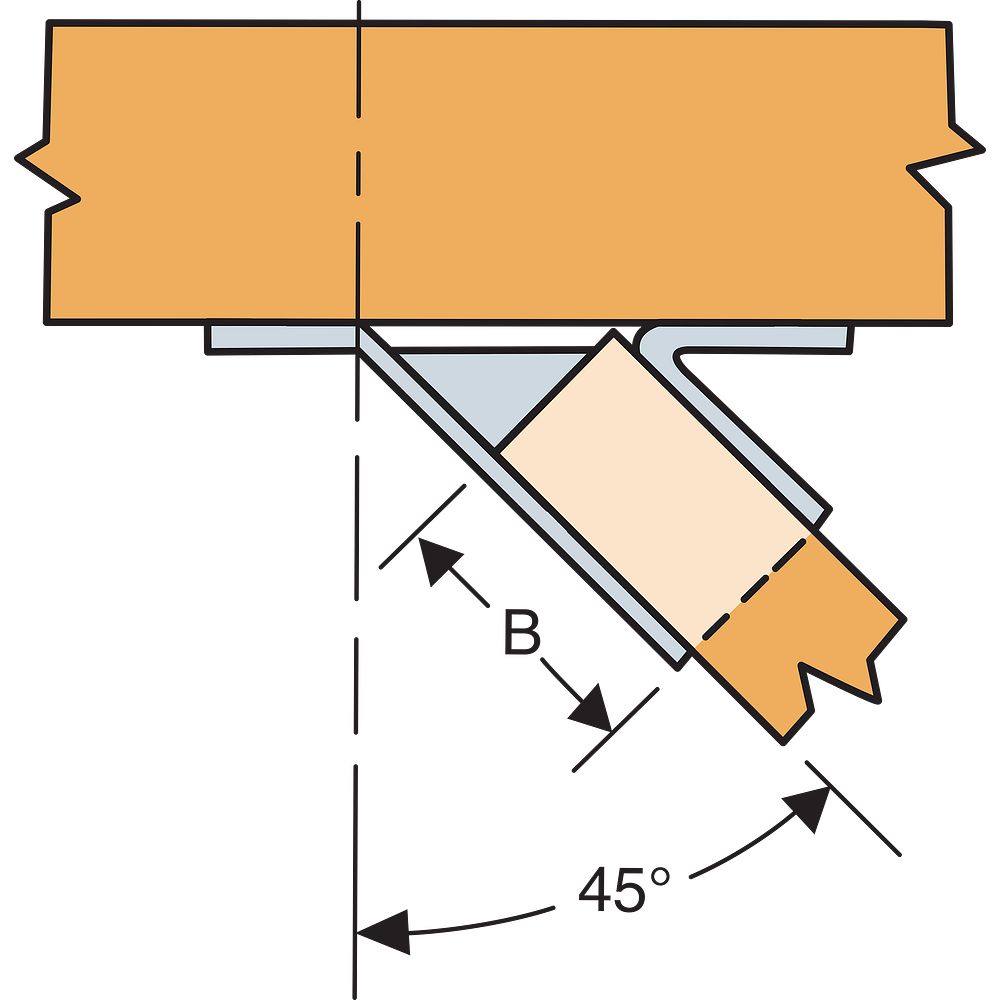

- The joist end may be square cut or bevel cut
- Nominal joist size: 4x6
- Made from 14-gauge steel
- Galvanized (G90) for extra corrosion resistance
- Install with 16d common nails
- Made in the United States
Specifications
- Model Number: HSUR46
- Member Size: 4x6
- Acute Flange Length: 2-3/16 in.
- Obtuse Flange Length: 1 in.
- Skew Direction: Right
- Width (W): 3 9/16 in.
- Height (H): 4 3/4 in.
- Seat Width (B): 2 7/16 in.
- Gauge: 14
- Coating/Finish: Zinc Galvanized, G90
- Install With: 16d common nails
- Country of Origin: United States
Options
Available with the A2 (acute) flange turned in to accommodate end-of-wall installation for solid sawn sizes only (HSURC or HSULC)
Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What angle does the HSUR46 provide for the joist-to-header connection?
- The HSUR46 is designed to provide a 45 deg. connection between a joist and a header. It can accommodate joists skewed anywhere from 40 to 50 degrees.
- What does "HSUR" mean, and how is it different from "HSUL"?
- HSUR indicates the hanger is skewed to the right. The HSUL version is identical in design but is skewed 45 degrees to the left instead. Choose the correct orientation based on your framing layout.
- Does the joist end need to be cut at a specific angle for installation?
- No. The joist end may be either square cut or bevel cut, offering flexibility during installation without compromising the connection.
- What fasteners are recommended for installing the HSUR46?
- The HSUR46 should be installed with 16d common nails. The angled nail slots built into the hanger help direct nails correctly for a proper, code-compliant installation.
Related Products
- - Heavy Skewed U-Shaped Hanger with Concealed Flanges (Right or Left)
Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
