Product Description

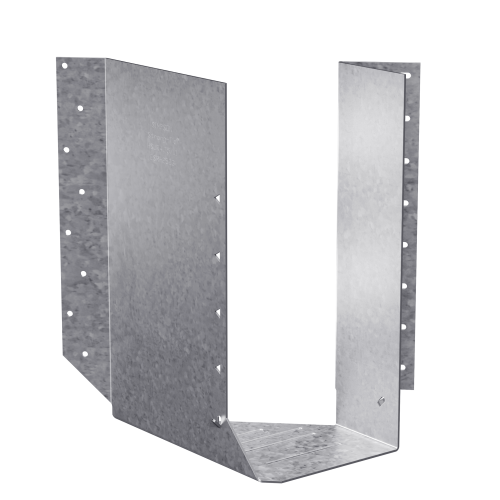

Simpson Strong-Tie 4 x 9-1/2 Heavy Skewed Right Joist Hanger, Galvanized (HSUR4.12/9) - is a heavy-duty, 45-degree skewed U-shaped hanger engineered by Simpson Strong-Tie to support large joist members or double I-joists in wood construction applications where a right-hand skew is required. Its heavy U-shaped design encapsulates the top flange of the joist, eliminating the need for web stiffeners during standard installation.
Key Features
- 45-degree skewed right design provides precise angular support for large joist members or double I-joists
- Heavy U-shaped hanger encapsulates the top flange of the joist - no web stiffeners required for standard installation
- 14-gauge steel construction delivers robust load-bearing performance for heavy wood framing applications
- Zinc Galvanized G90 coating provides corrosion resistance for long-term durability
- Skewed right (HSUR) orientation is a mirror counterpart to the skewed left (HSUL) hanger for versatile framing configurations
- Available with the A2 (acute) flange turned in to accommodate end-of-wall installation for solid sawn sizes only (HSURC or HSULC)
- Made in the United States
Specifications
- Model Number: HSUR4.12/9
- Skew Direction: Right (45 degrees)
- Gauge: 14
- W (Width): 4-1/8 in.
- H (Height): 9 in.
- B: 3 in.
- Coating/Material: Zinc Galvanized, G90
- Acute Flange Length: 2-3/8 in.
- Obtuse Flange Length: 1-7/16 in.
- Country of Origin: United States
Options
Available with the A2 (acute) flange turned in to accommodate end-of-wall installation for solid sawn sizes only (HSURC or HSULC). Contact us for Configurable Options and Special orders.
Frequently Asked Questions
- What is the difference between the HSUR and HSUL hanger?
- The HSUR and HSUL hangers are identical in construction except that the HSUR is skewed 45 degrees to the right and the HSUL is skewed 45 degrees to the left. This allows builders to use the correct hanger orientation depending on the framing layout.
- Do I need web stiffeners when installing the HSUR4.12/9?
- No. The heavy U-shaped design encapsulates the top flange of the joist, so no web stiffeners are required for standard installation.
- What type of joist members is this hanger designed to support?
- The HSUR4.12/9 is designed to support large joist members or double I-joists in wood construction applications.
- Is there a version of this hanger with a concealed flange for end-of-wall installation?
- Yes. The HSURC and HSULC versions are available with the A2 (acute) flange turned in to accommodate end-of-wall installation, but this option is available for solid sawn sizes only.
Related Products
- HSURC or HSULC
Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
