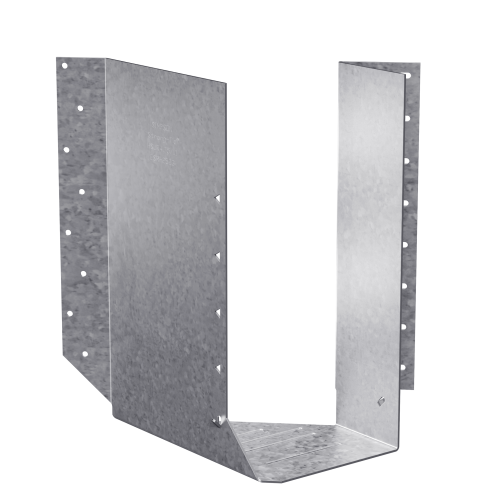

The Simpson HSUR4.12/14 Heavy Skewed U-Shaped Joist Hanger is a right-hand 45 deg. angled connector built for wood construction framing applications that demand a precise, angled joist connection. Engineered by Simpson to support large joist members and double I-joists, this heavy-gauge hanger features an encapsulating U-shaped design that wraps around the top flange of the joist, delivering a secure, stable seat without the need for web stiffeners during standard installation. Its G90 zinc galvanized finish provides corrosion resistance suited to demanding structural environments.

Key Features

• 45 deg. right-hand skew orientation - designed specifically for angled framing connections, making it the correct fit when a right-skewed hanger is required rather than a straight or left-skewed alternative.
• Heavy U-shaped encapsulating design - wraps around the top flange of the joist so web stiffeners are not required during standard installation, simplifying the framing process and reducing labor time.
• Supports large joist members and double I-joists - approved for heavy wood construction framing applications where undersized hangers would not meet structural demands.
• 14-gauge steel construction - provides the rigidity and load-bearing capacity expected in heavy structural connectors used in demanding framing conditions.
• G90 zinc galvanized coating - offers a durable protective finish that guards against corrosion in typical wood framing environments.
• End-of-wall configuration available - an option with the acute flange turned in accommodates end-of-wall installation for solid sawn sizes, expanding the range of framing situations this hanger can address.

Why This Product

• Purpose-built for right-hand angled connections - the 45 deg. skewed right geometry eliminates improvised workarounds and ensures a proper, code-consistent connection where angled framing meets a header or beam.
• Eliminates web stiffener requirements - the encapsulating U-shaped seat handles the load path without extra reinforcement components, reducing both material cost and installation complexity on the job site.
• Handles heavy joist loads - approved for large joist members and double I-joists, this hanger is suited to substantial structural loads that lighter hangers are not rated to carry.
• Made by Simpson, a trusted connector brand - the HSUR4.12/14 carries the engineering and quality control that structural framing professionals rely on when specifying connectors for critical load-bearing applications.

Specifications

• Model Number: HSUR4.12/14
• Skew Direction: Right (45 degrees)
• Gauge: 14
• Width - W: 4 1/8 in.
• Height - H: 13 3/4 in.
• Bearing - B: 3 in.
• Coating / Material: Zinc Galvanized, G90
• Width (W): 4-1/8 in.
• Obtuse Flange Length: 1-7/16 in.
• Acute Flange Length: 2-3/8 in.
• Height (H): 13-3/4 in.
• Seat Depth: 3 in.
• Country of Origin: United States

Approved Applications

• Supporting large joist members in wood construction framing
• Supporting double I-joists in wood construction framing
• Applications requiring a 45-degree right-hand skewed hanger connection

Options

Available with the A2 (acute) flange turned in to accommodate end-of-wall installation for solid sawn sizes only. See the HSURC or HSULC for this configuration. Contact us for configurable options and special orders.

Related Products

• - Heavy Skewed U-Shaped Hanger with Concealed Flanges for end-of-wall installation

Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.

Frequently Asked Questions

What is the skew direction and angle of the HSUR4.12/14?

The HSUR4.12/14 is skewed to the right at a 45-degree angle. This makes it specifically suited for framing applications where a right-hand angled joist connection is required.

Do I need web stiffeners when installing this joist hanger?

No. The HSUR4.12/14 features a heavy U-shaped encapsulating design that wraps around the top flange of the joist, eliminating the need for web stiffeners during standard installation.

What types of joists is this hanger designed to support?

This hanger is engineered to support large joist members as well as double I-joists in wood construction framing applications.

Is there an option for end-of-wall installation?

Yes. The HSUR4.12/14 is available with the A2 (acute) flange turned in, which accommodates end-of-wall installation scenarios.
