Product Description

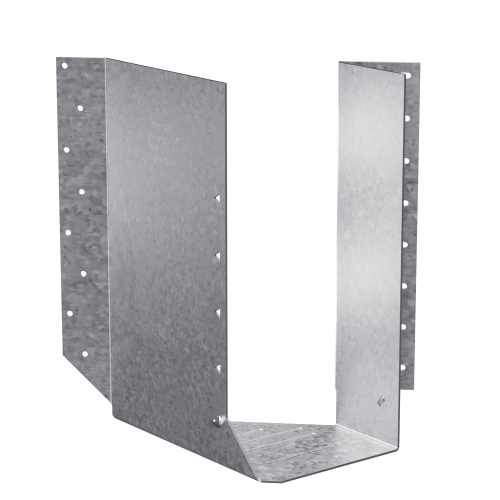

The Simpson Double 2x14 Joist Hanger Skewed Right is a heavy-duty galvanized connector built for wood-frame construction projects that require a precise 45 deg. right-skewed joist-to-beam connection. Designed to support large solid-sawn joist members and double I-joists, this U-shaped hanger encapsulates the top flange of the joist, delivering a secure, web-stiffener-free installation in demanding structural applications.
Key Features
- 45 deg. Right Skew - Purpose-built for right-hand angled framing connections, making it the correct choice when your layout requires a rightward offset rather than a straight or left-skewed tie.
- Heavy U-Shaped Encapsulating Design - Wraps fully around the top flange of the joist, eliminating the need for web stiffeners during standard installation and simplifying the build process.
- Supports Double I-Joists and Large Solid-Sawn Members - Sized to handle the dimensional demands of double 2x14 framing members, giving builders confidence in high-load structural connections.
- Zinc Galvanized G90 Coating - Provides a corrosion-resistant finish suited for wood-frame construction environments where long-term durability of the connector is a priority.
- A2 Flange Option Available - The acute flange can be turned in to accommodate end-of-wall installation for solid-sawn sizes, adding flexibility for tighter or more complex framing conditions.
Why This Product
- Eliminates a Common Installation Complication - Because the encapsulating U-shaped design removes the need for web stiffeners in standard installations, crews spend less time on supplemental framing steps and more time moving the project forward.
- Precision Skew for Right-Hand Framing Layouts - When a 45 deg. right-skewed connection is structurally required, using a hanger engineered specifically for that angle - rather than adapting a straight hanger - keeps the connection code-compliant and properly loaded.
- Built by Simpson for Heavy Structural Loads - Engineered to connect double I-joists and large solid-sawn members at an angled header or beam, this connector is suited for the kinds of structural connections where guesswork is not an option.
- American-Made Quality - Produced in the United States to Simpson manufacturing standards, the hanger delivers consistent dimensional accuracy and finish quality that contractors can rely on across multiple installations.
Specifications
- Model Number: HSUR214-2
- Skew Direction: Right (45 degrees)
- Gauge: 14
- Width (W): 3 1/8 in.
- Height (H): 12 11/16 in.
- Bearing Seat Depth (B): 2 7/16 in.
- Coating / Material: Zinc Galvanized, G90
- Acute Flange Length: 2-3/16 in.
- Obtuse Flange Length: 1-1/4 in.
- Country of Origin: United States
Approved Applications
- Supporting large solid-sawn joist members in wood-frame construction
- Connecting double I-joists at a 45-degree right-skewed angle to a header or beam
- Framing scenarios where a right-hand angled joist-to-beam connection is structurally required
- Applications where web stiffeners are not practical or desired under standard installation conditions
Options
Available with the A2 (acute) flange turned in to accommodate end-of-wall installation for solid sawn sizes only. See the HSURC or HSULC for concealed-flange versions. For configurable options and special orders, Contact us.
Frequently Asked Questions
- What is the difference between the HSUR and HSUL?
- The HSUR and HSUL hangers are identical in construction except for their skew direction. The HSUR is skewed 45 degrees to the right, while the HSUL is skewed 45 degrees to the left.
- Are web stiffeners required when installing the HSUR214-2?
- No. The heavy U-shaped hanger encapsulates the top flange of the joist, so no web stiffeners are required for a standard installation.
- What type of corrosion protection does this hanger have?
- The HSUR214-2 features a Zinc Galvanized, G90 coating, providing corrosion resistance suitable for wood construction environments.
- Is an end-of-wall installation option available for this hanger series?
- Yes. The hanger series is available with the A2 (acute) flange turned in to accommodate end-of-wall installation for solid sawn sizes only, offered as the .
Note: Product dimensions and/or nail
