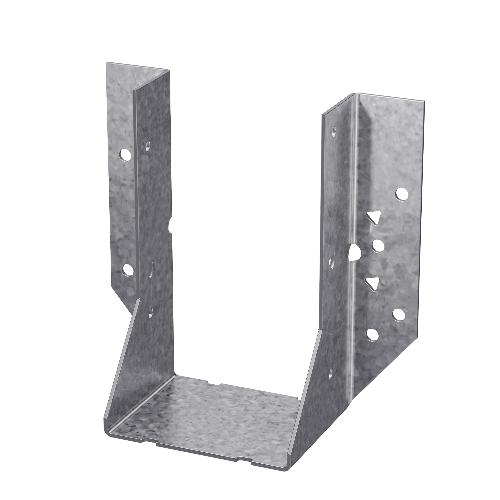

The Simpson HU26-2 Galvanized Face-Mount Joist Hanger is a heavy-duty structural connector from Simpson engineered for framing applications where a double 2x6 member demands a stronger, safer connection than a single-member hanger can deliver. Built to the standards trusted by engineers and contractors on residential and commercial projects alike, this face-mount hanger is purpose-built to handle the added load requirements that come with doubled framing members, giving builders a reliable solution that goes in fast without compromising structural performance.

Key Features

• "U" design allows for flexibility of placement on the header - lets you adjust positioning during installation without having to reframe or re-mark, saving time on the job site.
• Designed for a nominal joist size of Double 2x6 - purpose-fit for doubled framing members, ensuring a snug, load-rated connection that a single-member hanger cannot provide.
• Constructed from 14-gauge steel - heavier-gauge material delivers the added rigidity and load capacity required for heavy-duty structural applications.
• G90 zinc galvanized coating for extra corrosion resistance - protects the hanger in moisture-prone environments, helping maintain structural integrity over the long term.

Why This Product

• Engineered for heavy-duty performance - Simpson designed the HU series specifically for structures requiring additional strength and safety factors, making this hanger the right choice when a standard joist hanger is not enough.
• Genuine Simpson quality you can count on - manufactured to the highest quality standards and tested to perform, this connector is the go-to choice of engineers and contractors who need a connector that meets code-required safety margins.
• Flexible "U" design reduces installation hassle - the open "U" profile allows the hanger to slide into position on the header without rigid alignment constraints, cutting down on installation time and frustration.
• Durable G90 galvanized finish for lasting protection - the zinc galvanized coating provides a higher level of corrosion resistance than standard finishes, making this hanger a dependable choice for framing where moisture exposure is a real concern.

Specifications

• Model Number: HU26-2
• Member Size: Double 2x6
• Height: 4-15/16 in.
• Width: 3-1/8 in.
• Seat Depth: 2-1/2 in.
• Gauge: 14
• Coating/Finish: Zinc Galvanized, G90
• Install With: 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 3 in. nails in the joist (sold separately)
• Country of Origin: United States

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What joist size is the HU26-2 designed for?

The HU26-2 is designed for a nominal joist size of Double 2x6, making it ideal for heavy-duty framing applications that require a stronger connection than a single-member hanger can provide.

What type of nails should be used to install the HU26-2?

Installation requires 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 3 in. nails in the joist for a properly rated connection.

What does the G90 galvanized coating provide?

The G90 zinc galvanized coating provides extra corrosion resistance, helping the hanger maintain its structural integrity in environments where moisture exposure is a concern.

What is the advantage of the "U" design on the HU26-2?

The "U" design allows for flexibility of placement on the header, making it easier to position and install during framing without sacrificing load performance or structural integrity.

Note: Product dimensions and/or fastener holes may differ from picture. Please see item description for specifications.
