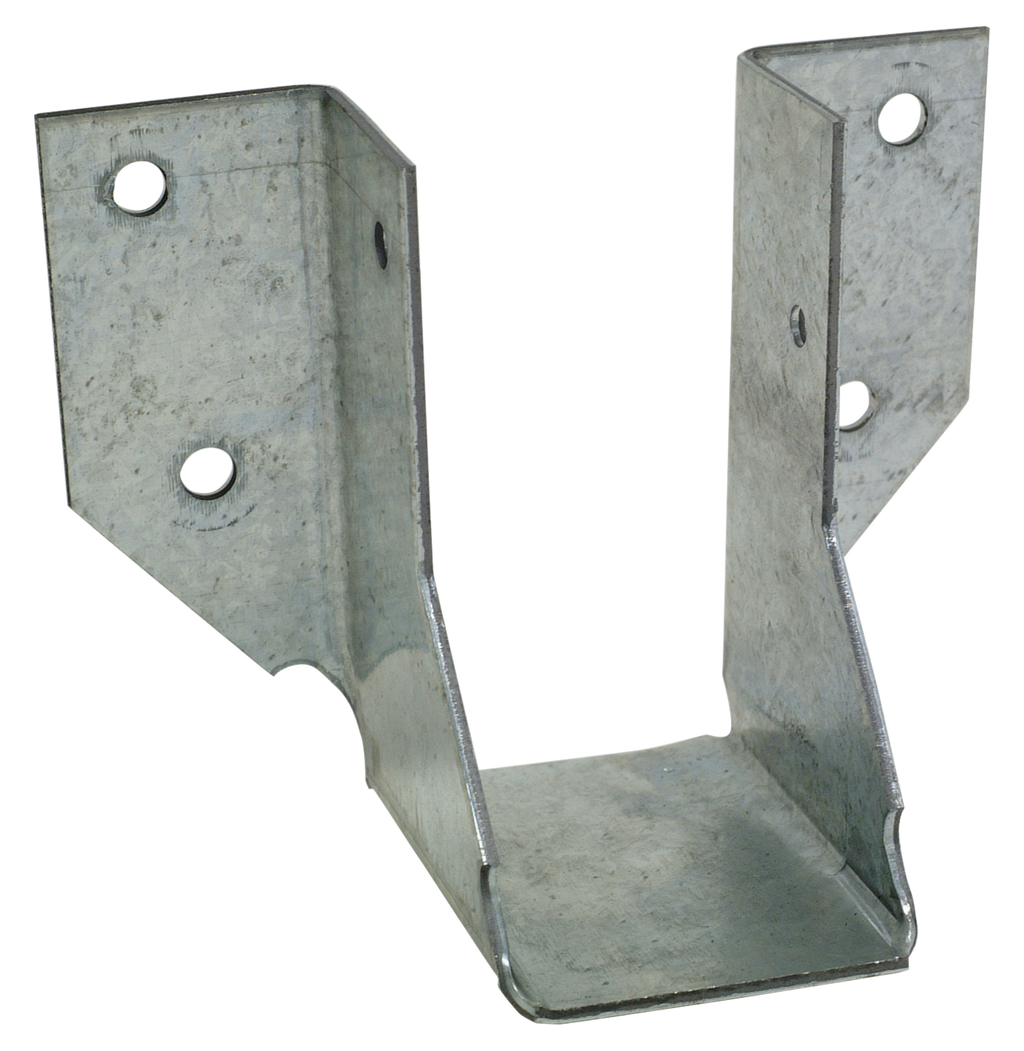

The Simpson HU26 HU Galvanized Face-Mount Joist Hanger for 2x6 is a heavy-duty framing connector from Simpson engineered for structures requiring additional strength and safety factors. Constructed from 14-gauge steel with a G90 galvanized finish, this face-mount hanger is the go-to choice for engineers and contractors tackling residential and structural framing projects where a dependable 2x6 joist connection is critical. Whether you are framing a deck, floor system, or any load-bearing application, this connector is built to meet the demands of real-world construction.

Key Features

• "U" design allows for flexibility of placement on the header - lets you position the hanger where it works best without being locked into a single location, saving time and reducing frustration during installation
• Nominal joist size: 2x6 - purpose-built to fit standard 2x6 dimensional lumber, ensuring a secure, correctly sized connection right out of the box
• Made from 14-gauge steel - delivers heavy-duty strength suited for structures with elevated load and safety requirements, providing confidence that the connection will hold under demanding conditions
• Galvanized (G90) for extra corrosion resistance - the zinc galvanized G90 coating protects against moisture and the elements, making this hanger a reliable option for both interior framing and moisture-exposed environments

Why This Product

• Engineered and tested for demanding applications - Simpson connectors are engineered and tested to perform, giving contractors and builders confidence that each HU26 meets rigorous structural and safety standards
• Heavy-duty gauge where it matters most - the 14-gauge steel construction goes beyond what lighter-gauge hangers offer, making this hanger well-suited for framing projects where additional strength and safety factors are required
• Durable G90 galvanized protection - the zinc galvanized G90 finish provides extra corrosion resistance, extending the service life of the connection in environments where standard coatings may fall short
• Flexible installation with a proven face-mount design - the "U" design face-mount configuration gives builders versatile header placement options, streamlining the framing process and working with standard 2x6 lumber used across a wide range of residential and structural applications

Specifications

• MPN: HU26
• Member Size: 2x6
• Height: 3-1/16 in.
• Width: 1-9/16 in.
• Seat Depth: 2-1/4 in.
• Gauge: 14
• Coating/Finish: Zinc Galvanized, G90
• Installation Fasteners: Install with 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 1-1/2 in. nails in the joist (sold separately)
• Country of Origin: United States

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What size joist is the HU26 designed to support?

The HU26 is designed for a nominal joist size of 2x6, making it the correct hanger for standard 2x6 dimensional lumber framing applications.

What type of fasteners should be used to install the HU26?

Install with 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 1-1/2 in. nails in the joist for a proper and code-compliant installation.

What gauge steel is the HU26 made from, and why does it matter?

The HU26 is constructed from 14-gauge steel, which provides the heavy-duty strength needed for structures requiring additional strength and safety factors beyond what lighter-gauge hangers offer.

Is the HU26 suitable for outdoor or moisture-exposed environments?

Yes. The HU26 features a Zinc Galvanized, G90 coating that provides extra corrosion resistance, making it well-suited for use in environments where moisture exposure is a concern.

Note: Product dimensions and/or fastener holes may differ from picture. Please see item description for specifications.
