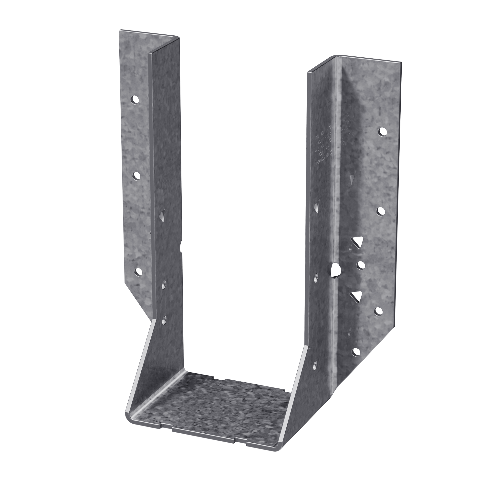

The Simpson HU28-2 Galvanized Face-Mount Joist Hanger for Double 2x8 is a heavy-duty structural connector engineered by Simpson Strong-Tie for framing applications that demand additional strength and safety factors. Built from 14-gauge steel with a Zinc Galvanized, G90 finish, this face-mount hanger is designed to securely support doubled 2x8 lumber, delivering reliable load transfer in both residential and commercial construction. Trusted by engineers and contractors, it is a go-to solution for floor framing, deck framing, and any structural application where a proven, high-performance joist connection is required.

Key Features

• "U" design allows for flexibility of placement on the header - lets you position the hanger where it best suits your framing layout without being locked into a single fixed location, saving time and reducing installation headaches.
• Nominal joist size: Double 2x8 - engineered specifically for doubled 2x8 members, ensuring a snug, secure fit that properly transfers loads without the guesswork of adapting a single-member hanger.
• Made from 14-gauge steel - provides the heavy-duty structural strength needed for applications requiring additional safety factors, making it suitable for demanding framing conditions.
• Galvanized (G90) for extra corrosion resistance - the Zinc Galvanized, G90 coating helps extend the service life of the connector in moisture-prone and outdoor environments, protecting your investment over the long term.

Why This Product

• Engineer- and contractor-trusted performance - Simpson Strong-Tie connectors are engineered and tested to perform, making this hanger the preferred choice for professionals who cannot afford to compromise on structural integrity.
• Heavy-duty construction for high-demand framing - the combination of 14-gauge steel and a face-mount design delivers the additional strength and safety factors needed for structures where standard-duty hangers fall short.
• Built-in corrosion protection for long-lasting reliability - the G90 galvanized coating provides a durable barrier against corrosion, making this hanger well-suited for decks, covered porches, and other environments exposed to moisture.
• Flexible installation for a faster, cleaner build - the "U" design gives you freedom of placement along the header, helping you work more efficiently and adapt to real-world framing conditions on the job site.

Specifications

• MPN: HU28-2
• Member Size: Double 2x8
• Height: 6-5/16 in.
• Width: 3-1/8 in.
• Seat Depth: 2-1/2 in.
• Gauge: 14
• Coating/Finish: Zinc Galvanized, G90
• Country of Origin: United States
• Installation Fasteners: Install with 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 3 in. nails in the joist (sold separately)

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What lumber size is the HU28-2 designed to support?

The HU28-2 is specifically designed for a nominal joist size of Double 2x8 lumber, providing a secure face-mount connection for doubled framing members.

What gauge steel is used in the HU28-2?

The HU28-2 is manufactured from 14-gauge steel, making it a heavy-duty hanger suited for applications that demand additional strength and safety factors.

What corrosion protection does the HU28-2 have?

The HU28-2 features a Zinc Galvanized, G90 coating, which provides extra corrosion resistance and helps extend the service life of the connector in demanding environments.

What fasteners should be used to install the HU28-2?

Install with 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 3 in. nails in the joist to achieve the connector's rated performance.

Note: Product dimensions and/or fastener holes may differ from picture. Please see item description for specifications.
