The Simpson LGUM28-2-SDS LGUM High-Capacity Girder Hanger for Masonry for Double 2x8 with Screws/Anchors by Simpson is a heavy-duty face-mount girder hanger engineered specifically for concrete and grouted CMU wall applications. Built to carry double 2x8 lumber members, this high-capacity masonry connector arrives with all required fasteners already included - Strong-Drive SDS Heavy-Duty Connector screws for attachment into the wood member and Titen HD anchors for secure fastening into the masonry surface - so structural crews can move straight to installation without sourcing additional hardware.

Key Features

• Attaches to concrete or grouted CMU walls using Titen HD anchors - purpose-built for masonry substrates, giving structural installers a reliable, code-conscious connection into the wall without improvised hardware.
• Strong-Drive SDS Heavy-Duty Connector screws included for wood-side attachment - fasteners sized and specified for this hanger are in the box, eliminating guesswork and extra trips to the hardware store.
• Designed for interior or protected structural connections - Titen HD anchors are not recommended for exposed exterior applications, keeping the product in its engineered performance range and preventing misapplication in the field.
• Moisture barrier required between beam and wall per jurisdictional requirements - a clear installation guideline that helps contractors stay compliant with local building codes and protect the structural assembly long-term.
• Constructed from 12-gauge steel with a G90 zinc galvanized finish - heavier-gauge steel delivers the load capacity expected of a high-capacity girder hanger, while the G90 galvanized coating adds a meaningful layer of corrosion resistance for protected interior environments.
• Supports girder trusses, solid sawn lumber, and engineered wood products - broad material compatibility means this single hanger works across a variety of structural assemblies, reducing the need to source application-specific alternatives.

Why This Product

• Complete hardware kit in one package - both the Titen HD masonry anchors and Strong-Drive SDS screws are included, so the hanger, the masonry fasteners, and the wood-side connectors arrive together and are matched by the manufacturer for the application.
• Engineered specifically for masonry bearing walls - unlike general-purpose joist hangers, the LGUM series is designed from the ground up for concrete and grouted CMU substrates, giving structural builders a product that addresses the specific demands of masonry-to-wood connections.
• High-capacity rating for demanding structural loads - the combination of 12-gauge steel construction and a fastener system engineered for this hanger makes it well-suited for carrying the heavier loads associated with girder and beam applications rather than standard single-joist connections.
• Made in the United States by a trusted structural connector brand - Simpson products are widely recognized across the construction industry, and domestic manufacturing supports consistent quality control on a hanger intended for load-bearing structural use.

Specifications

• Model Number (MPN): LGUM28-2-SDS
• Nominal Member Size: Double 2x8
• Seat Width: 6-9/16 in.
• Height: 7-3/16 in.
• Gauge: 12
• Coating: Zinc Galvanized, G90
• Finish: Zinc Galvanized, G90
• Width: 3-5/16 in.
• Country of Origin: United States
• Installation Fasteners: Install with Strong-Drive SDS Heavy-Duty Connector screws and Titen HD anchors (included)

Approved Applications

• Hanging girder trusses, solid sawn lumber, and engineered wood products (EWP) onto concrete or masonry walls
• Concrete wall installations using Titen HD anchors
• Grouted CMU (concrete masonry unit) wall installations using Titen HD anchors
• Interior or protected structural connections where exposure to exterior moisture is not a concern

What's Included

Each pack contains (1) LGUM28-2-SDS Masonry Girder Hanger, Strong-Drive SDS Heavy-Duty Connector screws and Titen HD anchors.

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What type of wall can the LGUM28-2-SDS be installed into?

This hanger is designed specifically for concrete or grouted CMU (concrete masonry unit) wall applications. Titen HD anchors (included) are used to secure the hanger to the masonry surface.

Is the LGUM28-2-SDS suitable for outdoor or exposed exterior use?

No. Titen HD anchors included with this hanger are not recommended for exposed exterior applications. This product is intended for interior or protected structural connections.

What lumber member size is this hanger designed to support?

The LGUM28-2-SDS is designed for a double 2x8 nominal joist or girder member size, with a seat width of 6-9/16 in. and a height of 7-3/16 in.

Do I need to purchase additional fasteners or hardware to install this hanger?

No. This hanger ships complete with both Strong-Drive SDS Heavy-Duty Connector screws for attachment into the wood member and Titen HD anchors for fastening into the masonry - all hardware is included.

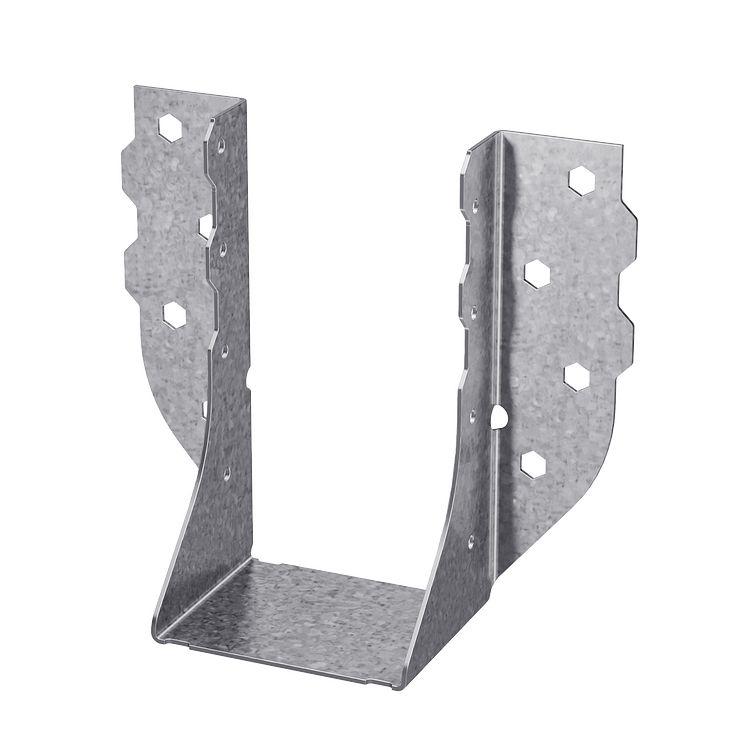

Note: Product dimensions and/or screw or bolt holes may differ from picture.
