The Simpson LGUM210-4-SDS LGUM High-Capacity Girder Hanger for Masonry is engineered to deliver strong, reliable beam-to-masonry connections for quad 2x10 lumber in concrete and grouted CMU wall applications. Designed by Simpson Strong-Tie, this face-mount hanger simplifies installation by using Strong-Drive SDS Heavy-Duty Connector screws driven into the wood member and Titen HD anchors driven into the masonry - both included - so contractors and builders can complete high-capacity girder and beam connections without sourcing separate fasteners.

Key Features

• Attaches to concrete or grouted CMU walls using included Titen HD anchors - eliminates the need to source separate masonry fasteners, keeping the installation process straightforward and efficient.
• Includes Strong-Drive SDS Heavy-Duty Connector screws for the wood member - provides a complete fastening solution out of the box, reducing jobsite prep time and compatibility guesswork.
• Made from 12-gauge steel - heavy-duty construction handles high-capacity girder and beam loads in demanding structural applications.
• Zinc galvanized G90 finish - provides added corrosion resistance for use in interior concrete and masonry environments where surface protection matters.
• Sized for quad 2x10 members - purpose-built seat width accommodates quad 2x10 girder assemblies, ensuring a precise, code-consistent fit without field modification.
• Titen HD anchors are not recommended for exposed exterior applications - knowing this limitation upfront helps builders select the correct hanger for the environment and avoid costly rework.
• Moisture barrier between beam and wall required per jurisdictional requirements - the hanger is designed with this installation step in mind, supporting proper long-term performance of the connection.

Why This Product

• Everything needed for installation is included - both Strong-Drive SDS Heavy-Duty Connector screws and Titen HD anchors ship with the hanger, so there are no additional fastener purchases or compatibility concerns at the point of installation.
• Built for high-capacity masonry applications - the LGUM series is specifically engineered for concrete and grouted CMU wall connections, making it a purpose-matched solution for girder trusses, solid sawn lumber beams, and engineered wood products in masonry construction.
• Heavy-gauge steel with corrosion-resistant coating - 12-gauge construction combined with a G90 zinc galvanized finish means the hanger is built to handle structural loads while resisting the corrosive conditions common in concrete and masonry environments.
• Domestic manufacturing and Simpson Strong-Tie engineering behind every detail - from the seat geometry sized precisely for quad 2x10 members to the inclusion of application-specific fasteners, every aspect reflects the design standards Simpson Strong-Tie is known for in structural connector products.

Specifications

• MPN: LGUM210-4-SDS
• Member Size: Quad 2x10
• Seat Width: 6-9/16 in.
• Height: 9-3/16 in.
• Gauge: 12
• Coating: Zinc Galvanized, G90
• Finish: Zinc Galvanized, G90
• Width: 6-9/16 in.
• Country of Origin: United States
• Install With: Install with Strong-Drive SDS Heavy-Duty Connector screws and Titen HD anchors (included)

Approved Applications

• Hanging girder trusses onto concrete or masonry walls
• Connecting solid sawn lumber beams to concrete or grouted CMU walls
• Supporting engineered wood products (EWP) in masonry construction
• High-capacity girder and beam connections in concrete or grouted CMU applications

What's Included

Each pack contains (1) LGUM210-4-SDS Masonry Girder Hanger, Strong-Drive SDS Heavy-Duty Connector screws and Titen HD anchors.

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What type of wall can the LGUM210-4-SDS be attached to?

The LGUM210-4-SDS is designed to attach to concrete or grouted CMU (concrete masonry unit) walls using the included Titen HD anchors.

Are the fasteners included with this hanger?

Yes. This hanger includes both Strong-Drive SDS Heavy-Duty Connector screws for attachment into the wood member and Titen HD anchors for attachment into the masonry.

Can the LGUM210-4-SDS be used in exposed exterior applications?

No. The Titen HD anchor is not recommended for exposed exterior applications. A moisture barrier between the beam and wall should also be provided per jurisdictional requirements.

What beam size is this hanger designed to support?

This hanger is designed for a nominal Quad 2x10 member, featuring a seat width of 6-9/16 in. and a height of 9-3/16 in.

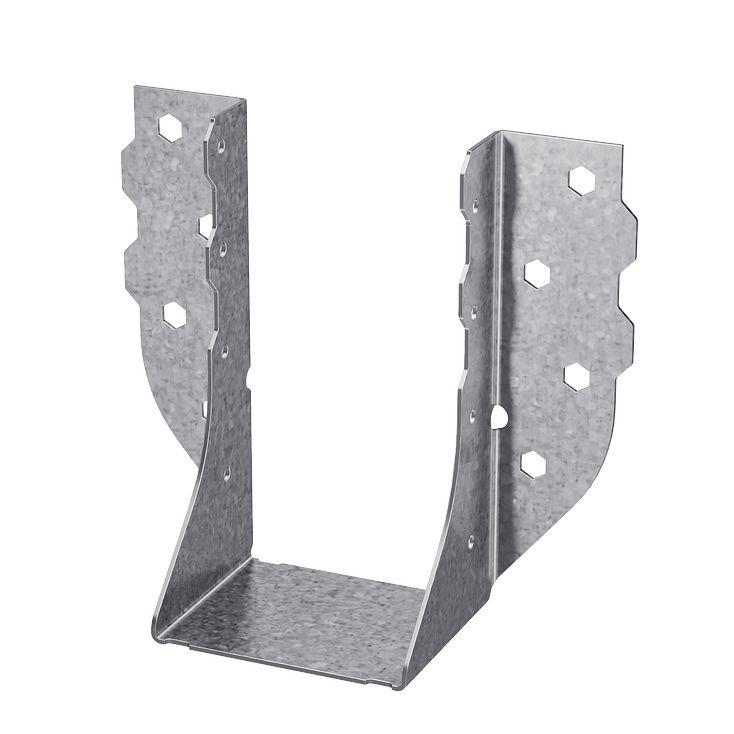

Note: Product dimensions and/or screw or bolt holes may differ from picture.
