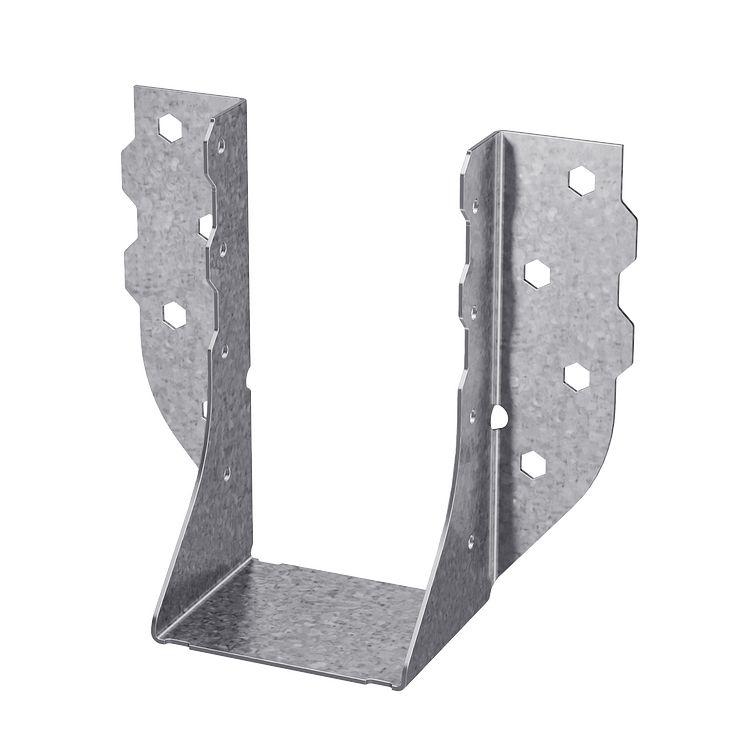

The Simpson LGUM High-Capacity Girder Hanger for Masonry for Double 2x10 with SDS Screws and Titen HD Anchors by Simpson is a heavy-duty structural connector engineered for securing double 2x10 beams, girder trusses, solid sawn lumber, and engineered wood products to concrete or grouted CMU walls. Built from 12-gauge steel with a G90 zinc galvanized finish and shipped complete with both Strong-Drive SDS Heavy-Duty Connector screws and Titen HD anchors, this hanger delivers a ready-to-install solution for high-capacity beam connections in concrete and masonry construction.

Key Features

• Titen HD anchor attachment to concrete or grouted CMU walls - provides a secure, code-recognized connection directly to masonry substrates, eliminating the need to source separate anchoring hardware
• Strong-Drive SDS Heavy-Duty Connector screws included - fasten directly into the wood member for a complete, two-material connection right out of the box with no additional fastener purchases required
• 12-gauge steel construction - delivers the structural thickness needed for high-capacity girder and beam loads in demanding concrete and masonry applications
• G90 zinc galvanized finish - provides an added layer of corrosion resistance to extend the service life of the connector in interior masonry environments
• Sized for a nominal Double 2x10 member - engineered to the exact dimensions of your beam so the connection fits correctly and performs as designed without field modification
• Titen HD anchors not recommended for exposed exterior applications - knowing this upfront helps contractors select the correct product for the job and avoid costly field errors
• Moisture barrier required between beam and wall per jurisdictional requirements - a clear installation guideline that helps ensure the connection meets local code without guesswork

Why This Product

• Everything you need is included - both the Strong-Drive SDS Heavy-Duty Connector screws and Titen HD anchors ship with the hanger, so installers arrive on site with a complete masonry beam connection kit and no missing components
• Purpose-built for concrete and masonry beam connections - the LGUM series is specifically designed for grouted CMU and concrete walls, making it the right tool for structural girder and beam applications where standard wood-to-wood hangers simply do not apply
• Heavy-gauge steel with a corrosion-resistant coating - 12-gauge construction paired with a G90 zinc galvanized finish means the connector is built to handle both the structural demands of high-capacity loads and the moisture exposure common in masonry environments
• Simplified installation in high-capacity applications - using included SDS screws into the wood member and Titen HD anchors into the masonry, the connection process is straightforward, reducing installation time on concrete and CMU wall framing projects

Specifications

• Model Number: LGUM210-2-SDS
• Member Size: Double 2x10
• Seat Width: 3-5/16 in.
• Height: 9-3/16 in.
• Gauge: 12
• Coating: Zinc Galvanized, G90
• Finish: Zinc Galvanized, G90
• Width: 3-5/16 in.

Approved Applications

• Hanging girder trusses onto concrete or masonry walls
• Connecting solid sawn lumber to concrete or grouted CMU walls
• Connecting engineered wood products (EWP) to concrete or masonry surfaces
• High-capacity beam and girder connections in concrete or masonry construction

What's Included

Each pack contains (1) LGUM210-2-SDS Masonry Girder Hanger, Strong-Drive SDS Heavy-Duty Connector screws and Titen HD anchors.

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What type of wall is the LGUM210-2-SDS designed to attach to?

This hanger is designed for concrete or grouted CMU (concrete masonry unit) wall applications. The Titen HD anchors secure the hanger to the masonry, while the Strong-Drive SDS Heavy-Duty Connector screws fasten it to the wood member.

Can the LGUM210-2-SDS be used in exposed exterior applications?

No. The Titen HD anchors included with this hanger are not recommended for exposed exterior applications. A moisture barrier between the beam and wall should also be provided per jurisdictional requirements.

What lumber size is this hanger rated for?

The LGUM210-2-SDS is sized for a nominal Double 2x10 joist or beam member, with a seat width of 3-5/16 in. and a height of 9-3/16 in.

Are fasteners included with this hanger?

Yes. The hanger includes both Strong-Drive SDS Heavy-Duty Connector screws for attachment into the wood member and Titen HD anchors for attachment into the concrete or masonry wall, providing everything needed for installation.

Note: Product dimensions and/or Screw or Bolt holes may differ from picture.
