Product Description

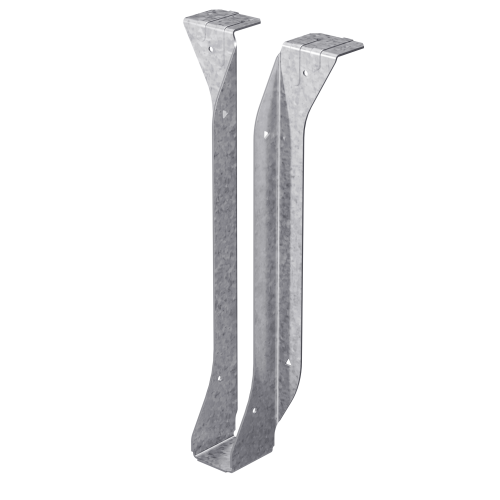

The Simpson 2 x 14 Light-Bent Top-Flange Joist Hanger ZMAX LB214AZ is a top-flange hanger engineered by Simpson for solid sawn lumber applications. Built to support light-to-medium loads while providing uplift resistance, this cost-effective connector is made from 14-gauge steel and features ZMAX galvanization for enhanced corrosion resistance - making it a dependable choice for exterior framing and installations involving treated wood. The hanger has been load rated for use with a 2x or 3x nailer if required, adding flexibility across a range of solid sawn framing configurations.
Key Features
- Designed to help resist download forces - keeps your joist connection secure under vertical load, contributing to long-term structural integrity.
- Unique two-level embossment on the top flange - adds stiffness right where it is needed most, reducing flex and improving load transfer at the bearing point.
- ZMAX galvanization - provides extra corrosion resistance compared to standard finishes, making this hanger well-suited for exterior applications and use with pressure-treated lumber where moisture and chemical exposure are concerns.
- 14-gauge steel construction - delivers reliable strength for light-to-medium load framing tasks without unnecessary bulk or added cost.
- Quick installation design - straightforward fastening with specified nails in the header and joist lets framers work efficiently and move through a job faster.
- Load rated for use with a 2x or 3x nailer - gives installers added flexibility when a nailer is required by the framing layout, without needing a separate specialized connector.
Why This Product
- Built-in uplift resistance at a practical price point - the LBAZ top-flange design supports light-to-medium loads while resisting uplift forces, delivering structural performance without overbuilding for the application.
- Ready for treated-wood and exterior environments - ZMAX galvanization is specifically suited for the chemical and moisture exposure that comes with treated lumber and outdoor framing, reducing the risk of premature corrosion at the connection point.
- Engineered stiffness where it counts - the two-level embossment on the top flange is a purpose-built detail that reinforces the hanger against flex, giving the connection added rigidity without increasing gauge or material cost.
- Versatile nailer compatibility - with load ratings confirmed for use alongside a 2x or 3x nailer, this joist hanger adapts to more framing scenarios than a basic hanger, reducing the need to source multiple connector types for a single project.
Specifications
- Model Number: LB214AZ
- Nominal Joist Size: 2x14
- Gauge: 14
- Seat Width: 1-9/16 in.
- Height: 13-1/8 in.
- Top Flange Depth: 1-7/16 in.
- Coating / Finish: ZMAX
- Installation Fasteners: Install with (6) 0.162 in. x 3-1/2 in. nails in the header and (2) 0.148 in. x 1-1/2 in. nails in the joist (sold separately)
- Country of Origin: United States
Downloads and Resources
- Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
- Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
Frequently Asked Questions
What size lumber is the LB214AZ designed to support?
The LB214AZ is designed for a nominal 2x14 joist size, with a seat width of 1-9/16 in. and a height of 13-1/8 in. to accommodate solid sawn lumber applications.
What fasteners are required to install the LB214AZ?
Install with (6) 0.162 in. x 3-1/2 in. nails in the header and (2) 0.148 in. x 1-1/2 in. nails in the joist. Use specified fasteners and see nailer table notes for additional guidance. Ledgers must be evaluated for each application separately; check the TF dimension, nail length, and nail location on the ledger.
What is ZMAX galvanization and why does it matter?
ZMAX galvanization is a zinc-based coating applied to the steel hanger that provides extra corrosion resistance compared to standard galvanized finishes. This makes the LB214AZ especially suitable for exterior applications and installations involving treated wood, where moisture exposure and chemical contact are concerns.
Can the LB214AZ be used with a nailer?
Yes. The LBAZ has been load rated for use with a 2x or 3x nailer if required, providing added flexibility for various framing configurations in solid sawn lumber applications.
