Product Description

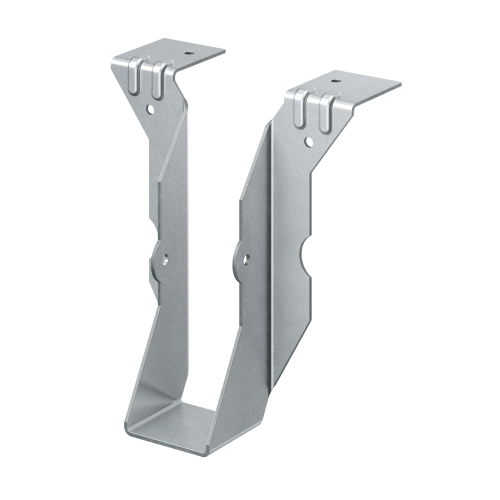

The Simpson 2 x 16 Top Flange Joist Hanger LB216 by Simpson is a 14-gauge, G90 galvanized top-flange hanger engineered specifically for solid sawn lumber framing, providing reliable joist connections for light-to-medium load applications while delivering the increased uplift resistance required in high-wind and seismic environments.
Key Features
- Top-flange embossment for increased stiffness - reduces flex at the connection point, keeping the hanger rigid and dependable under load.
- Engineered with increased uplift load capacity - meets the structural demands of earthquake and high-wind loading conditions, making it suitable for seismic zones and coastal regions.
- Compatible with welding to steel headers - expands installation flexibility by allowing attachment to steel framing members, with weld size matched to material thickness.
- Load rated for use with a 2x nailer if required - gives installers the option to add a nailer without losing load rating, keeping the connection code-compliant in varied framing scenarios.
- Designed for solid sawn lumber 2x16 joists - purpose-built sizing means a precise, secure fit without field modification or shimming.
- Cost-effective design for light-to-medium load connections - delivers structural performance where it counts without overbuilding, helping keep framing budgets in check.
Why This Product
- Dual-environment capability - a single hanger handles both standard framing loads and elevated uplift demands, eliminating the need to source different hardware for high-wind or seismic job sites.
- G90 galvanized coating for corrosion resistance - the zinc galvanized finish helps protect the connection against moisture exposure, extending service life in demanding framing applications.
- American-made construction from Simpson - produced domestically by a widely recognized structural connector manufacturer, supporting confidence in consistent quality and dimensional accuracy.
- Steel header compatibility opens wider application potential - the option to weld directly to steel headers makes this hanger a practical choice for mixed-material framing projects where wood-to-steel connections are required.
Specifications
- Model No.: LB216
- Joist Size: 2 x 16
- Gauge: 14
- Width: 1 9/16 in.
- Height: 15 1/8 in.
- B: 2 in.
- Coating/Material: Zinc Galvanized, G90
- Country of Origin: United States
Approved Applications
- Solid sawn lumber framing applications
- Light-to-medium load joist connections
- High-wind and seismic (earthquake) loading conditions requiring increased uplift resistance
- Attachment to steel headers via welding, where weld size matches material thickness
Downloads and Resources
- Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
- Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
Note: Product dimensions and/or Screw or Bolt holes may differ from picture.
Frequently Asked Questions
What type of lumber is the LB216 designed for?
The LB216 is specifically designed for solid sawn lumber applications, making it suitable for standard framing projects using 2x16 dimensional lumber.
Can the LB216 be used in high-wind or seismic areas?
Yes. The LB216 is engineered with increased uplift loads, making it appropriate for use in earthquake or high-wind loading conditions where enhanced uplift resistance is required.
Can the LB216 be welded to a steel header?
Yes. It may be welded to steel headers with weld size to match material thickness. The minimum required weld to the top flanges is a 2" fillet weld to each side of each top-flange tab. Distribute the weld equally on both top flanges. Welding cancels the top and face nailing requirements. Consult the code for special considerations when welding galvanized steel, and ensure the area is well-ventilated.
What fasteners should be used when installing the LB216?
Use specified fasteners as directed in the specifications and nailer table notes provided in the installation documentation. Refer to the available load tables for fastener requirements based on your specific application.
