Product Description

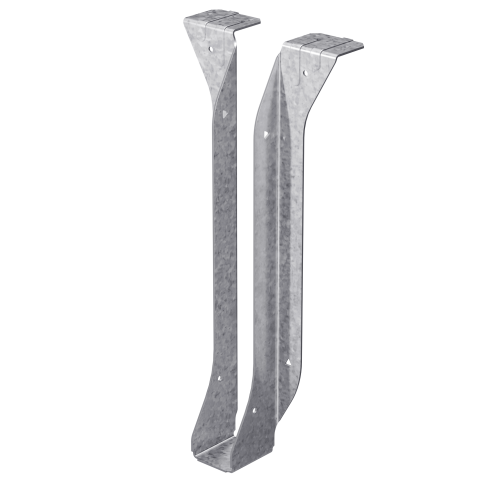

The Simpson LB212AZ ZMAX Galvanized Light-Bent Top-Flange Joist Hanger is a top-flange connector engineered for solid sawn lumber framing applications. Designed to support light-to-medium loads while providing uplift resistance, this cost-effective hanger delivers reliable performance for a wide range of wood framing projects. The ZMAX galvanized coating offers extra corrosion resistance, making it a practical choice for exterior builds and applications involving pressure-treated lumber.
Key Features
- Top-flange design for solid sawn lumber - seats securely over the header, keeping the joist flush and simplifying alignment during framing
- Designed to help resist download forces - provides dependable load transfer from the joist to the supporting structure, helping maintain framing integrity over time
- Unique two-level embossment on the top flange - adds stiffness to the hanger without adding bulk, improving performance under load while keeping the profile low-profile and manageable
- 14-gauge steel construction - delivers a solid strength-to-weight ratio suited for light-to-medium load applications in residential and light commercial framing
- ZMAX galvanization - provides extra corrosion resistance beyond standard zinc coatings, making this hanger appropriate for exterior environments and use with pressure-treated wood
- Load rated for use with a 2x or 3x nailer if required - adds installation flexibility when a nailer is needed, without compromising the hanger's rated performance
- Quick installation - straightforward fastening with specified nails reduces labor time and keeps the framing schedule on track
Why This Product
- Built for treated-wood and exterior framing - the ZMAX galvanized finish is specifically rated for extra corrosion resistance, making this hanger a dependable long-term choice where moisture exposure or pressure-treated lumber is a factor
- Cost-effective without sacrificing performance - engineered to handle light-to-medium loads with uplift resistance, this top-flange hanger gives framing crews a practical, value-driven connector for standard 2x12 joist applications
- Versatile nailer compatibility - load-rated for use with a 2x or 3x nailer when the installation calls for one, offering flexibility that accommodates a broader range of framing conditions
- Engineered stiffness where it counts - the two-level embossment on the top flange reinforces the hanger at a critical stress point, giving builders confidence that the connector will maintain its shape and load capacity once installed
Specifications
- Model No.: LB212AZ
- Member Size: 2x12
- Gauge: 14
- Seat Width: 1-9/16 in.
- Height: 11-1/8 in.
- Top Flange Depth: 1-7/16 in.
- Coating: ZMAX
- Finish: ZMAX
- Country of Origin: United States
- Installation Fasteners: Install with (6) 0.162 in. x 3-1/2 in. nails in the header and (2) 0.148 in. x 1-1/2 in. nails in the joist (sold separately)
Downloads and Resources
- Face-Mount Hangers - Solid Sawn Lumber (DF / SP) Tables
- Face-Mount Hangers - Solid Sawn Lumber (SPF / HF) Tables
Note: Product dimensions and/or Screw or Bolt holes may differ from picture. Please see item description for specifications.
Frequently Asked Questions
What size joist is the LB212AZ designed to support?
The LB212AZ is sized for a nominal 2x12 joist in solid sawn lumber applications.
What fasteners are required to install the LB212AZ?
Install with (6) 0.162 in. x 3-1/2 in. nails in the header and (2) 0.148 in. x 1-1/2 in. nails in the joist. Use specified fasteners and see nailer table notes; ledgers must be evaluated for each application separately, and the TF dimension, nail length, and nail location on the ledger should be checked.
Is the LB212AZ suitable for exterior or treated-wood applications?
Yes. The ZMAX galvanization on the LB212AZ offers extra corrosion resistance, making it appropriate for exterior and treated-wood applications.
Can the LB212AZ be used with a nailer?
Yes. The LBAZ has been load rated for use with a 2x or 3x nailer if required, providing added flexibility for various installation scenarios.
