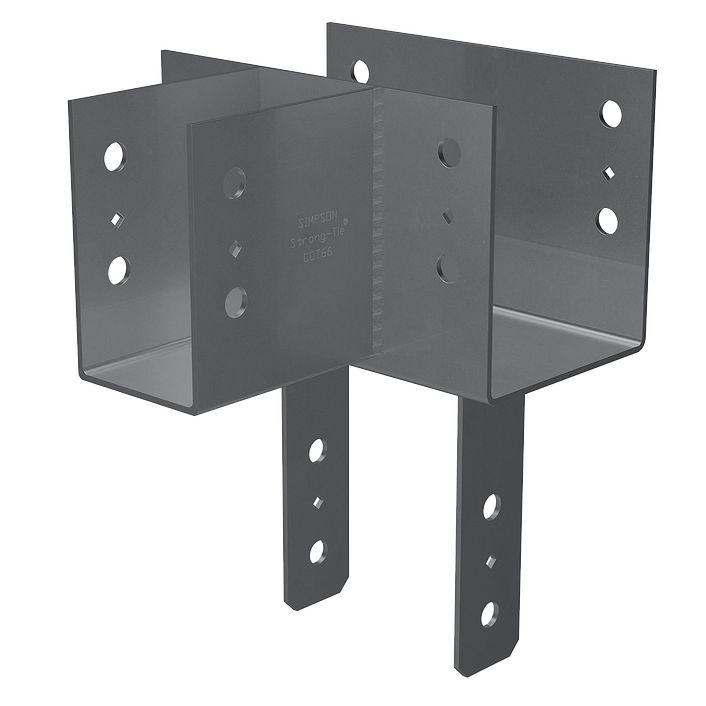

The Simpson CCT86X Column Cap is a heavy-duty engineered structural connector designed specifically for T-shape column-to-beam connections where two beams intersect on top of a single column. Built from 3-gauge steel with a gray paint finish, this column cap provides reliable load distribution from a bisecting beam at the connection point, making it a dependable choice for structural framing applications that demand certified, load-rated performance. With configurable W3 and H2 dimensions and NDS code-compliant bolt spacing, the CCT86X adapts to designer-specified requirements while meeting established structural standards.

Key Features

• T-Shape Column Cap Configuration - purpose-built for connections where two beams meet in a "T" formation on top of a single column, ensuring the connector matches the geometry of your structural layout without modification.
• 3-Gauge Steel Construction - heavy-gauge material delivers the strength and rigidity required for load-bearing column-to-beam connections in demanding structural framing applications.
• Gray Paint Finish with Hot-Dipped Galvanized Option Available - the standard finish provides corrosion resistance for typical applications, while the alternate hot-dipped galvanized finish is available for projects requiring enhanced protection.
• Configurable W3 and H2 Dimensions - allows the connector to be adapted to designer-specified beam and post size combinations, giving engineers and contractors the flexibility to meet project-specific requirements.
• NDS Code-Compliant Bolt Spacing - ensures the connector meets recognized structural standards, supporting code-required documentation and inspection approval on professional projects.
• Certified Welds - factory-certified weld quality supports consistent structural integrity at every connection point, reducing the risk of field-level inconsistencies.
• Fits 8x Beam and 6x Post - with a beam width of 7 1/2 in. and a post width of 5 1/2 in., this cap is sized to accommodate standard dimensional lumber used in timber framing and structural construction.

Why This Product

• Built for a Specific, Demanding Connection Type - the T-shape configuration addresses a structural scenario that standard column caps cannot handle, making the CCT86X the correct engineered solution for bisecting beam layouts rather than a workaround.
• Adaptable to Project Specifications - configurable W3 and H2 dimensions mean this connector can be tailored to designer requirements, reducing the need to source multiple connector models for varying beam and post combinations.
• Supports Code-Compliant Construction - NDS code-compliant bolt spacing and certified welds provide the documentation and performance consistency that structural engineers and building inspectors require on permitted projects.
• Finish Options for Different Environments - the availability of both gray paint and hot-dipped galvanized finishes means a single connector model can be specified across a wider range of exposure conditions and project environments.

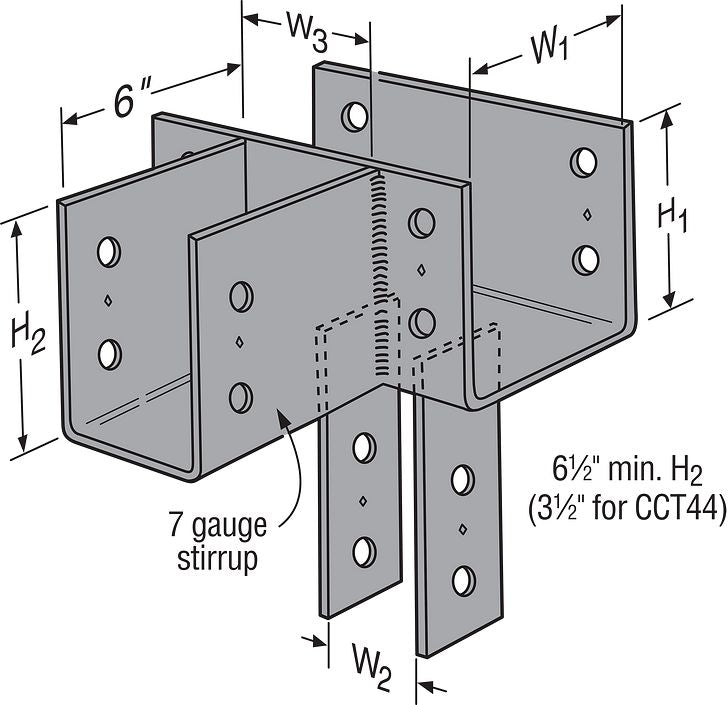

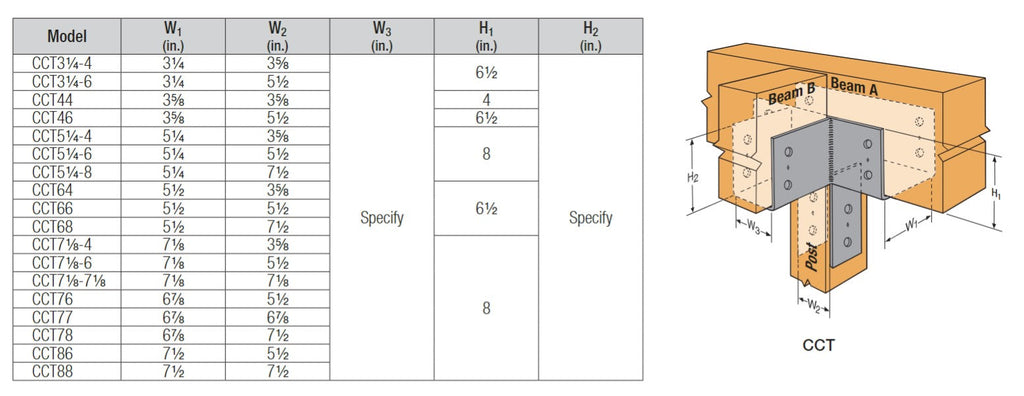

Specifications

• Specification: Value
• Model Number: CCT86X
• Configuration: CCT Column Cap - "T" Configuration
• Beam Size: 8x
• Post Size: 6x
• Width 1: 71/2 in.
• Width 2: 51/2 in.
• Length: 13 in.
• Height 1: 8 in.
• W3 & H2: Configurable
• Material / Gauge: 3 Gauge Steel
• Finish: Gray Paint
• Alternate Finish Available: Hot-Dipped Galvanized

Approved Applications

• Column-to-beam connections where two beams intersect in a "T" formation on top of a single column.
• Structural framing applications requiring certified, load-rated column cap connectors.
• Projects requiring load distribution from a bisecting beam at a column connection point.
• Applications requiring designer-specified combinations of beam and post sizes with configurable W3 and H2 dimensions.
• Projects where NDS code-compliant bolt spacing is required for structural integrity.

Options

• Finish: Standard Gray Paint or Hot-Dipped Galvanized
• Configurable Dimensions: Width W3 and Height H2 are configurable per designer specifications to accommodate varying beam and post size combinations.

For configurable options and custom requirements, Contact us.

Frequently Asked Questions

What beam and post sizes is the CCT86X designed to fit?

The CCT86X is engineered to accommodate an 8x beam and a 6x post. It features a beam width of 71/2 inches and a post width of 51/2 inches, with an overall length of 13 inches and a height of 8 inches.

What type of structural connection is the CCT86X built for?

The CCT86X is purpose-built for T-shape column-to-beam connections, specifically where two beams meet at a right angle in a "T" formation on top of a single column. It is designed to distribute the load from a bisecting beam while providing structural support at the connection point.

What material and finish is the CCT86X made from?

The CCT86X is fabricated from heavy-duty 3-gauge steel with a durable gray paint finish. It is also available in a hot-dipped galvanized finish for applications requiring enhanced corrosion resistance.

What quality and code standards does the CCT86X meet?

The CCT86X features certified welds for confidence in strength and loading across the connection assembly, and its bolt spacing is NDS code-compliant to ensure optimal performance in structural applications. It also includes diamond holes to assist with temporary fastening during installation.
