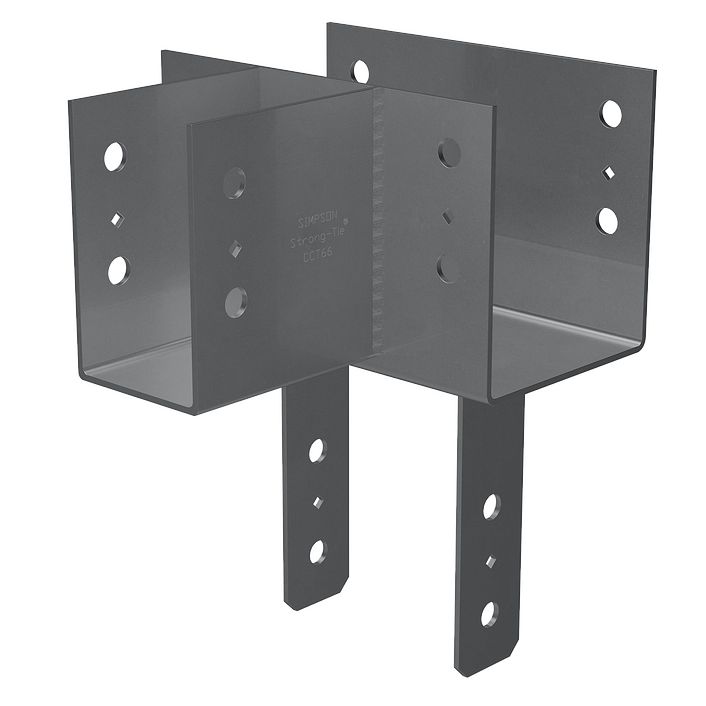

The Simpson CCT78X Column Cap is a heavy-duty structural connector engineered for column-to-beam connections where two beams meet in a T-formation on top of a single column. Designed for a 6-3/4 in. beam and an 8 in. post, this column cap effectively distributes load from a bisecting beam while delivering reliable structural support at the connection point. Fabricated from 3-gauge steel with a factory-applied gray paint finish, the CCT78X is built to perform in demanding structural applications where verified strength and code-compliant performance are essential.
Key Features
- T-Configuration Design - connects two beams meeting in a T-formation on top of a single column, making it the correct connector for intersecting beam layouts that a standard inline cap cannot accommodate.
- 3-Gauge Steel Construction - provides heavy-duty load capacity and long-term durability, giving builders confidence in the structural integrity of the connection over the life of the project.
- Factory-Applied Gray Paint Finish - offers surface protection right out of the box, reducing the need for additional field treatment before installation.
- Certified Welds - deliver verified strength and loading confidence, so structural performance at the connection point is not left to guesswork.
- NDS Code-Compliant Bolt Spacing - meets National Design Specification requirements, helping projects satisfy inspection and permitting standards without additional modification.
- Diamond Holes - allow for temporary fastening during alignment and installation, making it easier to position the cap accurately before final fastening.
- Configurable W3 and H2 Dimensions - accommodate a wider range of beam and post size combinations, so the connector can be adapted to the specific demands of your structural design.
Why This Product
- Purpose-Built for T-Intersection Framing - when a project calls for two beams meeting at a right angle on top of a post, the CCT78X is specifically engineered for that geometry, eliminating the need for custom fabrication or workaround solutions.
- Heavy-Gauge Steel for Structural Confidence - 3-gauge steel construction means this column cap is suited for demanding load conditions where lighter connectors would fall short, giving engineers and contractors a reliable solution for critical connection points.
- Code Compliance Built In - NDS-compliant bolt spacing and certified welds mean less time spent verifying the connection against code requirements and more confidence during inspections.
- Flexible Fit Across Project Types - with configurable width and height options, the CCT78X can be tailored to fit project-specific beam and post combinations, making it a practical choice for both standard builds and more specialized structural applications.

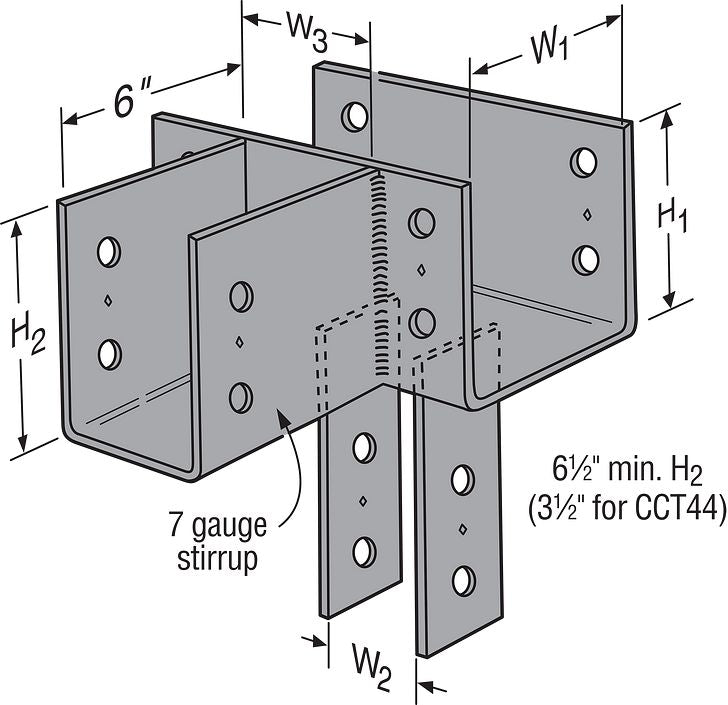

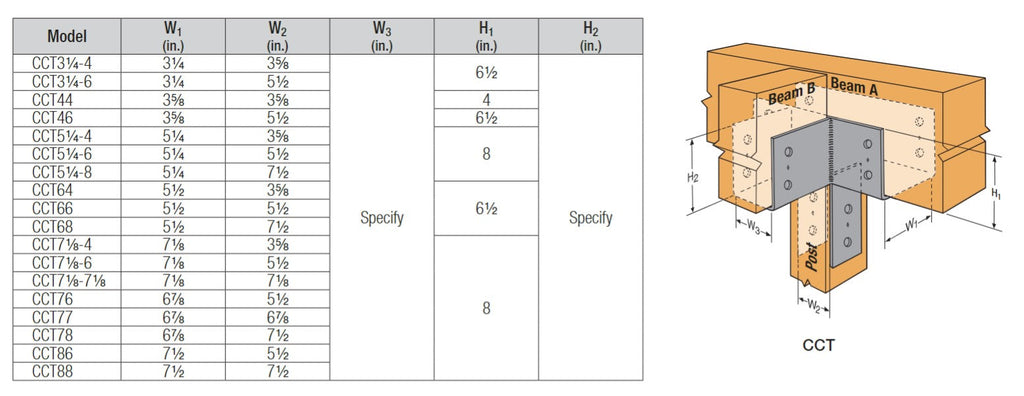

Specifications
- Specification: Value
- Model Number: CCT78X
- Configuration: CCT Column Cap - "T" Configuration
- Beam Size: 6-3/4 in.
- Post Size: 8 in.
- Width 1: 6-7/8 in.
- Width 2: 7-1/2 in.
- Width 3: Configurable
- Length: 13 in.
- Height 1: 8 in.
- Height 2: Configurable
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What beam and post sizes is the CCT78X designed to fit?
- The CCT78X is configured for a 6-3/4-inch beam and an 8-inch post. Additionally, the width dimension W3 and height dimension H2 are configurable options to accommodate a wider range of beam and post size combinations specific to your project.
- What does the "T" configuration mean for this column cap?
- The T configuration means the CCT78X is specifically designed to connect two beams that meet in a "T" formation on top of a single column. This allows the cap to distribute the load from a bisecting beam while providing structural support at the connection point.
- What material and finish is the CCT78X made from?
- The CCT78X is fabricated from 3-gauge steel, which provides heavy-duty load capacity and long-term durability. It features a factory-applied gray paint finish for surface protection.
- What installation and code compliance features does the CCT78X include?
- The CCT78X includes certified welds for verified strength and loading confidence, bolt spacing that meets NDS code requirements for optimal structural performance, and diamond holes that allow for temporary fastening during the installation process.
