Product Description

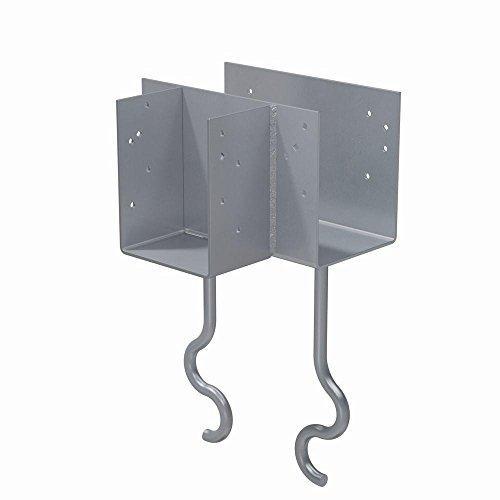

The Simpson T-Shape Column Cap for GFCMU and Concrete Piers with SDS Screws is a heavy-duty structural connector engineered for raised pier foundation systems where heavy beams bear on concrete masonry unit (CMU) or concrete pier columns. Built from 7-gauge steel with a hot-dip galvanized finish, this T-shape cap is designed specifically for non-corner, intermediate floor support beam locations, where its side stirrup accommodates intersecting support beams at 90 deg. angles. Packaged with 1/4 in. x 2 1/2 in. Strong-Drive SDS Heavy-Duty Connector Screws, it arrives ready for installation in high-wind and uplift-critical framing environments.
Key Features
- T-Shape Side Stirrup Configuration - accommodates intersecting support beams at 90 deg. angles, making this cap the right choice for intermediate, along-beam framing locations rather than corner posts
- 7-Gauge Steel Construction - heavy-gauge material provides the structural integrity needed to support heavy beam loads on CMU columns and concrete piers without flex or deformation
- Hot-Dip Galvanized Finish - delivers superior corrosion resistance compared to light coatings, extending service life in moisture-exposed pier foundation and outdoor structural environments
- SDS Screws Included - 1/4 in. x 2 1/2 in. Strong-Drive SDS Heavy-Duty Connector Screws are included in the box, so installation is not delayed by sourcing compatible fasteners separately
- Designed for Raised Pier Foundation Systems - approved geometry and sizing match the demands of applications where beams must be positively captured and anchored at the top of concrete or GFCMU columns
- 3 5/8 in. Main Channel and Side Stirrup Width - consistent channel widths on both the main seat and the side stirrup simplify beam alignment and reduce layout time on the job site
Why This Product
- Purpose-Built for Masonry Pier Connections - unlike general-purpose post caps, this connector is specifically approved for concrete and GFCMU column applications, giving builders and inspectors confidence that the right hardware is being used for the right foundation type
- Hardware-Included Convenience - the inclusion of Simpson Strong-Drive SDS screws means the connector and its compatible fasteners arrive together, reducing the chance of mismatched hardware reaching the field
- Reliable in High-Wind and Uplift-Critical Conditions - the heavy-gauge steel body and hot-dip galvanized finish combine structural strength with corrosion resistance, supporting use in environments where both weather exposure and uplift forces are primary design concerns
- Engineered for the Intermediate Beam Position - the T-shape geometry is specifically intended for non-corner, along-beam locations, so framers working on complex floor systems can select the correct cap geometry with confidence rather than adapting a standard cap to fit

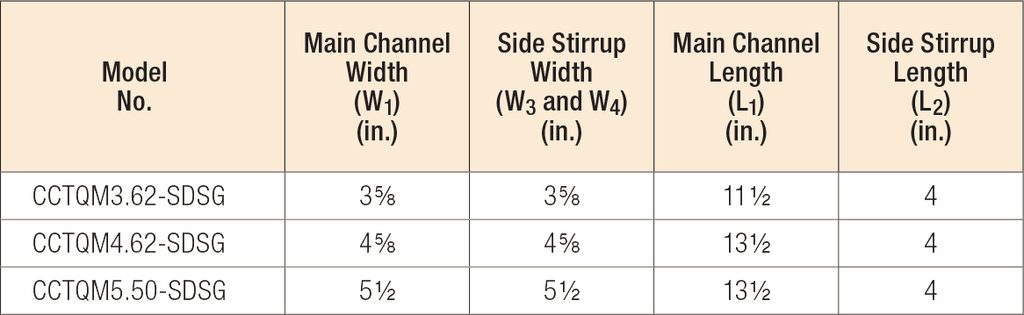

Specifications
- Model Number: CCTQM3.62-SDSG
- Description: 3.62" Masonry CC T-Shape w/ SDS Screws HDG

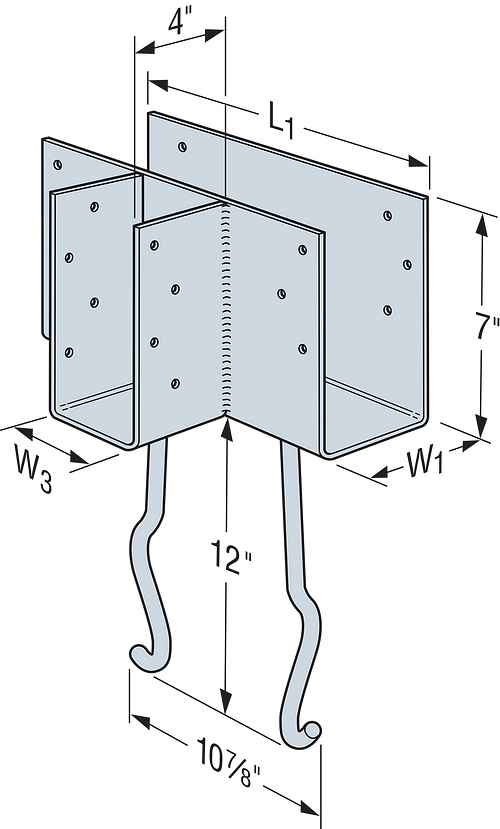

- Main Channel Width (W1): 3 5/8 in.
- Side Stirrup Width (W3 and W4): 3 5/8 in.
- Main Channel Length (L1): 11 1/2 in.
- Side Stirrup Length (L2): 4 in.
- Material: 7 Gauge Steel
- Finish: Hot-Dip Galvanized (HDG)
- Fasteners Included: 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector Screws
- Country of Origin: United States
Approved Applications
- Raised pier foundation systems
- Applications where heavy beams rest on concrete or concrete masonry unit (CMU/GFCMU) columns
- Non-corner, along-beam floor support beam locations
- Intermediate beam connections requiring 90-degree side stirrup support
- High-wind and uplift-critical structural framing environments
What's Included
- 1x Simpson CCTQM3.62-SDSG T-Shape Column Cap
- 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector Screws (included)
Frequently Asked Questions
- What type of foundation or column is this cap designed to work with?
- The CCTQM3.62-SDSG is designed for use with concrete masonry unit (CMU) columns and concrete piers, making it well suited for raised pier foundation applications where heavy beams bear on these column types.
- What makes this a "T-shape" cap, and when should it be used instead of a standard cap?
- The T-shape designation refers to the side stirrup that accommodates intersecting support beams at 90 deg. angles. This cap is intended for non-corner, intermediate floor support beam locations along a run of framing - not for corner positions - making it the appropriate choice when support beams meet at a mid-span pier location.
- What anchor bolt is this cap designed to be used with?
- The CCTQM3.62-SDSG is designed for use with Simpson Strong-Tie SSTB anchor bolts. The SSTB offset design allows the cap to be installed flush to the edge of the pier for clean, precise placement.
- What material and finish is this column cap made from, and why does it matter?
- This cap is constructed from 7-gauge steel and features a hot-dip galvanized (HDG) finish, which provides superior corrosion resistance. This makes it well suited for demanding environments where exposure to moisture or harsh conditions is a concern.
