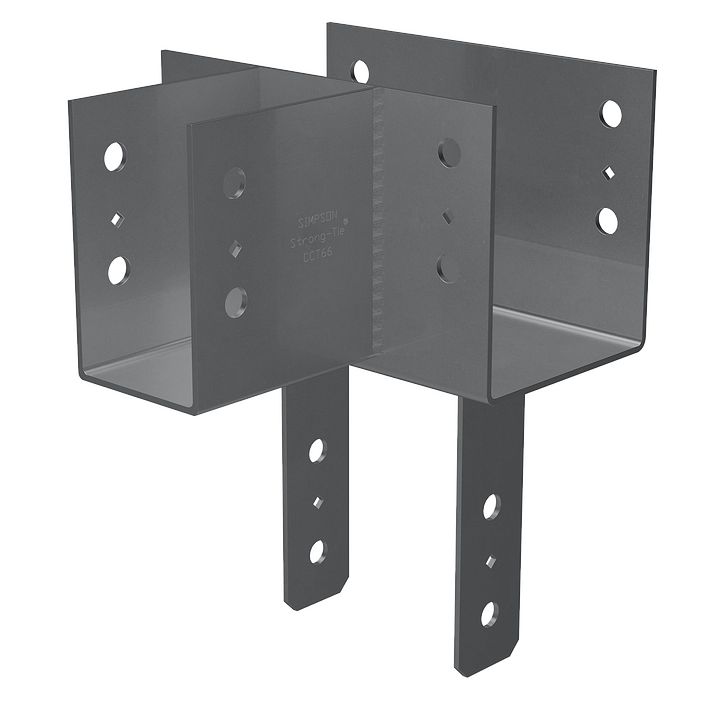

The Simpson CCT68X Column Cap is an engineered structural connector purpose-built for column-to-beam connections where two beams meet in a T-formation on top of a single column. Fabricated from 7-gauge steel with a durable gray paint finish, this heavy-duty column cap is designed specifically for a 6x beam and 8x post, delivering reliable load distribution from a bisecting beam to the supporting column below. With fixed primary dimensions alongside configurable width and height parameters, the CCT68X can be tailored to the exact requirements of the structural designer, making it a dependable choice for demanding structural framing applications.
Key Features
- T-shape configuration - engineered specifically for two beams meeting at a right angle on top of a single column, ensuring proper load transfer at complex framing intersections
- 7-gauge steel construction - provides heavy-duty strength and rigidity suitable for demanding load-bearing column-to-beam connections
- Gray paint finish - offers a durable protective coating for interior structural framing applications, with hot-dipped galvanized available as an alternate finish for corrosive environments
- Designed for 6x beam and 8x post - precise sizing compatibility means the connector fits correctly without modification, supporting a secure and structurally sound connection

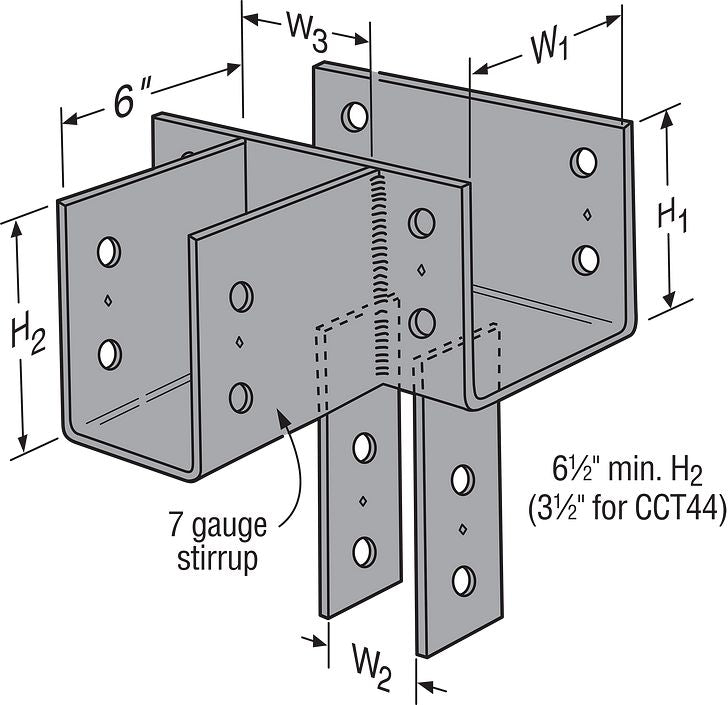

- Configurable Width 3 and Height 2 dimensions - allows the connector to be adapted to project-specific requirements, giving structural designers flexibility without compromising the primary connection geometry
- Fixed primary dimensions - consistent Width 1, Width 2, Length, and Height 1 values ensure repeatable, predictable performance across qualifying structural framing applications
Why This Product
- Purpose-built T-configuration geometry - rather than adapting a generic connector, this column cap is specifically engineered for the T-formation two-beam-on-one-column scenario, reducing field improvisation and supporting a cleaner, more reliable connection
- Customizable fit within a proven structural form - the combination of fixed primary dimensions with configurable width and height parameters means the connector can meet precise project specifications while retaining its engineered structural integrity
- Hot-dipped galvanized finish available - buyers working in exposed or corrosive environments have a finish option that extends the service life of the connection without sourcing a different product entirely
- Heavy-gauge steel for load-bearing confidence - the 7-gauge steel construction ensures the connector can handle the concentrated forces typical of column-to-beam junctions in structural framing, providing long-term reliability at a critical connection point

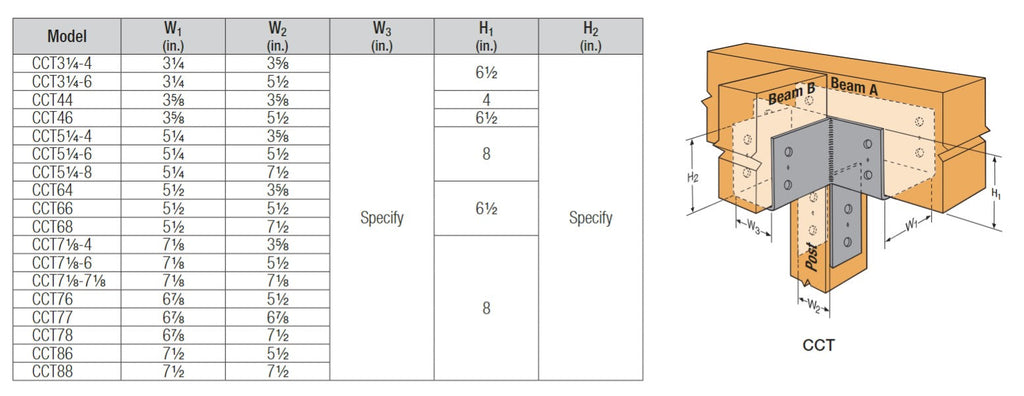

Specifications
- Attribute: Value
- Model Number: CCT68X
- Series: CCT Column Cap - T Configuration
- Beam Size: 6x
- Post Size: 8x
- Width 1: 51/2 in.
- Width 2: 71/2 in.
- Length: 11 in.
- Height 1: 61/2 in.
- Width 3: Configurable
- Height 2: Configurable
- Material: 7 Gauge Steel
- Finish: Gray Paint
- Alternate Finish: Hot-Dipped Galvanized (available)
- Configuration: T-Shape
- Custom Order: Yes - Non-Returnable
Approved Applications
- Column-to-beam connections featuring two beams in a "T" formation on top of a structural column.
- Load distribution from a bisecting beam to the supporting column below.
- Structural framing
Frequently Asked Questions
- What beam and post sizes is the CCT68X designed for?
- The CCT68X is designed specifically for a 6x beam and an 8x post, making it suitable for structural applications where those lumber dimensions are used at the column-to-beam connection point.
- What type of connection configuration does the CCT68X support?
- The CCT68X is engineered for a T-configuration, meaning it is designed to connect two beams meeting in a "T" formation on top of a single column. This allows it to effectively distribute load from a bisecting beam at the connection point.
- What material and finish is the CCT68X made from?
- The CCT68X is precision-fabricated from 7-gauge steel with a durable gray paint finish, providing robust strength for demanding load-bearing applications.
- Is the CCT68X a standard stocked item, and can its dimensions be customized?
- The CCT68X is a custom order part. It features configurable width (W3) and height (H2) parameters, allowing the connector to be tailored to specific structural design requirements. Configurable options and special order details must be confirmed prior to fabrication.
