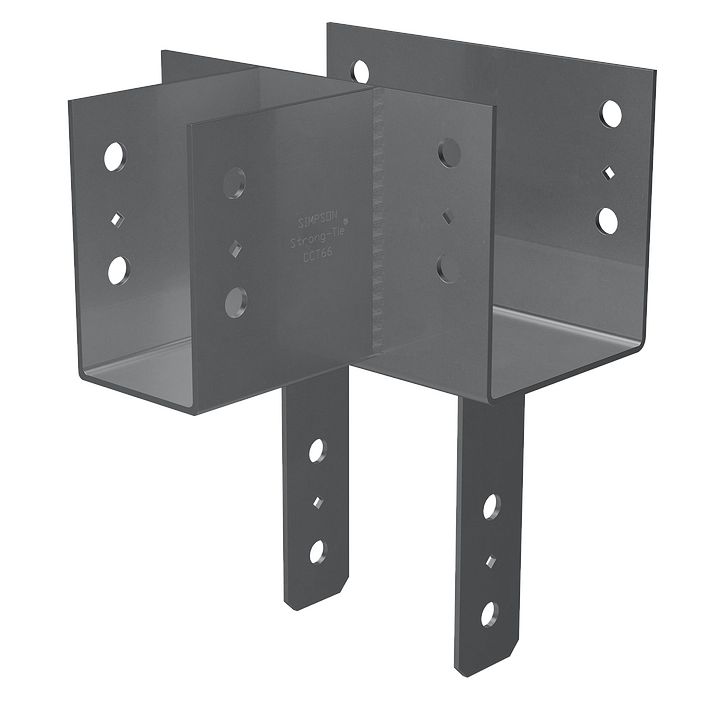

The Simpson CCT64X is an engineered structural connector purpose-built for T-shape column-to-beam connections, where two beams meet in a "T" formation on top of a single column. Designed to accept a 6x beam and a 4x post, this heavy-duty column cap efficiently distributes load from a bisecting beam while securing post and beam members with a reliable, code-compliant connection. With configurable W3 and H2 dimensions, the CCT64X is specified per designer details to accommodate project-specific requirements, making it a trusted choice for complex structural framing applications.
Key Features
- T-Shape configuration for intersecting beam connections - purpose-engineered for the specific geometry where two beams meet at a single post, ensuring proper load path and structural integrity at these critical junctions.
- 7-gauge steel construction with durable gray paint finish - delivers heavy-duty strength and corrosion resistance suited to demanding structural framing environments.
- Certified engineered welds - provide reliable load-bearing performance you can count on for long-term structural integrity without concern about joint failure.
- NDS-compliant bolt spacing - meets National Design Specification code requirements, simplifying the inspection and approval process on regulated construction projects.
- Integrated diamond holes for temporary fastening during installation - allow for quick alignment and positioning of the connector before final fastening, reducing installation time and improving accuracy.
- Configurable W3 and H2 dimensions - allow the CCT64X to be adapted to project-specific design requirements, giving engineers and builders flexibility without sacrificing structural precision.
Why This Product
- Engineered specifically for T-shape post-to-beam framing - unlike general-purpose connectors, the CCT64X is designed from the ground up for the exact geometry of a bisecting beam on a single column, reducing the risk of improper connections at these structurally demanding junctions.
- Code-compliant by design - NDS-compliant bolt spacing and certified engineered welds mean the connector is built to meet structural codes from the start, helping projects pass inspection with confidence.
- Installation-friendly features reduce on-site complexity - integrated diamond holes allow temporary fastening during positioning, making alignment straightforward even in difficult framing conditions.
- Adaptable to a range of project requirements - with configurable W3 and H2 parameters, this column cap can be tailored to designer specifications, making it a practical solution for both standard and custom structural framing situations.

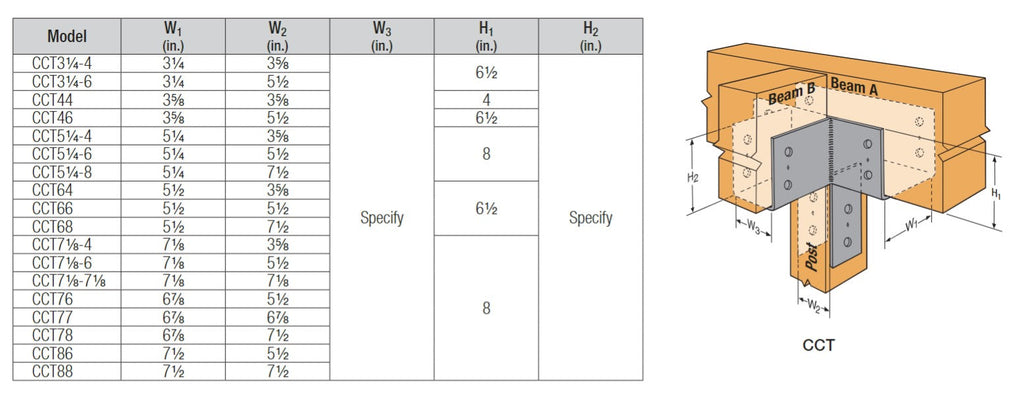

Specifications
- Model Number: CCT64X
- Configuration: T-Shape Column Cap
- Beam Size: 6x
- Post Size: 4x
- Width 1: 5 1/2
- Width 2: 3 5/8
- Length: 11
- Height 1: 6 1/2

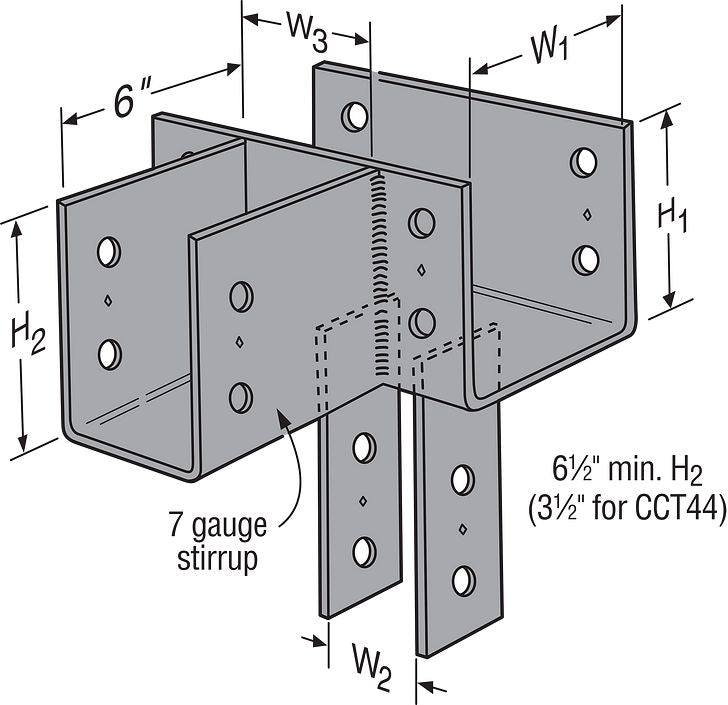

- Width W3 & Height H2: Configurable
- Material: 7 Gauge Steel
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What beam and post sizes is the CCT64X designed to fit?
- The CCT64X is configured to accept a 6x beam and a 4x post. Additional width (W3) and height (H2) dimensions are available as configurable parameters to meet project-specific design requirements.
- What type of structural connection does the CCT64X support?
- The CCT64X is specifically engineered for T-shape column-to-beam connections, where two beams meet in a "T" formation on top of a single column. This configuration allows it to efficiently distribute the load from a bisecting beam while securing the post and beam members together.
- What material and finish is the CCT64X made from?
- The CCT64X is fabricated from 7-gauge steel with a durable gray paint finish.
- What design and code compliance features does the CCT64X include?
- The CCT64X includes certified engineered welds for reliable load-bearing performance, NDS-compliant bolt spacing that meets National Design Specification code requirements, and integrated diamond holes that allow for temporary fastening during installation to simplify alignment and positioning.
