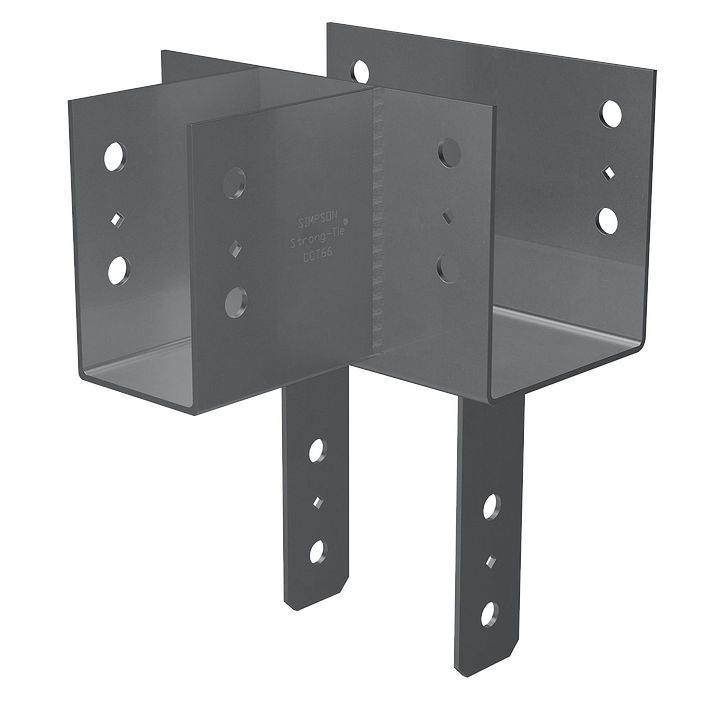

The Simpson CCT7 1/8-4X Column Cap is engineered to deliver robust, reliable column-to-beam connections wherever two beams meet in a T-formation on top of a single column. By channeling and distributing the load from a bisecting beam into the supporting post below, this heavy-duty column cap maintains structural integrity at one of the most complex load-transfer points in timber-frame and post-and-beam construction. Fabricated from 3-gauge steel with a durable gray paint finish, the CCT7 1/8-4X is purpose-built for 7x beam and 4x post applications, with configurable W3 and H2 dimensions available to match project-specific design requirements.

Key Features

• T-configuration design - purpose-engineered for intersecting beam connections, ensuring accurate load transfer from a bisecting beam down into the supporting post at one of the most demanding structural junctions in heavy timber framing
• 3-gauge steel construction - delivers the heavy-duty strength required for load-bearing column cap applications, giving builders confidence in long-term structural performance
• Gray paint finish - provides a durable protective coating suitable for standard interior and sheltered exterior installations, reducing the risk of surface deterioration in typical conditions
• Certified welds - offer verified strength and load performance at every joint, supporting confidence during inspections and in demanding structural applications
• Bolt spacing meets NDS code requirements - simplifies the approval process and helps ensure compliance with national design standards without requiring field modifications
• Configurable W3 and H2 dimensions - allows the connection to be adapted to match precise project specifications, reducing the need for custom fabrication on complex timber-frame builds
• Hot-Dipped Galvanized finish option available - extends the usability of this column cap into corrosive or high-moisture environments where a standard paint finish may not be adequate

Why This Product

• Built for a uniquely challenging connection point - the T-configuration addresses one of the most structurally complex intersections in post-and-beam construction, distributing bisecting beam loads directly into the column below with a connector designed specifically for that purpose
• Heavy-gauge steel where it matters most - 3-gauge steel construction means this column cap is not a light-duty compromise; it is sized and fabricated for the real demands of timber-frame and heavy post-and-beam applications
• Flexibility without custom fabrication - with configurable W3 and H2 dimensions, this connector can be adapted to meet designer-specified requirements, making it a practical choice for projects where standard off-the-shelf dimensions fall short
• Code-conscious design - certified welds and NDS-compliant bolt spacing mean this column cap is built with inspection and approval in mind, helping to keep projects on schedule without last-minute compliance concerns

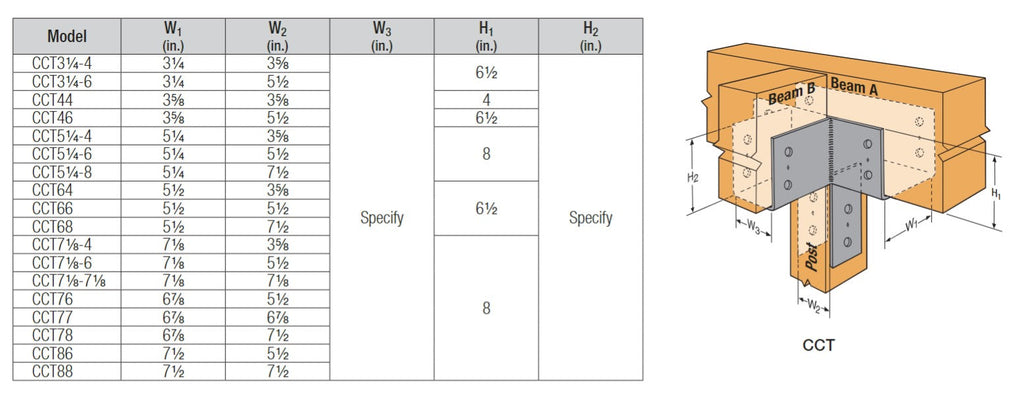

Specifications

• Specification: Value
• Model Number: CCT7 1/8-4X
• Configuration: CCT Column Cap - T Configuration
• Beam Size: 7x Beam
• Post Size: 4x Post

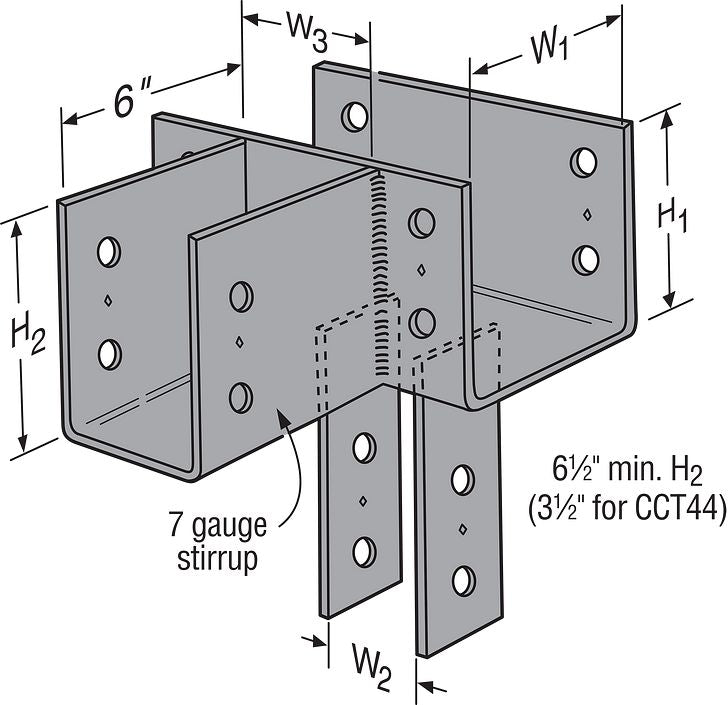

• W1 - Beam Width: 7" in.
• W2 - Post Width: 3" in.
• L - Length: 13 in.
• H1 - Height: 8 in.
• W3 Width & H2 Height: Configurable
• Material / Gauge: 3 Gauge Steel
