Product Features
Product Description

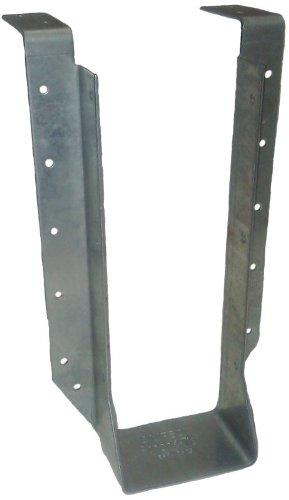

The Simpson Strong-Tie HU412TF HUTF Galvanized Top-Flange Joist Hanger for 4x12 is a heavy-duty hybrid hanger engineered by Simpson Strong-Tie to deliver the combined advantages of both face-mount and top-mount hanger designs. Built for 4x12 nominal joist applications, this top-flange face mount hanger provides maximum down loads with a minimum number of fasteners, making it a dependable structural solution for demanding framing assemblies. Face-nailing capability ensures a secure, code-compliant attachment to the supporting member.
Key Features
- Hybrid design incorporates the advantages of both face-mount and top-mount hangers for versatile installation
- Face-nailing allows the hanger to be securely attached to the member
- The hanger can be skewed a maximum of 45 deg. or sloped downward to a maximum of 45 deg.
- HUTF-series hangers are tested, load rated and code compliant
- Made from 12-gauge steel for heavy-duty structural performance
- Galvanized (G90) for extra corrosion resistance
- Seat width: 3-9/16 in.
- Nominal joist size: 4x12
- Rough beam sizes are available by special order
- Designed to provide maximum down loads with a minimum number of fasteners
Specifications
- MPN: HU412TF
- Brand: Simpson Strong-Tie
- Member Size: 4x12
- Seat Width (W): 3-9/16 in.
- Height (H): 11 in.
- B Dimension: 2-1/2 in.
- TF Dimension: 2-1/2 in.
- Gauge: 12
- Coating/Finish: Zinc Galvanized, G90
- Country of Origin: United States
- Installation Fasteners: Install with (16) 0.162 in. x 3-1/2 in. nails in the header and (6) 0.148 in. x 3 in. nails in the joist (sold separately)
Options
- Contact us for additional options or special order inquiries
Frequently Asked Questions
- What makes the HU412TF a hybrid hanger?
- The HU412TF is considered a hybrid hanger because it incorporates the advantages of both face-mount and top-mount hanger designs. It features face-nailing for secure attachment to the supporting member while also utilizing a top-flange connection, offering greater versatility and load performance than either style alone.
- What fasteners are required to install the HU412TF?
- Installation requires (16) 0.162 in. x 3-1/2 in. nails in the header and (6) 0.148 in. x 3 in. nails in the joist.
- Can the HU412TF be used at an angle?
- Yes. The hanger can be skewed a maximum of 45 deg. or sloped downward to a maximum of 45 deg., providing flexibility for angled framing applications.
- Is the HU412TF code compliant and corrosion resistant?
- Yes. HUTF-series hangers are tested, load rated, and code compliant. The HU412TF is finished with a Zinc Galvanized G90 coating for extra corrosion resistance, making it suitable for use in environments where moisture exposure is a concern.
Note: Product dimensions and/or fastener holes may differ from picture. Please see item description for specifications.
