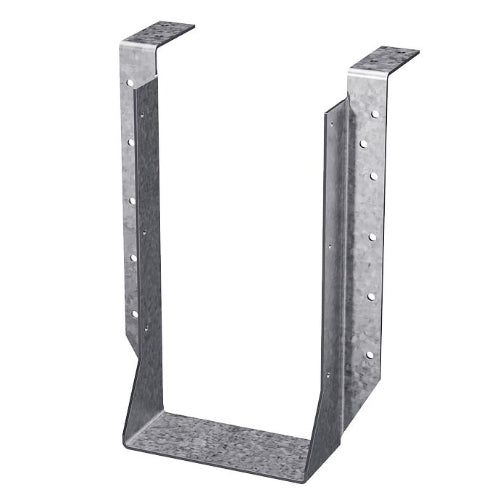

Simpson 6 x 12 Top-Flange Face Mount Hanger, Galvanized (HU612TF) - is a heavy-duty hybrid joist hanger engineered by Simpson Strong-Tie that combines the structural advantages of both face-mount and top-mount hanger designs. Built for demanding framing applications, this hanger delivers secure, reliable connections for 6x12 lumber members while offering the versatility of face-nailing for firm attachment and an optional concealed "A" flange configuration for a cleaner finished installation.
Key Features
- Hybrid HUTF design incorporates advantages of both face-mount and top-mount hangers
- Heavy-duty 12-gauge steel construction for high-load framing applications
- Face-nailing capability allows the hanger to be securely attached to the header member
- Top-flange design provides positive bearing surface on the top of the supporting member
- Available with one "A" flange concealed for versatile installation configurations
- Zinc Galvanized G90 coating provides corrosion resistance for long-term durability
- Made in the United States
Specifications
- Model Number: HU612TF
- Joist Size: 6x12
- Gauge (Ga.): 12

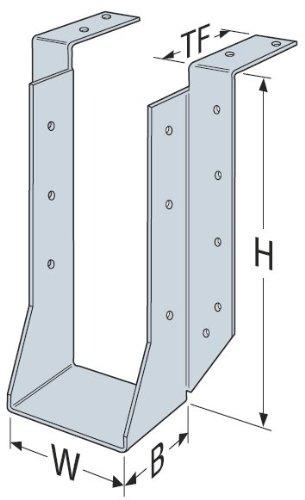

- W (in.): 5.5
- H (in.): 11
- B (in.): 2.5
- TF (in.): 2.5
- Coating/Material: Zinc Galvanized, G90
- Country of Origin: United States
Options
Frequently Asked Questions
- What makes the HU612TF a "hybrid" hanger?
- The HU612TF belongs to Simpson's HUTF hanger series, which is described as a hybrid because it incorporates the advantages of both face-mount and top-mount hanger designs into a single product. This means it can be face-nailed to a header member like a traditional face-mount hanger while also providing a top-flange bearing surface like a top-mount hanger.
- What size lumber is the HU612TF designed to support?
- The HU612TF is specifically sized for 6x12 lumber members. Its internal width of 5.5 inches and height of 11 inches are dimensioned to properly seat and support nominal 6x12 joists or beams.
- What type of corrosion protection does the HU612TF have?
- The HU612TF features a Zinc Galvanized G90 coating, which provides a layer of zinc protection against rust and corrosion, making it suitable for use in environments where moisture exposure is a concern.
- What gauge steel is used in the HU612TF?
- The HU612TF is constructed from 12-gauge steel, which qualifies it as a heavy-duty hanger capable of handling the substantial loads associated with 6x12 framing members in structural applications.
