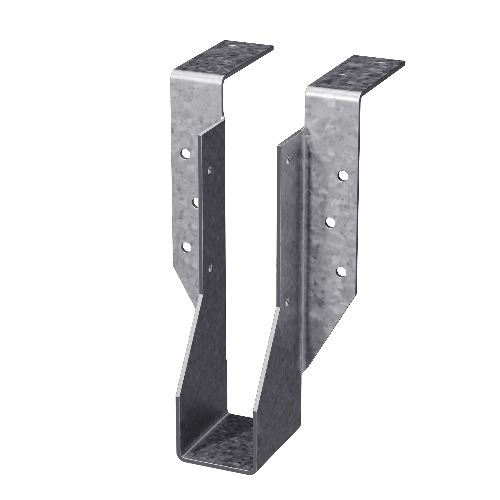

The Simpson Strong-Tie HU28TF HUTF Galvanized Top-Flange Joist Hanger for 2x8 is a heavy-duty hybrid hanger engineered to incorporate the advantages of both face-mount and top-mount hangers. Designed by Simpson Strong-Tie, this top-flange hanger delivers maximum down loads with a minimum number of fasteners, making it a reliable and efficient solution for 2x8 joist connections in structural framing applications. Face-nailing capability ensures the hanger is securely attached to the member for a strong, code-compliant connection.
Key Features
- Hybrid design incorporates the advantages of both face-mount and top-mount hangers
- Face-nailing allows the hanger to be securely attached to the member
- Rough beam sizes are available by special order
- The hanger can be skewed a maximum of 45 deg. or sloped downward to a maximum of 45 deg.
- HUTF-series hangers are tested, load rated and code compliant
- Seat width: 1-9/16 in.
- Nominal joist size: 2x8
- Made from 12-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
- MPN: HU28TF
- Brand: Simpson Strong-Tie
- Member Size: 2x8
- Width: 1-9/16 in.
- Height: 7-1/8 in.
- Seat Depth: 2-1/4 in.
- Top Flange: 2-7/16 in.
- Gauge: 12
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Country of Origin: United States
- Install With: Install with (10) 0.162 in. x 3-1/2 in. nails in the header and (4) 0.148 in. x 1-1/2 in. nails in the joist (sold separately)
Options
- Contact us for additional options or special order inquiries
Frequently Asked Questions
- What type of hanger is the HU28TF and what makes it unique?
- The HU28TF is a hybrid hanger that incorporates the advantages of both face-mount and top-mount hangers. It features face-nailing that allows the hanger to be securely attached to the member, while the top-flange design provides maximum down loads with a minimum number of fasteners.
- What joist size is the HU28TF designed to support?
- The HU28TF is designed for a nominal joist size of 2x8, with a seat width of 1-9/16 in.
- Can the HU28TF be used at an angle?
- Yes. The hanger can be skewed a maximum of 45 deg. or sloped downward to a maximum of 45 deg., providing flexibility for angled framing installations.
- What fasteners are required to install the HU28TF?
- Install with (10) 0.162 in. x 3-1/2 in. nails in the header and (4) 0.148 in. x 1-1/2 in. nails in the joist. The HUTF-series hangers are tested, load rated and code compliant when installed with the specified fasteners.
Note: Product dimensions and/or fastener holes may differ from picture. Please see item description for specifications.
