Product Description

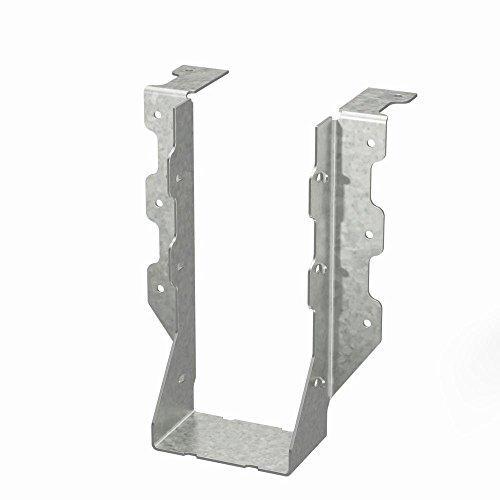

The Simpson Strong-Tie HUS28-2TF HUS Galvanized Top-Flange Joist Hanger for Double 2x8 is a heavy-duty face-mount hanger engineered for applications where higher load values are required. Designed to support double 2x8 joists, rafters, or beams, this top-flange hanger combines the strength of double-shear nailing with a face-mount design to deliver exceptional load capacity and installation efficiency. Constructed from 12-gauge steel with a G90 zinc galvanized coating, it is built to resist corrosion in demanding environments.
Key Features
- Features double-shear nailing which distributes the load through two points on each joist nail for greater strength
- Allows for the use of fewer nails, faster installation and the use of standard nails for all connections
- Do not bend or remove tabs
- Seat width: 3-1/8 in.
- Nominal joist size: Double 2x8
- Made from 12-gauge steel
- Galvanized (G90) for extra corrosion resistance
- Made in the United States
Specifications
- Model Number: HUS28-2TF
- Member Size: Double 2x8
- Gauge: 14
- Seat Width: 3-1/8 in.
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Install With: 0.162 in. x 3-1/2 in. nails (sold separately)
- Height: 7-1/4 in.
- Seat Depth: 2 in.
- Top Flange: 1-7/8 in.
- Country of Origin: United States
Options
- Contact us for Configurable Options and Special orders. Some products available in HDG.
Frequently Asked Questions
- What size joist is the HUS28-2TF designed to support?
- The HUS28-2TF is specifically designed for a nominal joist size of Double 2x8, making it ideal for applications requiring support of doubled lumber members.
- What type of nails are required to install the HUS28-2TF?
- Installation requires 0.162 in. x 3-1/2 in. nails. All specified fasteners must be used to ensure a code-compliant and structurally sound connection.
- What does double-shear nailing mean and why does it matter?
- Double-shear nailing distributes the load through two points on each joist nail rather than one. This method increases connection strength and allows for the use of fewer nails while still achieving higher load values compared to standard single-shear connections.
- Can the tabs on the HUS28-2TF be bent or removed to fit a specific application?
- No. The tabs on the HUS28-2TF must not be bent or removed. Modifying the tabs compromises the structural integrity of the hanger and may void load ratings and code compliance.
Note: Product dimensions and/or screw or bolt holes may differ from picture. Please see item description for specifications.
