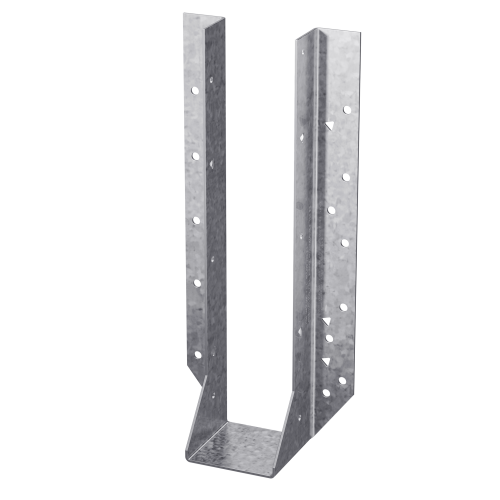

The Simpson Heavy Face-Mount Joist Hanger HU2.75/14 is a heavy-duty structural connector engineered for face-mount joist-to-header and joist-to-beam connections in residential and commercial wood-frame construction. Built by Simpson to meet the demands of applications where standard hangers fall short, this hanger delivers dependable load transfer at joist bearing points and is sized for standard 2-3/4 in. dimensional lumber members.

Key Features

• 14-Gauge Steel Construction - Provides the heavy-duty structural capacity required for framing connections where additional strength and elevated safety factors are critical.
• Face-Mount Design - Installs directly to the face of the header or beam, allowing for straightforward positioning and reliable load transfer without complicated rigging or shimming.
• Zinc Galvanized G90 Coating - Offers strong corrosion resistance, making this hanger suitable for use with treated lumber and in moisture-exposed framing environments.
• Configurable Seat Options - Select configurations support a skewable seat and slope angles of up to 45 deg., giving contractors flexibility to address non-standard framing conditions without sourcing a separate product.
• Broad Application Range - Approved for residential and commercial structural framing, covering joist-to-header, joist-to-beam, and other connections where heavy-duty load transfer is required at bearing points.

Why This Product

• Purpose-Built for High-Demand Framing - The HU series is specifically designed for structural connections requiring additional strength and safety factors, making it a reliable choice when a standard hanger is not rated for the job.
• Corrosion Protection You Can Count On - The G90 zinc galvanized finish is well-suited to treated lumber and damp framing environments, helping the hanger maintain its structural integrity over the life of the assembly.
• Adaptable to Complex Framing Conditions - The availability of skewed and sloped seat configurations - up to 45 deg. - means this hanger can address angled or non-standard framing layouts without requiring a custom solution.
• Domestic Fabrication by a Trusted Brand - Produced in the United States by Simpson, a name widely recognized in structural connector manufacturing, giving buyers confidence in consistent quality and material standards.

Specifications

• Model No.: HU2.75/14
• Gauge (Ga.): 14
• Width: 2-3/4
• Height: 13
• Seat Depth: 2-1/2
• Coating / Material: Zinc Galvanized, G90
• Country of Origin: United States

Approved Applications

• Structural framing connections requiring additional strength and safety factors
• Face-mount joist-to-header and joist-to-beam connections
• Residential and commercial wood-frame construction
• Applications where heavy-duty load transfer is required at joist bearing points
• Installations utilizing standard 2-3/4 in. dimensional lumber members

Configurable Options

Some models of this heavy-duty, face-mount hanger can be configured with a skewable seat and a seat that slopes as far as up to 45 degrees. for configurable options and details.

Frequently Asked Questions

What gauge steel is the HU2.75/14 made from?

The HU2.75/14 is fabricated from 14-gauge steel, providing the heavy-duty structural capacity the HU series is designed to deliver.

What are the dimensions of this joist hanger?

The HU2.75/14 has a width (W) of 2-3/4 in., a height (H) of 13 in., and a B dimension of 2-1/2 in. Note that product dimensions and/or fastener holes may differ from picture.

What type of coating does the HU2.75/14 have?

This hanger features a Zinc Galvanized G90 coating, offering a strong level of corrosion protection suitable for use with treated lumber and in moisture-exposed framing environments.

Where is the HU2.75/14 manufactured?

The HU2.75/14 is manufactured in the United States.

Note: Product dimensions and/or fastener holes may differ from picture. Please see item description for specifications.
