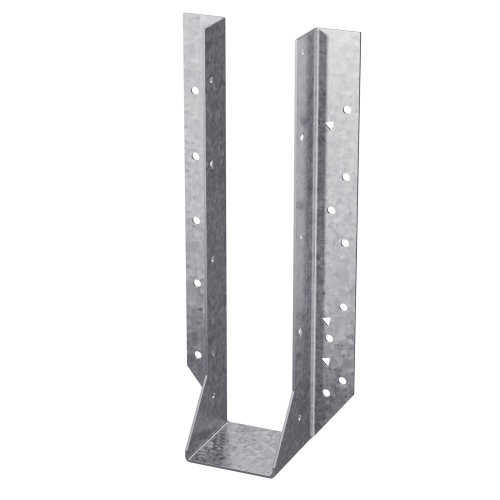

The Simpson HU28-4 Galvanized Face-Mount Joist Hanger is a heavy-duty structural connector engineered by Simpson to support quad 2x8 members in applications where additional load capacity and safety factors are critical. Built from 14-gauge steel with a G90 zinc galvanized finish, this face-mount hanger delivers the dependable performance that engineers and contractors rely on across residential framing, deck construction, and commercial building projects alike.

Key Features

• "U" design allows for flexibility of placement on the header - gives installers greater positioning versatility during framing, reducing layout constraints and saving time on the job.
• Designed for a nominal quad 2x8 joist member - purpose-built to handle the combined load demands of four 2x8 members, making it well-suited for heavy-duty structural connections.
• Constructed from 14-gauge steel - the heavier gauge material provides the added strength and rigidity required for structural applications with elevated safety requirements.
• G90 zinc galvanized coating - offers extra corrosion resistance to help the hanger hold up in moisture-prone environments and extend service life in demanding conditions.

Why This Product

• Heavy-duty capacity for demanding framing applications - engineered specifically for structures requiring additional strength and safety factors, this hanger is a reliable choice when standard hangers are not sufficient for the load.
• Trusted engineering from a proven connector brand - Simpson connectors are designed, tested, and manufactured to high quality standards, making them a go-to choice for engineers and contractors on code-compliant projects.
• Corrosion-resistant construction for long-term performance - the G90 galvanized finish makes this hanger a practical option for outdoor, exposed, or high-humidity framing situations where uncoated hardware would degrade prematurely.
• Installer-friendly "U" design - the flexible header placement offered by the "U" profile reduces the precision required during positioning, helping experienced and first-time builders alike achieve a secure, properly seated connection.

Specifications

• MPN: HU28-4
• Brand: Simpson Strong-Tie
• Member Size: Quad 2x8
• Seat Depth: 2-1/2 in.
• Gauge: 14
• Coating / Finish: Zinc Galvanized, G90
• Width (W): 6-1/8 in.
• Height: 5-1/2 in.
• Install With: 0.162 in. x 3-1/2 in. nails (sold separately)

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What size joist is the HU28-4 designed to support?

The HU28-4 is designed for a nominal quad 2x8 joist member, making it suitable for heavy-duty structural applications that require the strength of four combined 2x8 members.

What type of corrosion protection does the HU28-4 have?

The HU28-4 features a G90 zinc galvanized coating, which provides extra corrosion resistance and makes it well-suited for use in environments where moisture exposure is a concern.

What fasteners should be used to install the HU28-4?

The HU28-4 should be installed with 0.162 in. x 3-1/2 in. nails to ensure a proper and code-compliant connection.

What advantage does the "U" design of the HU28-4 provide?

The "U" design of the HU28-4 allows for flexibility of placement on the header, giving installers greater versatility when positioning the hanger during construction.

Note: Product dimensions and/or fastener holes may differ from picture. Please see item description for specifications.
