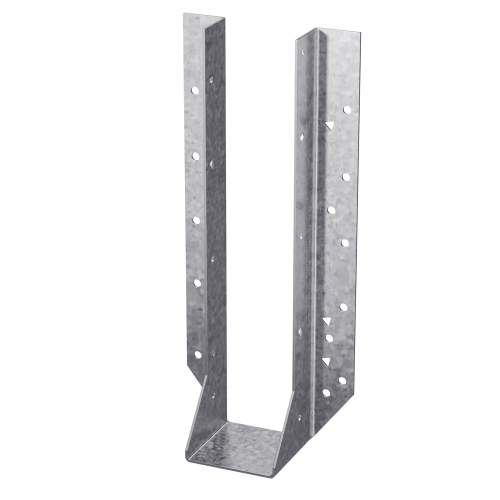

The Simpson Heavy Face-Mount Joist Hanger, Galvanized HU2.75/12 is a heavy-duty framing connector engineered by Simpson Strong-Tie for structural applications that demand reliable load transfer and long-term performance. Designed with a face-mount configuration, this joist hanger attaches directly to the face of a header or beam, providing a secure connection point for dimensional lumber framing in residential and commercial construction alike. Built to meet the strength and safety requirements of demanding framing conditions, this hanger is a go-to choice for contractors and builders who need a dependable, code-conscious solution for standard joist connections.

Key Features

• Heavy-duty, face-mount design - attaches directly to the face of a header or beam, simplifying installation in standard framing layouts while delivering a strong, stable joist connection
• 14-gauge steel construction - provides the robust load-bearing capacity needed for structures requiring additional strength and enhanced safety factors beyond what lighter-gauge hangers offer
• Zinc galvanized G90 coating - delivers durable corrosion resistance that helps extend the service life of the hanger across a range of environmental conditions
• 2 3/4 in. nominal width - sized to accommodate standard dimensional lumber framing for a precise, secure fit without field modification
• Configurable seat options available - select models can be fitted with a skewable seat or a seat that slopes up to 45 deg., allowing this hanger to handle angled or skewed framing conditions with the same reliable performance

Why This Product

• Engineered for demanding structural applications - the combination of 14-gauge steel and a heavy-duty face-mount design makes this hanger well-suited for framing scenarios where standard connectors may fall short on strength or safety margin
• Built-in corrosion protection - the zinc galvanized G90 coating means builders get lasting performance without needing to source additional protective treatments, reducing long-term maintenance concerns
• Versatile framing compatibility - with configurable seat options that accommodate slopes up to 45 deg. and skewed conditions, this hanger adapts to a wider range of framing layouts than a fixed-seat connector would allow
• Trusted Simpson Strong-Tie engineering, made in the United States - backed by a brand with a long track record in structural connectors, this hanger gives contractors and inspectors confidence in both performance and product consistency

Specifications

• MPN: HU2.75/12
• Brand: Simpson Strong-Tie
• Gauge (Ga.): 14
• Width: 2 3/4
• Height: 10 3/4
• Seat Depth: 2 1/2
• Coating/Material: Zinc Galvanized, G90
• Mount Type: Face-Mount
• Country of Origin: United States

Options

Configurable options are available for this product, including a skewable seat and a seat that slopes up to 45 degrees. Contact us for configurable options and special orders.

Frequently Asked Questions

What type of mounting does the HU2.75/12 use?

The HU2.75/12 uses a face-mount design, meaning it attaches directly to the face of a header or beam to support the joist from below, making installation straightforward in standard framing applications.

What gauge steel is used in the HU2.75/12?

This hanger is manufactured from 14-gauge steel, which contributes to its heavy-duty load capacity and makes it suitable for structures that require additional strength and safety factors beyond standard joist hangers.

What corrosion protection does the HU2.75/12 have?

The HU2.75/12 features a zinc galvanized G90 coating, which provides a durable layer of corrosion resistance to help extend the service life of the hanger in various environmental conditions.

Can the seat angle on the HU2.75/12 be adjusted?

Yes, select models can be configured with a skewable seat and a seat that slopes up to 45 degrees, allowing the hanger to accommodate angled or skewed framing conditions..

Note: Product dimensions and/or fastener holes may differ from picture. Please see item description for specifications.
