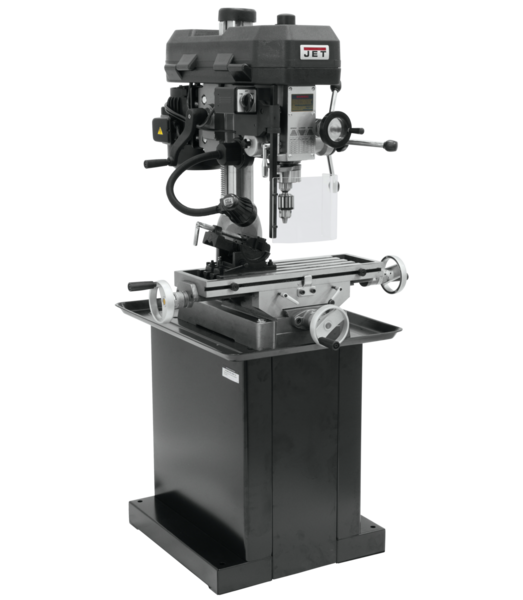

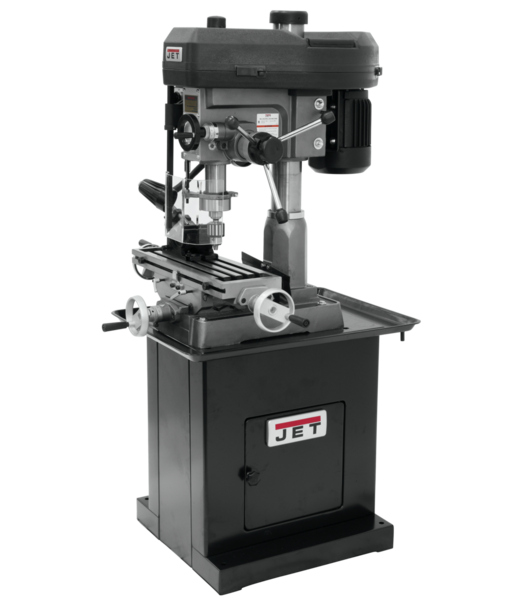

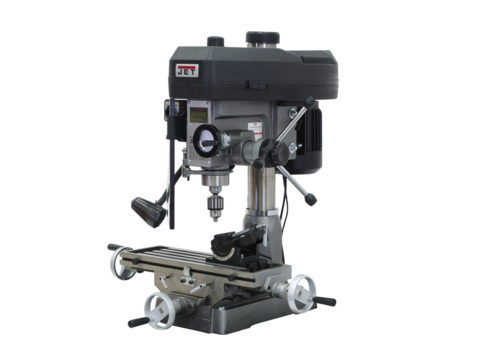

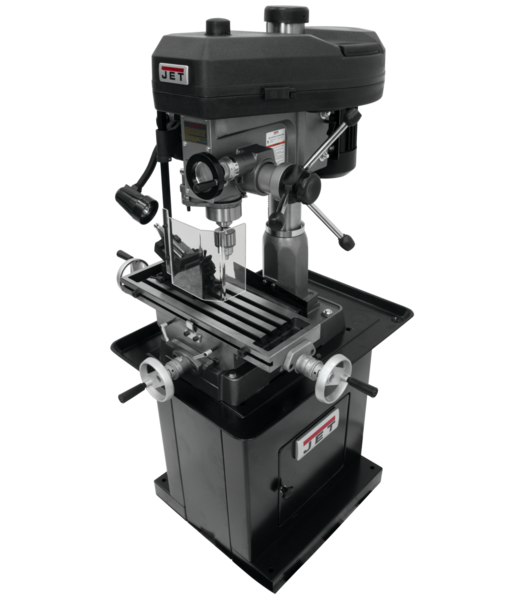

JET JMD-15 Mill / Drill with NEWALL DP700 DRO by JET delivers a space-saving, versatile solution for light machining tasks that demand both drilling precision and milling flexibility. This belt-driven mill drill combines the convenience of a drill press with the dual-coordinate table movement of a milling machine, making it an efficient and affordable choice for shops where a full-size milling machine is impractical. The included NEWALL DP700 Digital Readout enhances positioning accuracy, while the locking collet keeps the cutting tool securely engaged with the spindle when lateral forces are applied during milling operations.

Key Features

• Belt-driven mill drill combining drill press function with dual-coordinate milling table movement for flexibility and efficiency

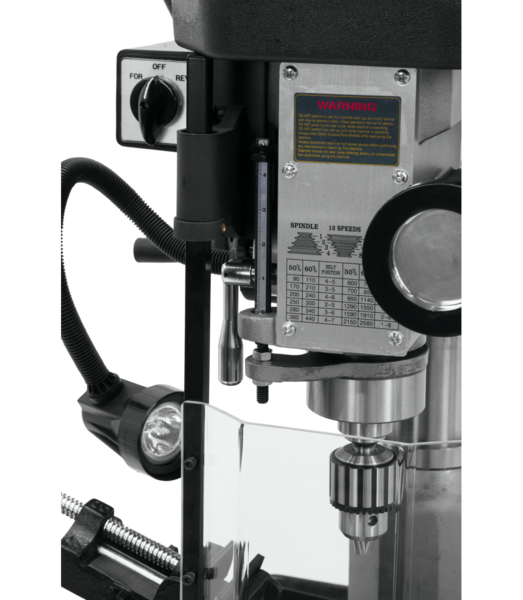

• Locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit
• NEWALL DP700 Digital Readout included for enhanced positioning accuracy
• 12 spindle speeds ranging from 110-2,580 RPM to accommodate a wide range of materials and cutting operations
• R-8 spindle taper for broad tooling compatibility
• Large 7-1/2 x 23 in. work table with 14 in. longitudinal travel supports versatile workpiece positioning
• 4 T-slots (9/16 in.) with 1-13/16 in. centers for secure workholding
• 350 lb. work table weight capacity handles substantial workpieces
• 1 HP, 115/230V, 1-phase motor provides reliable power for light machining
• Space-saving design with an overall footprint of 38 x 37-1/2 x 42 in.
• 3-5/8 in. column diameter and 2-7/16 in. quill diameter contribute to rigid, stable machining performance
• 3-1/2 in. spindle travel and up to 14-1/2 in. max distance from spindle to table for versatile setup configurations

Specifications

• Stock Number: JT9-350125-2
• Model Number: JMD-15
• Base Dimensions (In.): 12-1/2 x 19-3/4
• Column Diameter (In.): 3-5/8
• Drilling Capacity (In.): 1
• Max Distance Spindle to Table (In.): 14-1/2
• Motor: 1 HP, 115/230V, 1Ph
• Number of Spindle Speeds: 12
• Overall Dimensions (L x W x H) (In.): 38 x 37-1/2 x 42
• Quill Diameter (In.): 2-7/16
• Range of Spindle Speeds (RPM): 110-2,580
• Spindle Taper: R-8
• Spindle Travel (In.): 3-1/2
• Swing (In.): 14-1/2
• T-Slot Centers (In.): 1-13/16
• T-Slots Number and Size (In.): 4 and 9/16
• Table Longitudinal Travel (In.): 14
• Table Size (L x W) (In.): 7-1/2 x 23
• Weight (Lbs.): 440
• Work Table Weight Capacity (Lbs.): 350
• Prop 65: Cancer and Reproductive Harm

Frequently Asked Questions

What spindle speed range does the JMD-15 offer, and how many speeds are available?

The JMD-15 provides 12 spindle speeds ranging from 110-2,580 RPM, giving operators the flexibility to dial in the correct cutting speed for a variety of materials and bit sizes.

What is the spindle taper on the JMD-15, and why does it matter?

The JMD-15 uses an R-8 spindle taper, a widely adopted standard in mills and mill drills that ensures broad compatibility with collets, end mills, and other tooling commonly found in machine shops.

How does the locking collet benefit milling operations on this machine?

The locking collet is specifically designed to prevent the cutting tool from falling away from the spindle when lateral forces are experienced against the bit during milling, helping maintain workpiece accuracy and operator safety.

What electrical requirements does the JMD-15 motor have?

The JMD-15 is powered by a 1 HP motor that operates on 115/230V, 1-phase power, making it compatible with standard single-phase electrical service commonly found in small shops and home workshops.
