Product Features
Product Description

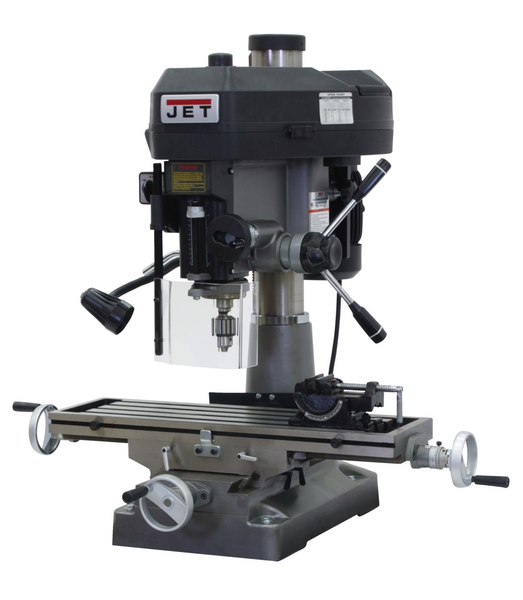

JET JMD-18 Mill / Drill with R-8 Taper 230V 1 Ph by JET delivers a space-saving, versatile solution for light machining work. Combining the functionality of a belt-driven drill press with the dual-coordinate table movement of a milling machine, this unit is engineered for shops that demand flexibility and efficiency without the footprint of a full-size milling machine. A 2 HP motor drives 12 selectable spindle speeds ranging from 150-3,000 RPM, while the one-piece cast iron column provides the rigid support needed for consistent, accurate results. UL Listed for safety and confidence.
Key Features
- 1/2" Drill chuck, chuck arbor included
- 360 deg. head swivel for versatile positioning
- Adjustable carbide facemill for precision surface work
- Base taper allows for easier clean up
- Easy to read internal depth gauge
- Positive quick-stop kb and easy to read internal depth gauge
- Forward and Reverse Switch for operational flexibility
- One-piece cast iron column for added support
- UL Listed

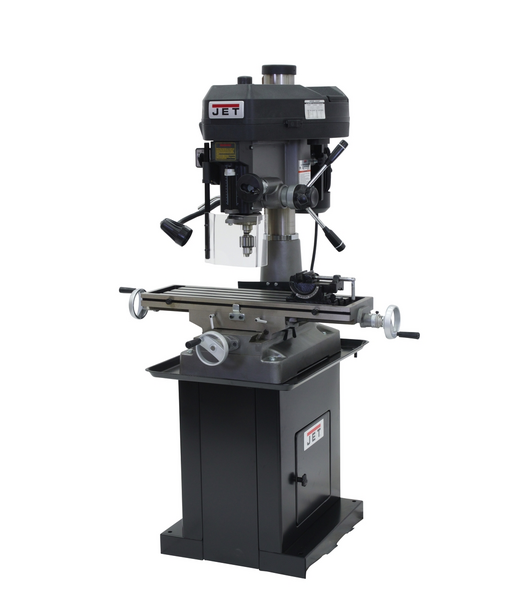

- Mill Drill Stand, p/n 350045, shown in some images, is optional
Specifications
- Stock Number: JT9-350018-2
- Model Number: JMD-18
- Motor: 2 HP, 115/230V, 1Ph
- Spindle Taper: R-8
- Number of Spindle Speeds: 12

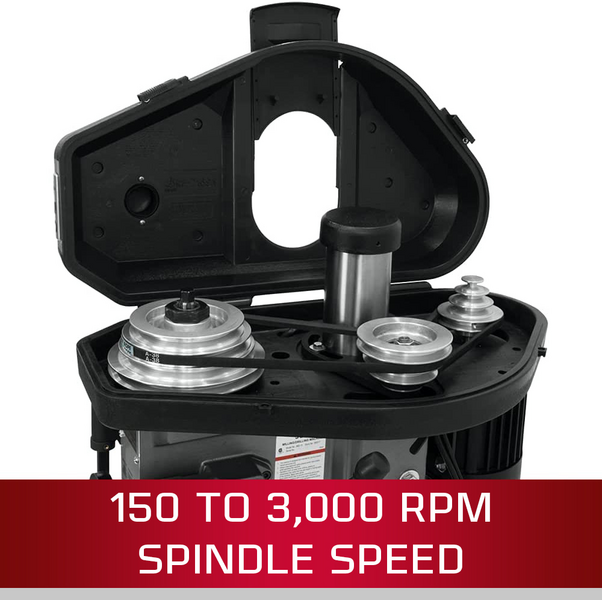

- Range of Spindle Speeds (RPM): 150-3,000
- Spindle Travel (In.): 5
- Quill Diameter (In.): 3
- Face Mill Capacity (In.): 3
- Swing (In.): 15-7/8
- Max Distance Spindle to Table (In.): 17-1/2
- Table Size (L x W) (In.): 9-1/2 x 32-1/4
- Table Longitudinal Travel (In.): 20-1/2
- T-Slots Number and Size (In.): 4 and 5/8
- T-Slot Centers (In.): 1-13/16
- Work Table Weight Capacity (Lbs.): 400
- Column Diameter (In.): 4-1/2
- Base Dimensions (In.): 15-3/4 x 23-3/4
- Overall Dimensions (L x W x H) (In.): 47 x 40 x 51
- Weight (Lbs.): 660
- Country of Origin: Taiwan
- Prop 65: Cancer and Reproductive Harm
What's Included
- 1/2" Drill chuck
- Chuck arbor
- Adjustable carbide facemill
Options
- Mill Drill Stand, p/n 350045 (optional, shown in some images)
Frequently Asked Questions
- What spindle taper does the JMD-18 use?
- The JMD-18 uses an R-8 spindle taper, a widely compatible standard that accepts a broad range of collets, end mill holders, and tooling commonly used in light milling and drilling operations.
- How many spindle speeds are available, and what is the RPM range?
- The JMD-18 offers 12 selectable spindle speeds with a range of 150-3,000 RPM, allowing operators to match the speed to the material and cutting tool being used.
- Is the Mill Drill Stand included with the machine?
- No. The Mill Drill Stand (p/n 350045), shown in some images, is optional and sold separately. The JMD-18 unit itself includes the 1/2" drill chuck, chuck arbor, and adjustable carbide facemill.
- What is the maximum workpiece or fixture weight the table can support?
- The work table has a rated weight capacity of 400 lbs., providing substantial support for workpieces and fixturing setups commonly encountered in light machining applications.
