Product Description

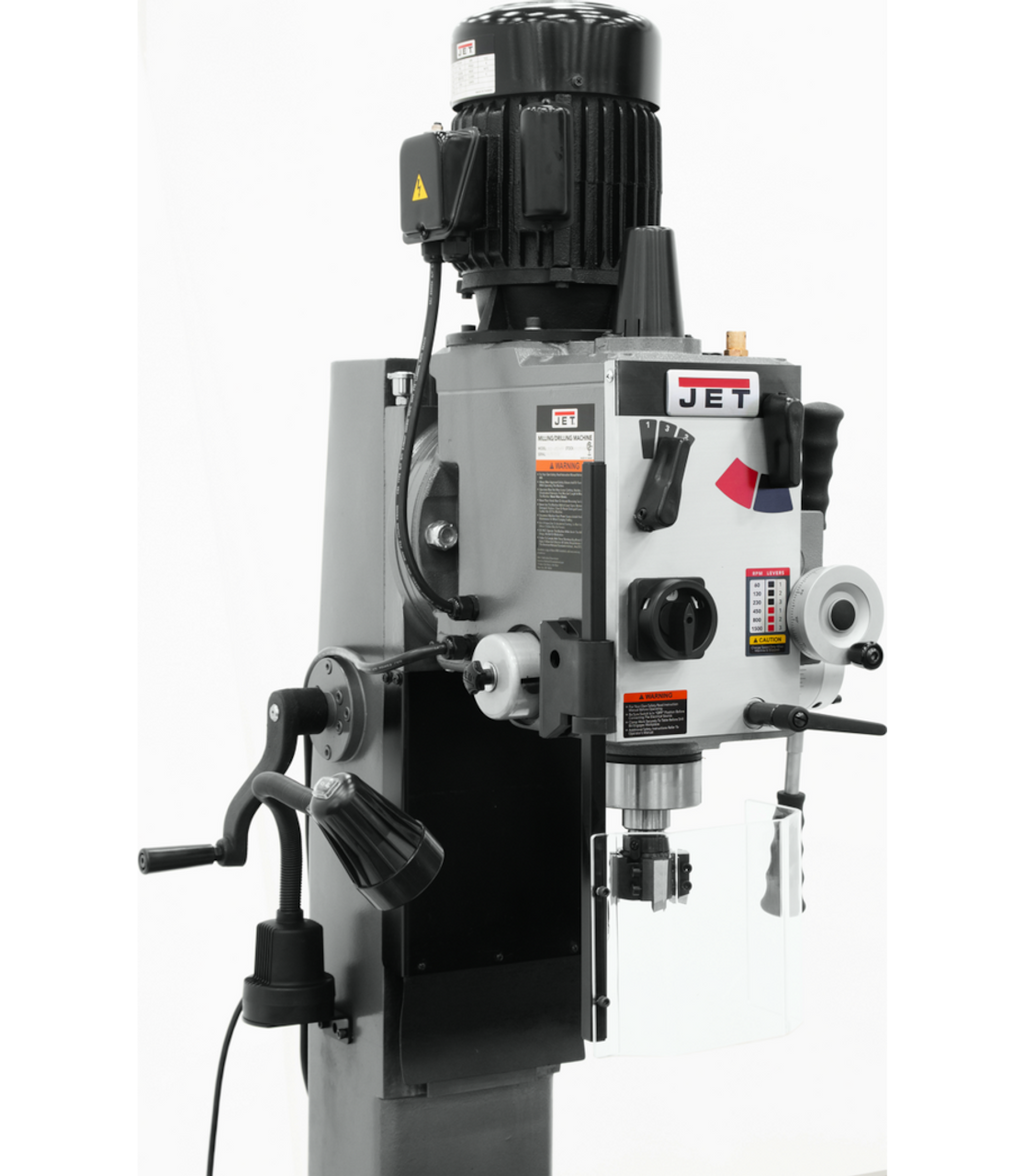

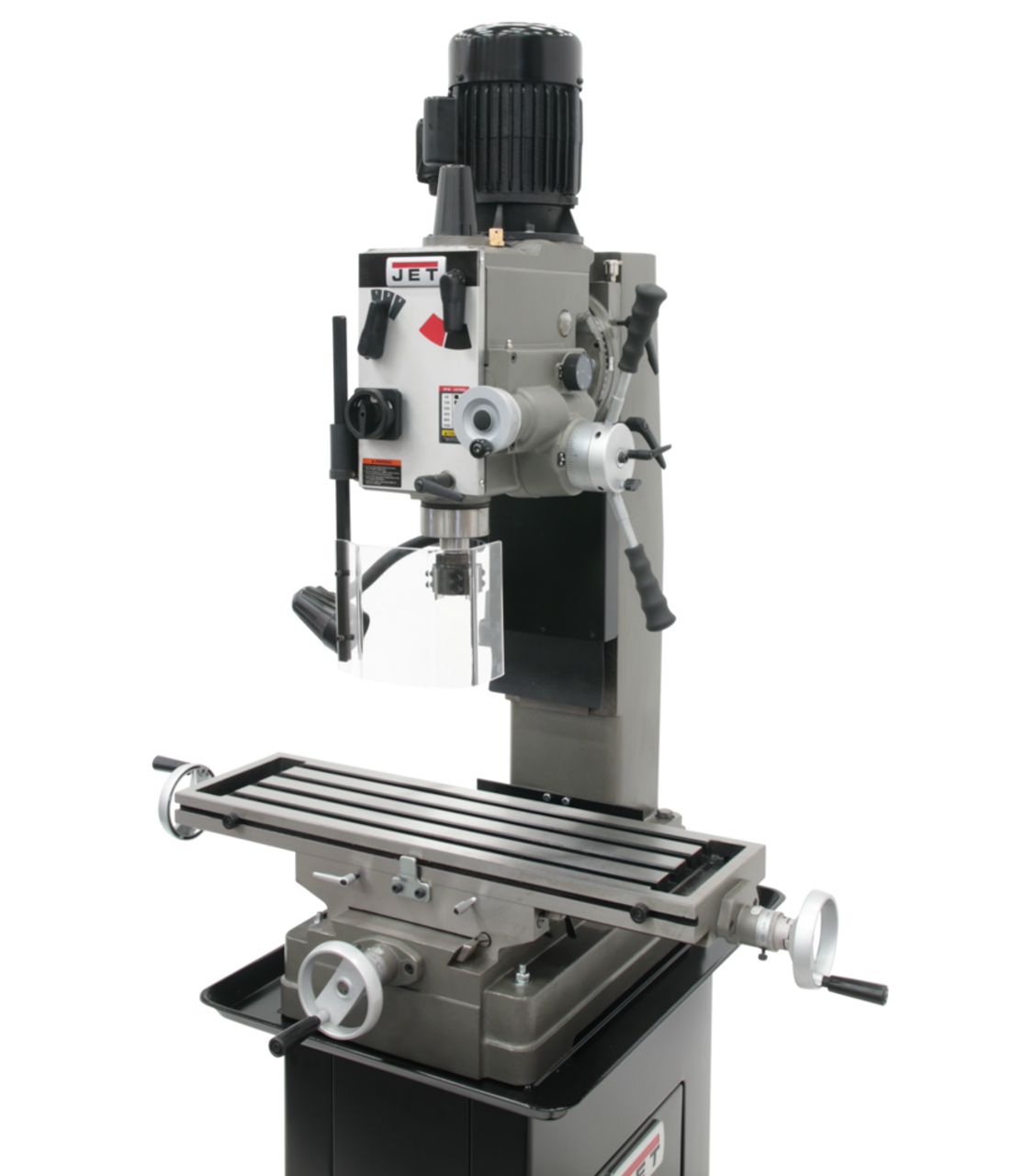

The JET JMD-45GHPF Geared Head Square Column Mill/Drill with Power Downfeed is a heavy-duty milling and drilling machine engineered by JET to deliver the rigidity required for a variety of precision drilling applications in high-intensity environments. Featuring a 6-speed geared head, R8 spindle, and power downfeed capability, this mill/drill is built to provide full power to cutting tools across a wide range of operations. CSA/CUS Certified.
Key Features
- Easy to read internal depth gauge
- Full power to the cutting tools through 6 speed geared head
- Heavy-duty design allows for a variety of precision drilling applications
- Milling table allows for movement
- R8 spindle allows use of all mill tooling
- Rapid spindle speed changes through quick-select gear shift levers
- Square column with dovetail ways

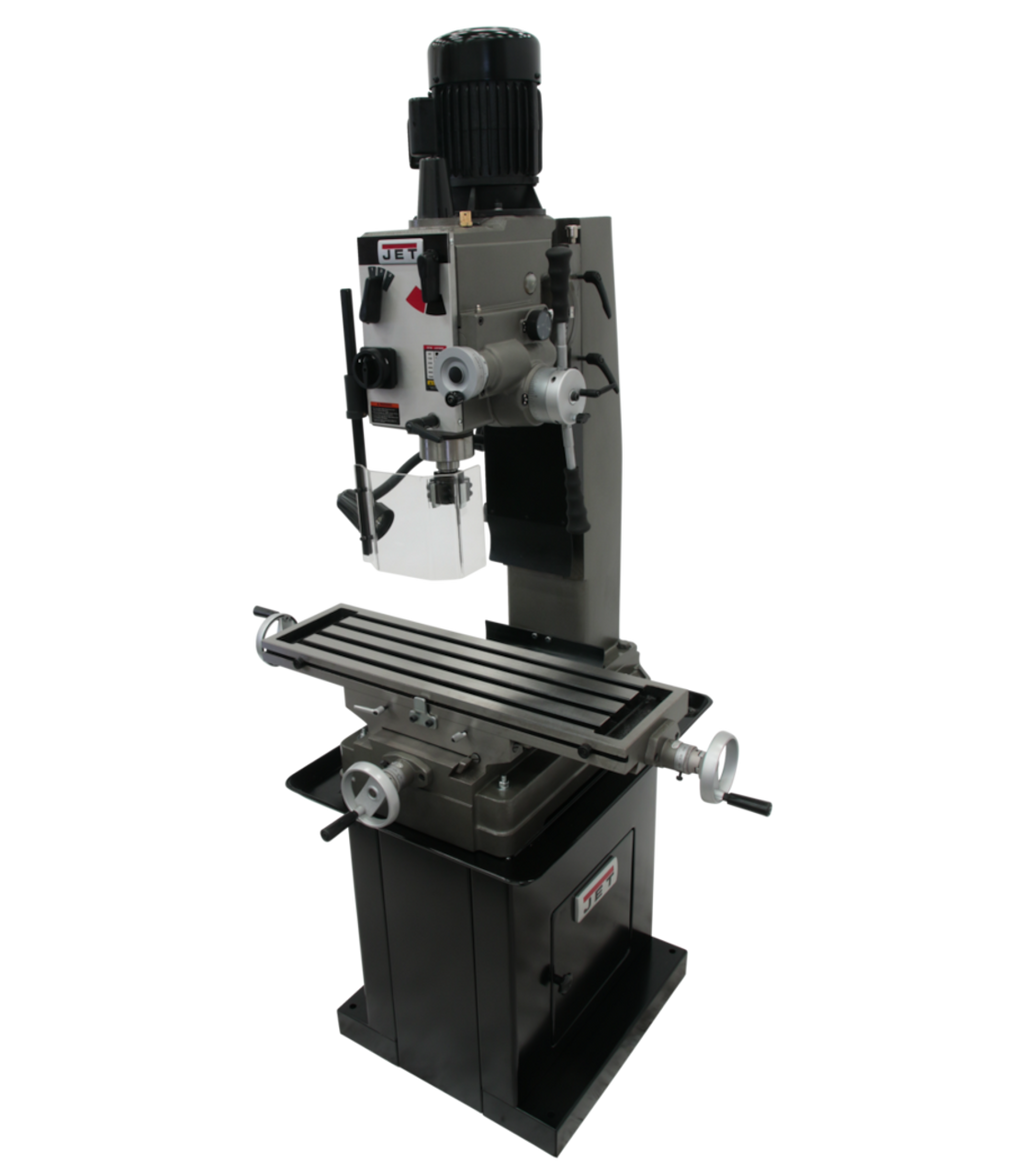

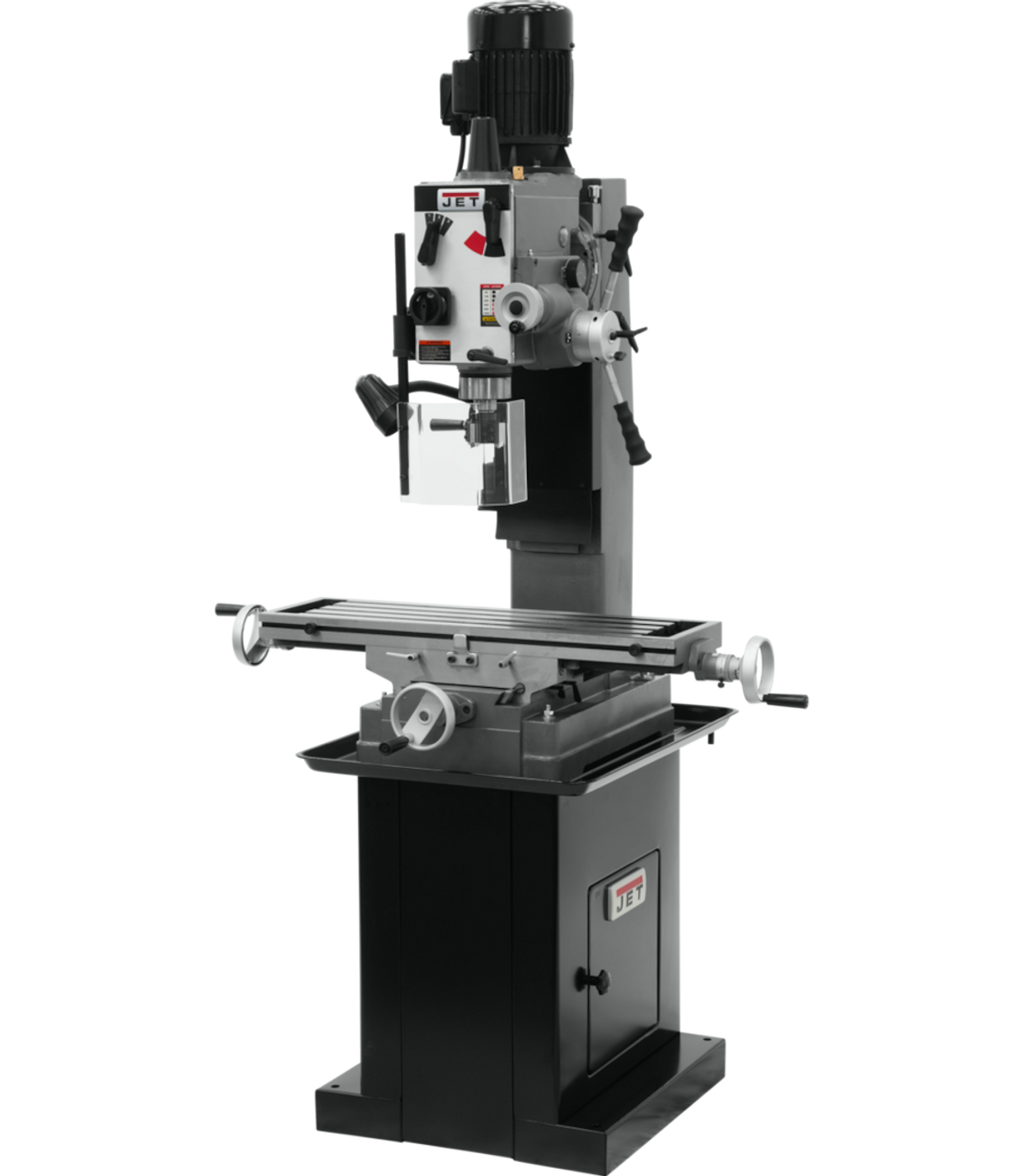

- Mill Drill Stand, p/n 350045, shown in some images, is optional
Specifications
- Stock Number: JT9-351046-2
- Model Number: JMD-45GHPF
- Motor: 1-1/2HP, 115/230V, 1Ph
- Number of Spindle Speeds: 6
- Range of Spindle Speeds (RPM): 65-1550
- Spindle Taper: R8
- Spindle Travel (In.): 5
- Quill Diameter (In.): 3
- Swing (In.): 19-11/16
- Face Mill Capacity (In.): 4
- Max Distance Spindle to Table (In.): 18-1/8
- Table Size (L x W) (In.): 9-1/2 x 32-1/4
- Table Longitudinal Travel (In.): 20-1/2
- Base Dimensions (In.): 26-11/16 x 15-15/16
- Overall Dimensions (L x W x H) (In.): 29 x 36 x 50
- Weight (Lbs.): 820
- Country of Origin: Taiwan
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- What type of tooling is compatible with the JMD-45GHPF?
- The JMD-45GHPF features an R8 spindle, which allows use of all mill tooling designed for the R8 taper standard - making it compatible with a wide range of end mills, drill chucks, collets, and other milling accessories.
- How many spindle speeds does this mill/drill offer, and how are they changed?
- The machine provides 6 spindle speeds ranging from 65-1550 RPM. Speed changes are made quickly and easily through quick-select gear shift levers on the 6-speed geared head, allowing rapid adjustments during operation.
- Is a stand included with the JMD-45GHPF?
- No, the Mill Drill Stand (p/n 350045) shown in some images is optional and not included with the machine. It is available as a separate accessory.
- What certifications does the JMD-45GHPF carry?
- The JMD-45GHPF Geared Head Square Column Mill/Drill with Power Downfeed is CSA/CUS Certified, confirming it meets recognized safety and performance standards for use in applicable environments.
