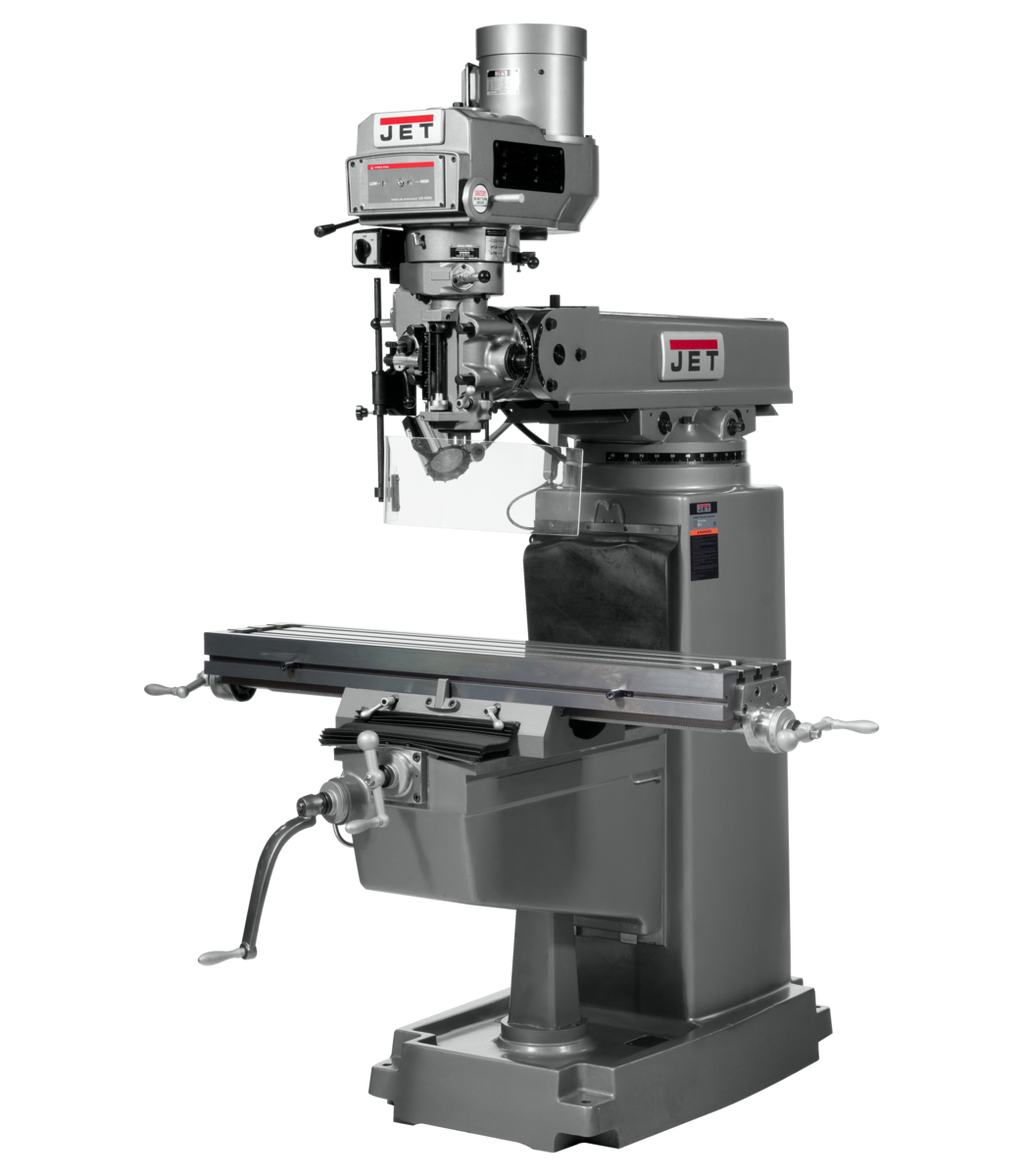

JET JTM-1050VS2 Mill with Newall DP700 3-Axis (Knee) DRO and X-Axis Powerfeed is a professional-grade variable speed vertical milling machine from JET, engineered for demanding machining environments that require precision, durability, and versatile performance. Built on Certified Meehanite castings with a heavy-duty hardened and ground 10" x 50" table, this mill delivers high-accuracy results and is paired with a Newall DP700 3-Axis (Knee) DRO and X-Axis Powerfeed for enhanced productivity and precise digital readout control.

Key Features

• Certified Meehanite castings provide a rigid, vibration-dampening foundation for consistent, high-precision machining
• Heavy-duty hardened and ground 10" x 50" table ensures a flat, stable work surface for demanding applications
• High-precision Class 7 bearings support the spindle for smooth, accurate operation across a wide RPM range
• Precision bored and honed milling head delivers quality cuts with minimal runout
• Variable spindle speed range of 70 - 3,800 RPM accommodates a broad variety of materials and cutting conditions
• Three-stage power downfeed with automatic stop simplifies operation and improves repeatability
• Newall DP700 3-Axis (Knee) DRO provides real-time digital position readout for all three axes
• X-Axis Powerfeed automates longitudinal table movement for consistent feed rates and reduced operator fatigue
• Adjustable gibs throughout allow precise tuning of slide fit and eliminate play for optimal accuracy
• Chrome lead screws on X and Y axis resist wear and ensure smooth, precise table movement
• Chrome-plated motor shaft with bearing support at end enhances durability and drive stability
• Hardened and ground square vertical knee ways and cross ways provide long-lasting precision and smooth travel
• Heavy-duty motor drive with 3 HP, 230/460V, 3-Phase motor delivers ample power for continuous industrial use
• Internal coolant tank built into base for use with coolant system (coolant pump not included)
• Large diameter quill is chromed for smooth travel and extended service life
• One-shot lubrication system simplifies maintenance and protects critical wear surfaces
• Spindle head is internally cooled to maintain consistent operating temperatures during extended use
• R-8 spindle taper with 3-3/8" quill diameter and 5" spindle travel for versatile tooling compatibility
• Tolerance test sheet included, confirming factory-verified precision before shipment
• Backed by the industry-leading JET Two Year Warranty

Specifications

• MPN: JT9-691236
• Stock Number: 691236
• Style (Type): Variable Speed R8
• Motor: 3 HP, 230/460V, 3Ph
• Range of Spindle Speeds (RPM): 70 - 3,800
• Spindle Taper: R-8
• Quill Diameter (In.): 3-3/8
• Spindle Travel (In.): 5
• Quill Down Feed Rates (IPR): .0015 - .003 - .006
• Collet Capacity: 1/8 - 7/8
• Table Longitudinal Travel (In.): 35
• Table Longitudinal Travel With Powerfeed (In.): 29-3/4
• Table Cross Travel (In.): 15-1/4
• T-Slot Centers (In.): 2-1/2
• Distance Spindle to Column (Max.) (In.): 26
• Max Distance Spindle to Table (In.): 19
• Number of Axis: 3 (Knee)
• Powerfeed: X-Axis
• Overall Dimensions (L x W x H) (In.): 96 x 78 x 88
• Country of Origin: Taiwan
• Prop 65: Cancer and Reproductive Harm

What's Included

• JET JTM-1050VS2 Variable Speed Vertical Milling Machine
• Newall DP700 3-Axis (Knee) Digital Readout (DRO)
• X-Axis Powerfeed
• Tolerance test sheet

Frequently Asked Questions

What DRO system is included with this mill, and how many axes does it cover?

This mill includes the Newall DP700 Digital Readout system configured for 3 axes covering the Knee (Z), and the system provides real-time digital position feedback to improve accuracy and reduce setup time during milling operations.

Does this machine include a coolant pump?

The JTM-1050VS2 features an internal coolant tank built into the base for use with a coolant system; however, the coolant pump is not included and must be purchased separately.

What spindle taper and quill specifications does the JTM-1050VS2 use?

The machine uses an R-8 spindle taper with a large diameter 3-3/8" chromed quill that provides 5" of spindle travel. The collet capacity ranges from 1/8" to 7/8", making it compatible with a wide variety of standard tooling.

What lubrication system does this mill use, and how does it simplify maintenance?

The JTM-1050VS2 is equipped with a one-shot lubrication system that allows the operator to oil all critical ways and moving components simultaneously with a single pump action, reducing maintenance time and helping to protect precision surfaces from premature wear.
