Product Features
Product Description
JET GH-1440-1 Geared Head Lathe with Taper Attachment and Collet Closer is a professional-grade engine lathe from JET engineered for demanding precision machining operations. Weighing over one ton and built with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock, this lathe delivers ultimate working durability. The enclosed gearbox design, standard coolant system, and lead screw cover provide smooth, quiet operation while maintaining peak performance - making it a premier choice for machinists who require accuracy, reliability, and versatility in a full-featured geared head lathe.
Key Features
- Precision induction hardened ground bed-ways and spindle roller bearings for long-term durability and accuracy
- High-quality steel hardened gears in the headstock ensure reliable power transmission

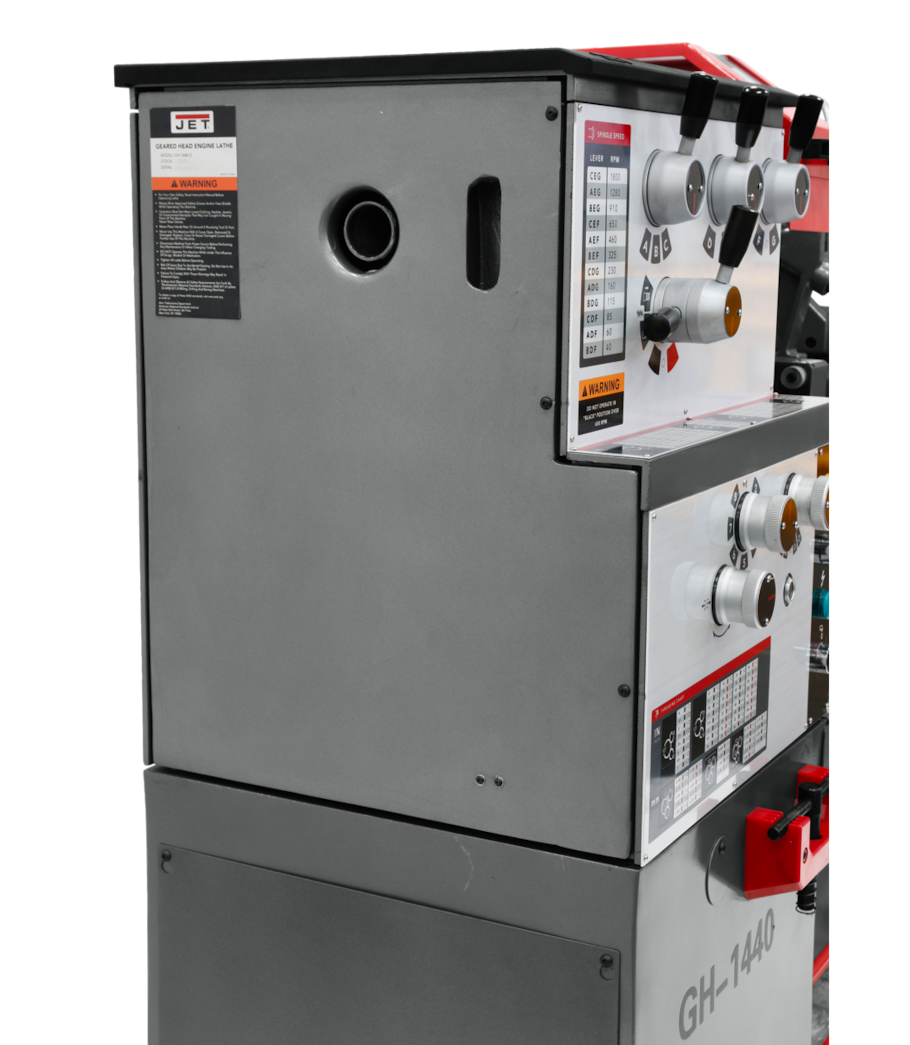

- Enclosed gearbox design with standard coolant system and lead screw cover for smooth, quiet operation
- Compound and cross slide have backlash elimination for precise, repeatable cuts
- Front removable chip tray for convenient cleanup and a cleaner work environment
- Full length splash guard to protect the operator and surrounding area
- Inch-metric dials are standard for flexible measurement in either system
- Independent lead screw and feed rod for versatile threading and feeding operations
- Safety on/off switch and emergency stop within easy reach of the operator
- Patented Electronic Chuck Key Docking Station prevents startup without the chuck key safely docked
- Spindle actuation control is apron mounted for convenient, ergonomic operation
- Spindle jog button for easy gear engagement and spindle inching
- Splined, T-keyed shafts are utilized for robust and precise drive transmission

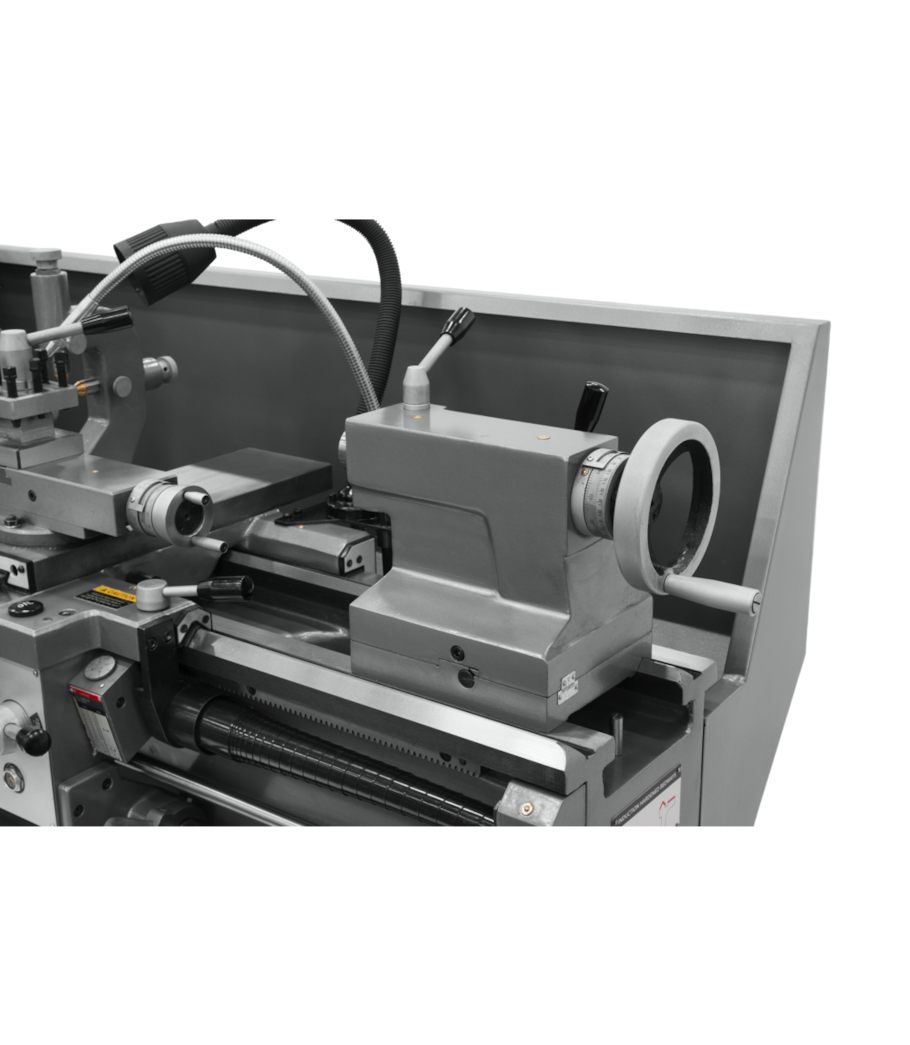

- Tailstock may be offset for turning taper, adding versatility to workpiece operations
Specifications
- MPN: JT9-323373
- Stock Number: 323373
- Motor: 3HP, 230V, 1PH
- Number of Spindle Speeds: 12
- Number of Inch Threads: 40
- Number of Metric Threads: 23
- Range of Inch Threads (TPI): 4-112
- Number of Longitudinal and Cross Feed Rates: 40
- Range of Longitudinal Feeds (IPR): 0.0012-0.0294
- Range of Cross Feeds (IPR): 0.0004-0.0103
- Carriage Travel (In.): 37-1/2
- Compound Slide Travel (In.): 3-1/2
- Length of Gap (In.): 9-3/8
- Max Tool Size (In.): 5/8 x 5/8
- Overall Dimensions (L x W x H) (In.): 74-4/5 x 28 x 46
- Country of Origin: China
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- How many spindle speeds does the JET GH-1440-1 offer, and what threading capabilities does it support?
- The GH-1440-1 provides 12 spindle speeds to accommodate a wide range of materials and operations. It supports 40 inch thread pitches ranging from 4-112 TPI and 23 metric threads, giving machinists extensive threading versatility in a single machine.
- What safety features are built into the GH-1440-1?
- This lathe includes a safety on/off switch, an emergency stop within easy reach of the operator, and a patented Electronic Chuck Key Docking Station that prevents the machine from starting unless the chuck key is safely docked - providing multiple layers of operator protection.
- Can the GH-1440-1 perform taper turning, and how is it accomplished?
- Yes. The lathe comes with a taper attachment, and the tailstock may also be offset for turning taper, giving operators two methods for producing tapered workpieces with accuracy and flexibility.
- What electrical requirements are needed to operate the JET GH-1440-1?
- The GH-1440-1 is powered by a 3HP motor requiring 230V, 1-phase electrical service. Ensure your facility has the appropriate single-phase 230V supply and proper circuit capacity before installation.
