Product Features
Product Description
JET GH-1440-1 Geared Head Lathe with DP700 DRO is a precision-engineered engine lathe from JET, built for demanding metalworking applications that require reliable threading, turning, and taper work. Weighing over one ton and equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock, this lathe delivers ultimate working durability and long-term accuracy on the shop floor. The enclosed gearbox design, standard coolant system, and lead screw cover contribute to smooth, quiet operation, while the integrated DP700 Digital Readout system helps operators achieve consistent, repeatable results with confidence.
Key Features
- Compound and cross slide have backlash elimination for improved accuracy and repeatability
- Front removable chip tray keeps the work area clean and reduces downtime
- Full length splash guard protects the operator and surrounding equipment from coolant and debris
- Inch-metric dials are standard, allowing seamless switching between measurement systems
- Independent lead screw and feed rod provide greater versatility for threading and feed operations
- Safety on/off switch and emergency stop within easy reach of the operator for enhanced workplace safety
- Spindle actuation control is apron mounted for convenient, intuitive operation
- Spindle jog button for easy gear engagement and spindle inching
- Splined, T-keyed shafts are utilized for robust power transmission and reduced wear

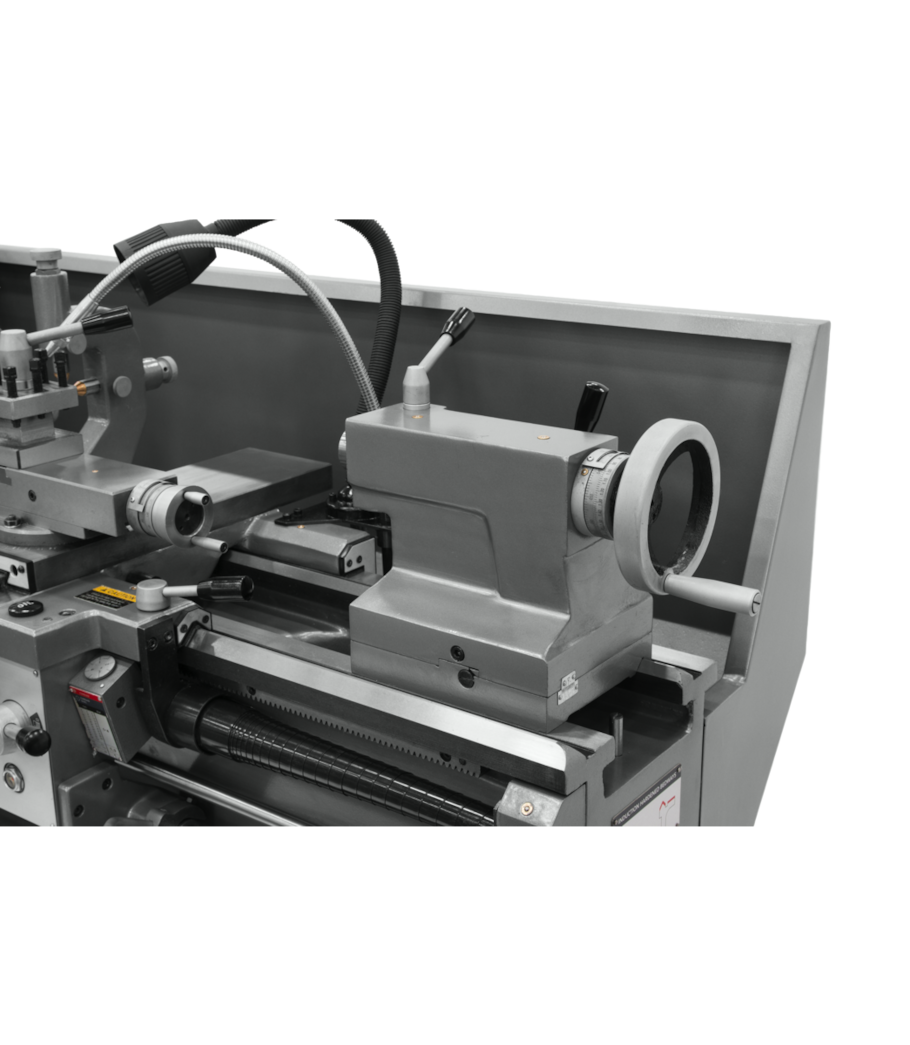

- Tailstock may be offset for turning taper, expanding the range of workpieces this lathe can handle
- Patented Electronic Chuck Key Docking Station prevents startup without the chuck key safely docked
- Precision induction hardened ground bed-ways for long-term rigidity and accuracy
- High-quality steel hardened gears in the headstock for durable, reliable performance
Specifications
- Stock Number: 323382
- MPN: JT9-323382
- Motor: 3HP, 230V, 1PH
- Number of Spindle Speeds: 12
- Carriage Travel: 37-1/2 In.
- Compound Slide Travel: 3-1/2 In.
- Length of Gap: 9-3/8 In.
- Max Tool Size: 5/8 x 5/8 In.
- Number of Inch Threads: 40
- Number of Metric Threads: 23
- Range of Inch Threads: 4 - 112 TPI
- Number of Longitudinal and Cross Feed Rates: 40
- Range of Longitudinal Feeds: 0.0012 - 0.0294 IPR
- Range of Cross Feeds: 0.0004 - 0.0103 IPR
- Overall Dimensions (L x W x H): 74-4/5 x 28 x 46 In.
- Country of Origin: China
- Prop 65: Cancer and Reproductive Harm
Frequently Asked Questions
- Does the JET GH-1440-1 support both inch and metric threading?
- Yes. The lathe comes standard with inch-metric dials and supports 40 inch thread pitches ranging from 4 to 112 TPI, as well as 23 metric thread options, making it suitable for a wide variety of threading tasks.
- How does the backlash elimination on the compound and cross slide benefit machining accuracy?
- The backlash elimination on both the compound and cross slide minimizes unwanted play in the feed mechanisms, which leads to more precise cuts, better surface finishes, and greater repeatability when working to tight tolerances.
- What safety features are included on the GH-1440-1?
- The lathe includes a safety on/off switch, an emergency stop within easy reach of the operator, and a patented Electronic Chuck Key Docking Station that prevents the machine from starting unless the chuck key is safely docked - reducing the risk of accidental chuck key ejection.
- Can the tailstock be used for taper turning on the GH-1440-1?
- Yes. The tailstock may be offset for turning taper, allowing operators to produce tapered workpieces without the need for additional specialized attachments, adding versatility to the range of operations this lathe can perform.
