Product Description

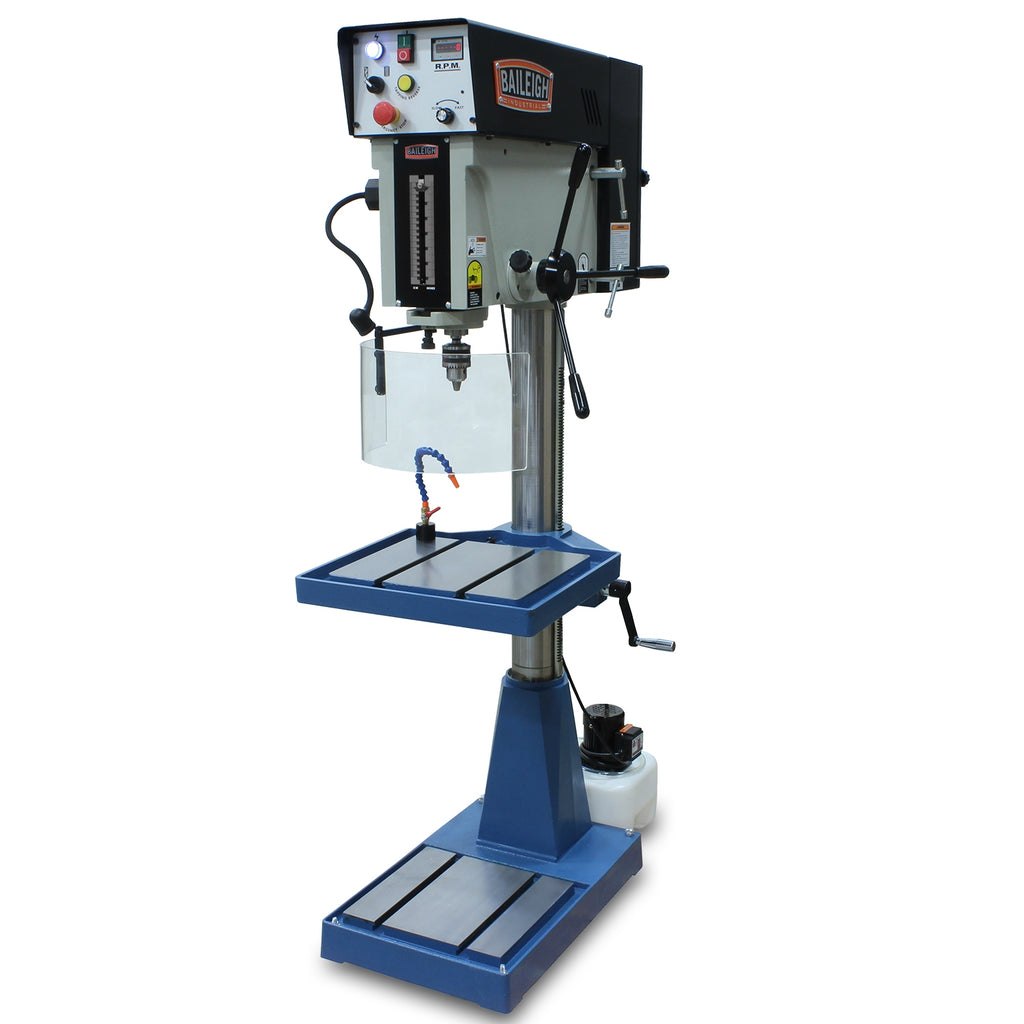

Baileigh Variable Speed Drill Press DP-1200VS is a heavy-duty floor drill press engineered by Baileigh for machinists and fabricators who demand precision, power, and versatility in a single machine. With a 22" swing and an inverter-driven variable-speed head, this press delivers consistent, reliable performance across a wide range of drilling and tapping applications, making it an economical long-term investment for any professional shop.
Key Features
- 2 hp motor runs on 220 volts of single-phase power, delivering strong, efficient performance without requiring complex electrical infrastructure.
- Tackles a maximum drilling capacity of 1-1/16" in mild steel, handling demanding production and fabrication tasks with ease.

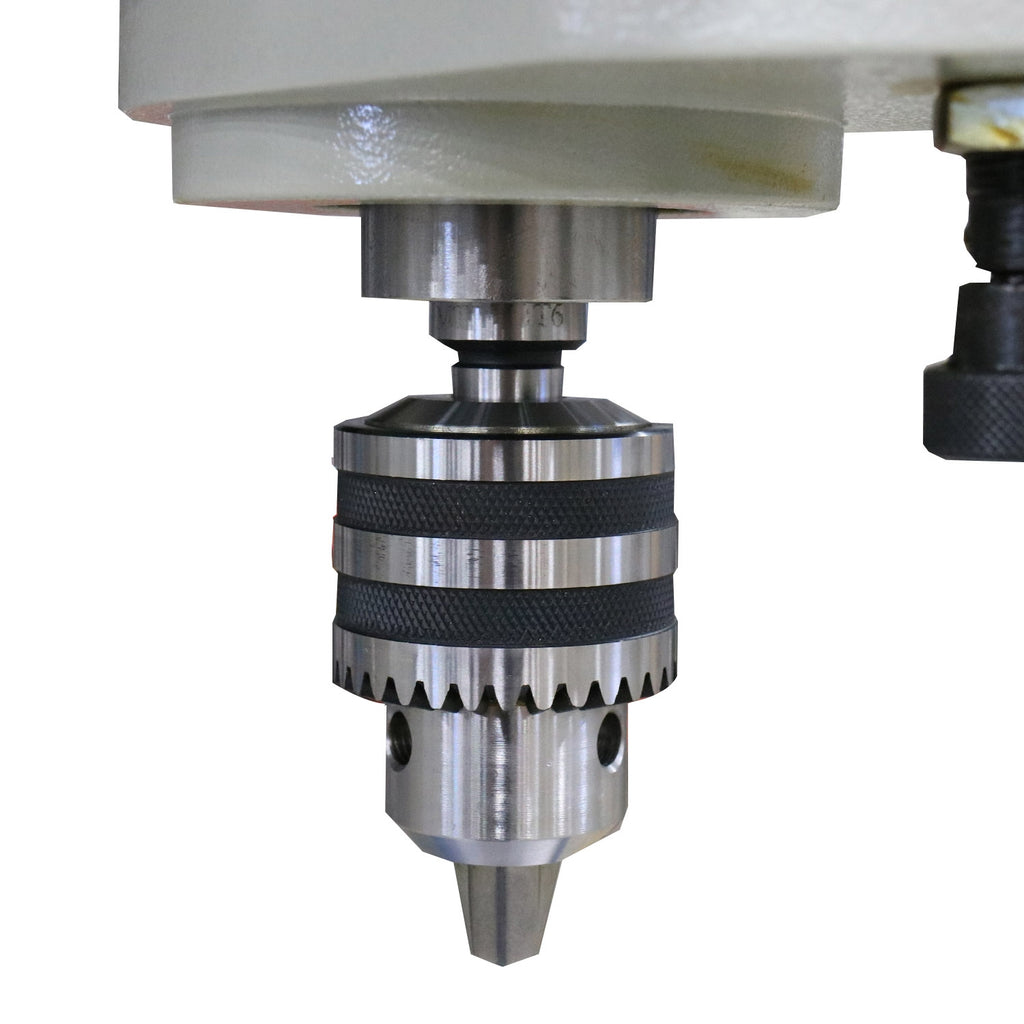

- Heavy-duty spindle transfers power directly to #3 Morse taper tooling for secure, precise tool engagement.

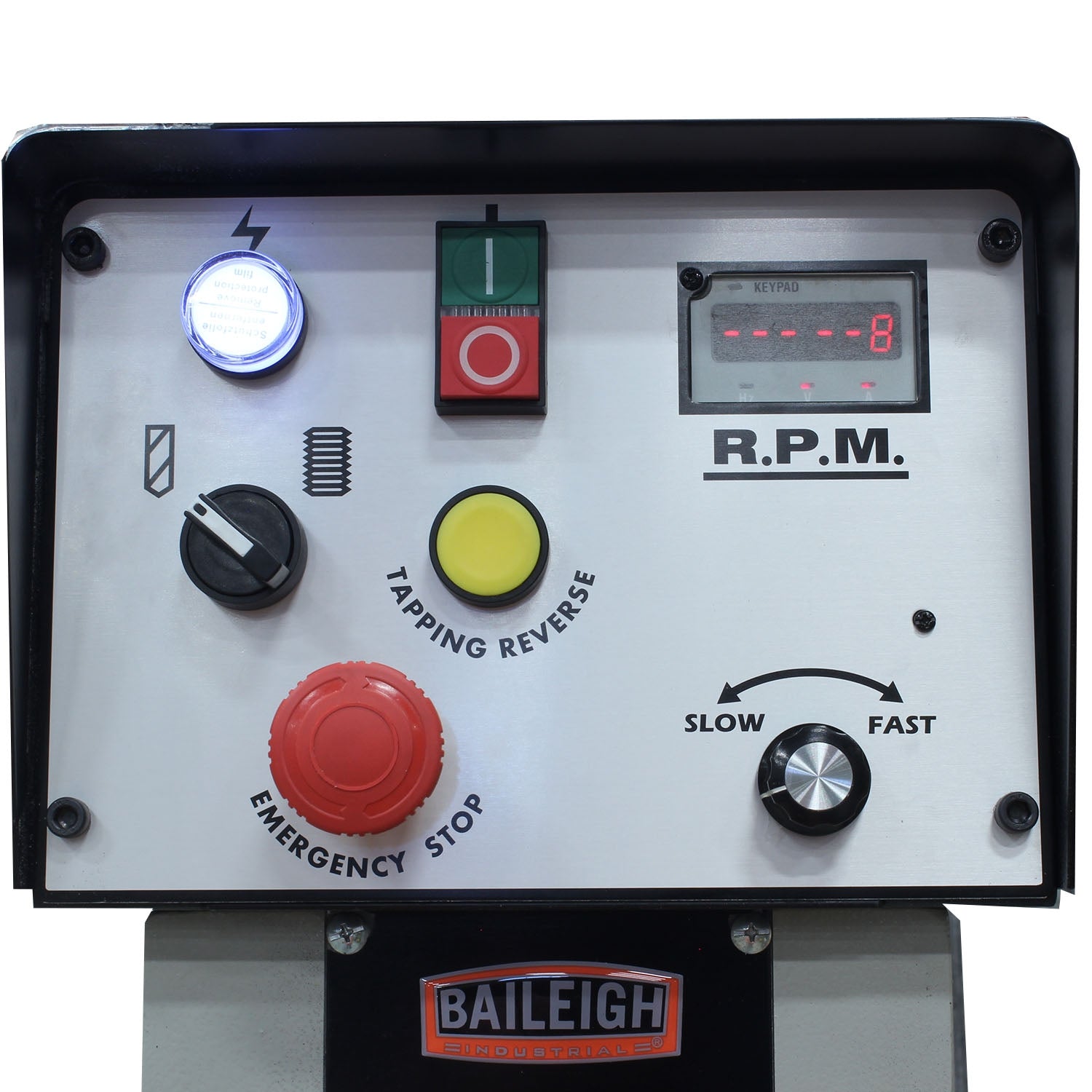

- Speed potentiometer dial controls the powerful inverter-driven head, providing smooth, responsive speed adjustment at your fingertips.
- Variable drilling speed ranging from 10-2,250 RPM lets you dial in the exact setting to match your material and application requirements.
- Digital readout displays the actual spindle RPM in real time, ensuring precise and repeatable results on every job.
- Auto-reversing tap function with up to 1/2" capacity streamlines tapping operations and reduces cycle time.
- Wide column provides extra support and rigidity, minimizing flex even during the most demanding drilling sessions.

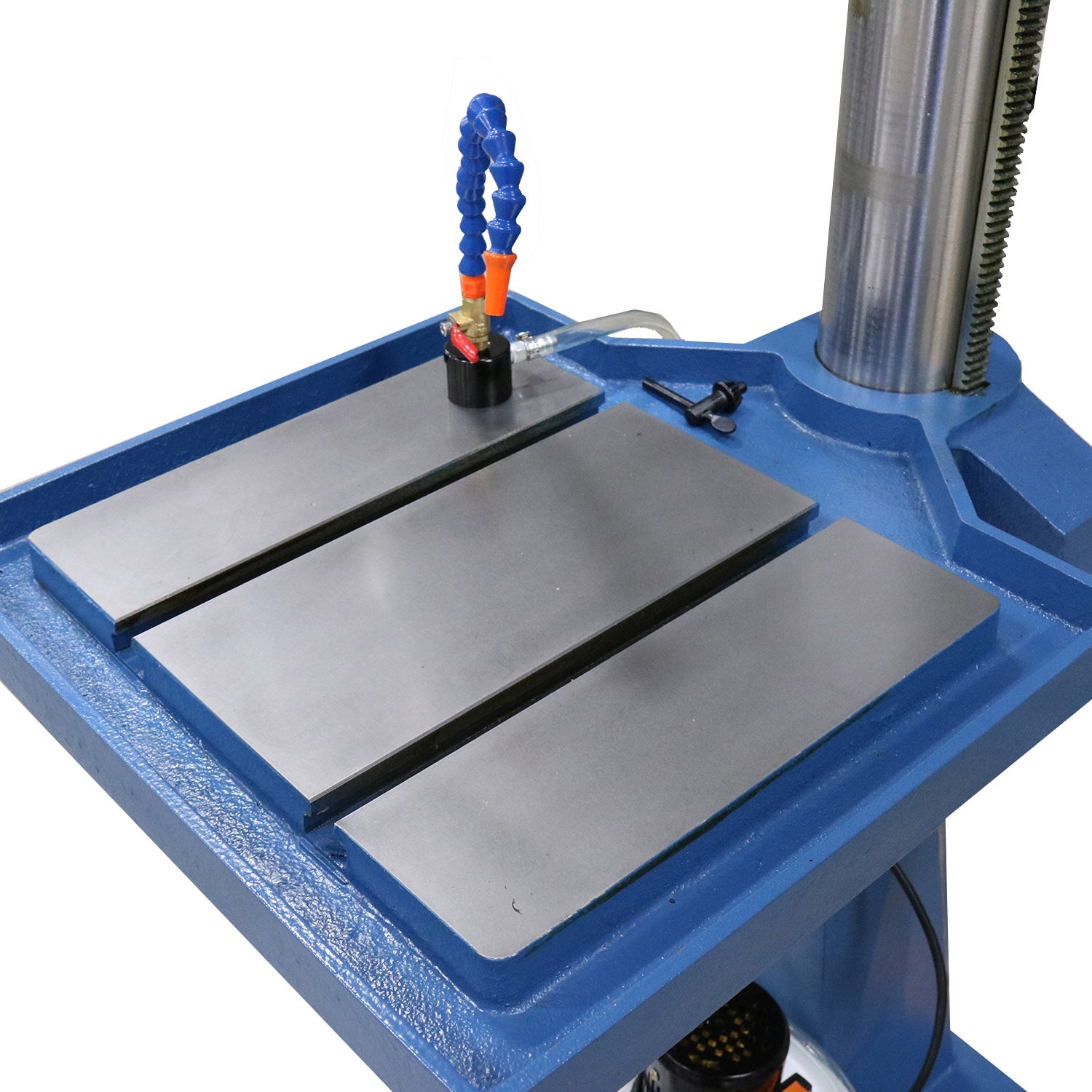

- Base and 16-3/4" x 19" table are constructed from heavy iron casting to maximize rigidity and long-term durability.
- Large 0.625" T-slots in the table accept a vise or fixture to hold workpieces securely during operation.

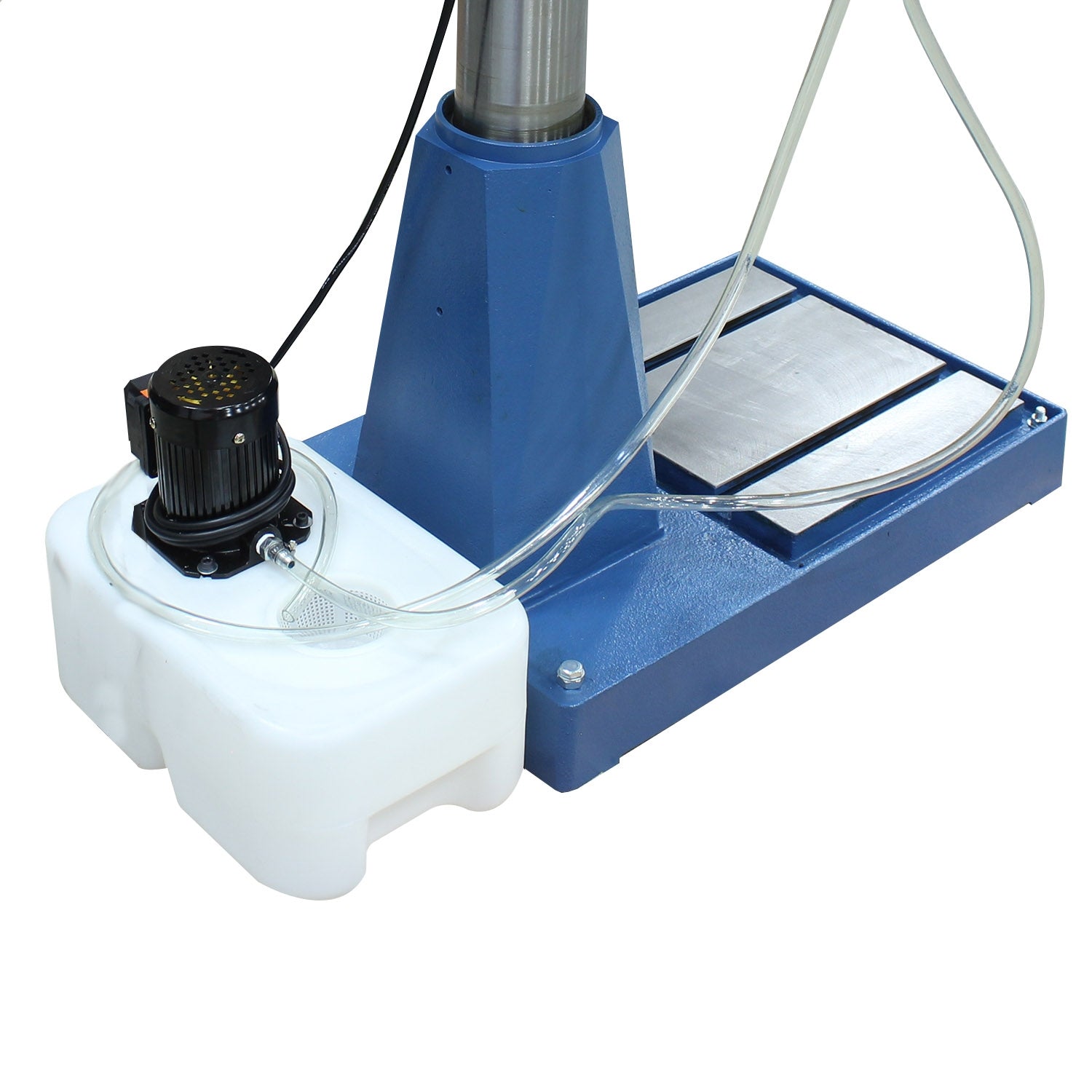

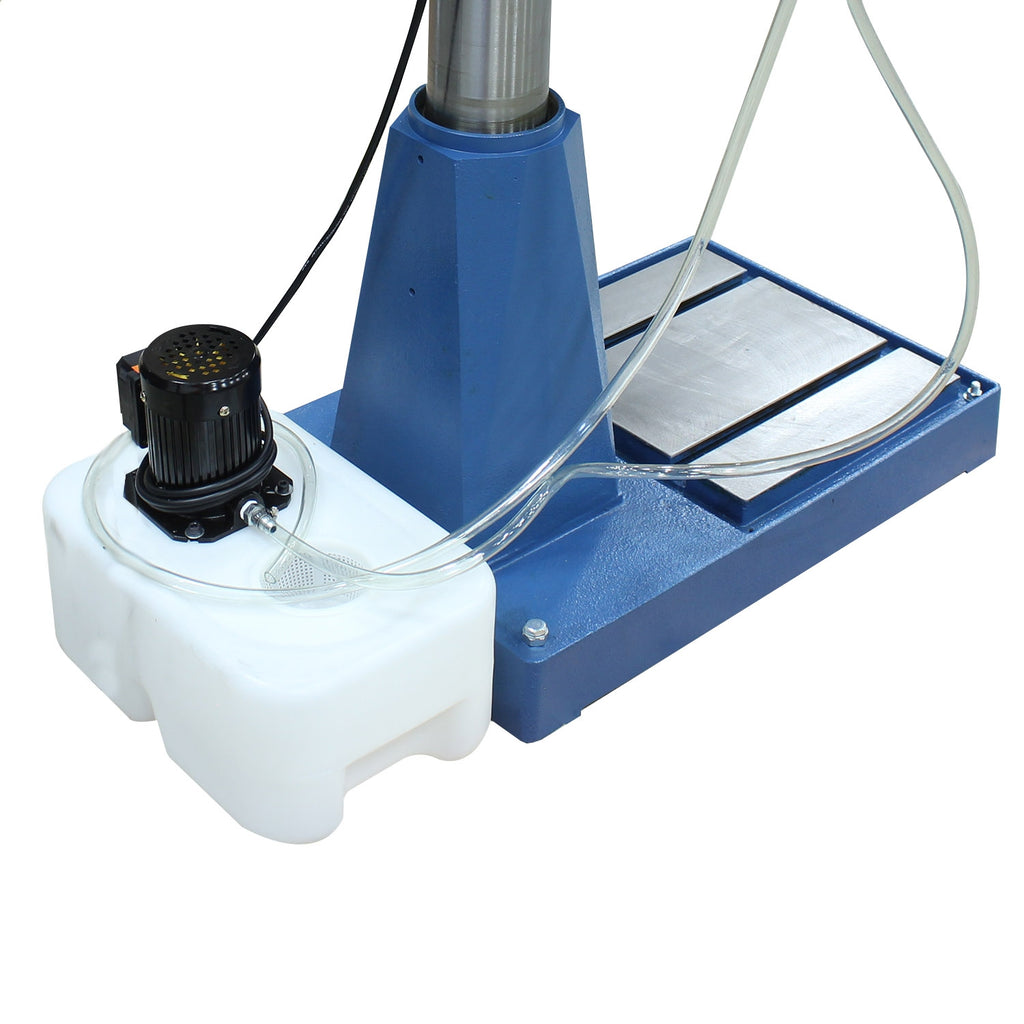

- Movable coolant system with magnetic fixture directs coolant spray exactly where needed to extend the lifespan of drill bits and taps.
- 22" swing accommodates a broad range of workpiece sizes, making this press suitable for both small-part and larger-format work.
Specifications
- MPN: BA9-1020169
- Brand: Baileigh
- Model: DP-1200VS
- Motor: 2 hp
- Power Requirement: 220V, single-phase
- Swing: 22"
- Maximum Drilling Capacity (Mild Steel): 1-1/16"
- Spindle Taper: #3 Morse taper
- Speed Range: 10-2,250 RPM
- Speed Control: Variable, inverter-driven with potentiometer dial
- Readout: Digital spindle RPM display
- Tapping Capacity: Up to 1/2" (auto-reversing)
- Table Size: 16-3/4" x 19"
- T-Slot Size: 0.625"
- Table Material: Heavy iron casting
- Base Material: Heavy iron casting
- Coolant System: Movable with magnetic fixture
- Country of Origin: Taiwan
Frequently Asked Questions
- What power supply does the DP-1200VS require?
- The DP-1200VS is powered by a 2 hp motor that runs on 220 volts of single-phase power, making it compatible with standard shop electrical service without the need for three-phase infrastructure.
- What is the maximum drilling capacity of this press in mild steel?
- The DP-1200VS handles a maximum drilling capacity of 1-1/16" in mild steel, making it well-suited for production drilling tasks across a variety of fabrication environments.
- Can the DP-1200VS be used for tapping operations?
- Yes. The drill press features an auto-reversing tap function with up to 1/2" tapping capacity, allowing operators to efficiently complete threaded hole operations without manual reversal.
- How is spindle speed controlled and monitored on the DP-1200VS?
- Spindle speed is controlled through a speed potentiometer dial that drives the inverter-driven head across a variable range of 10-2,250 RPM. A digital readout displays the actual spindle RPM in real time, ensuring accurate and repeatable results for every application.
