Product Description

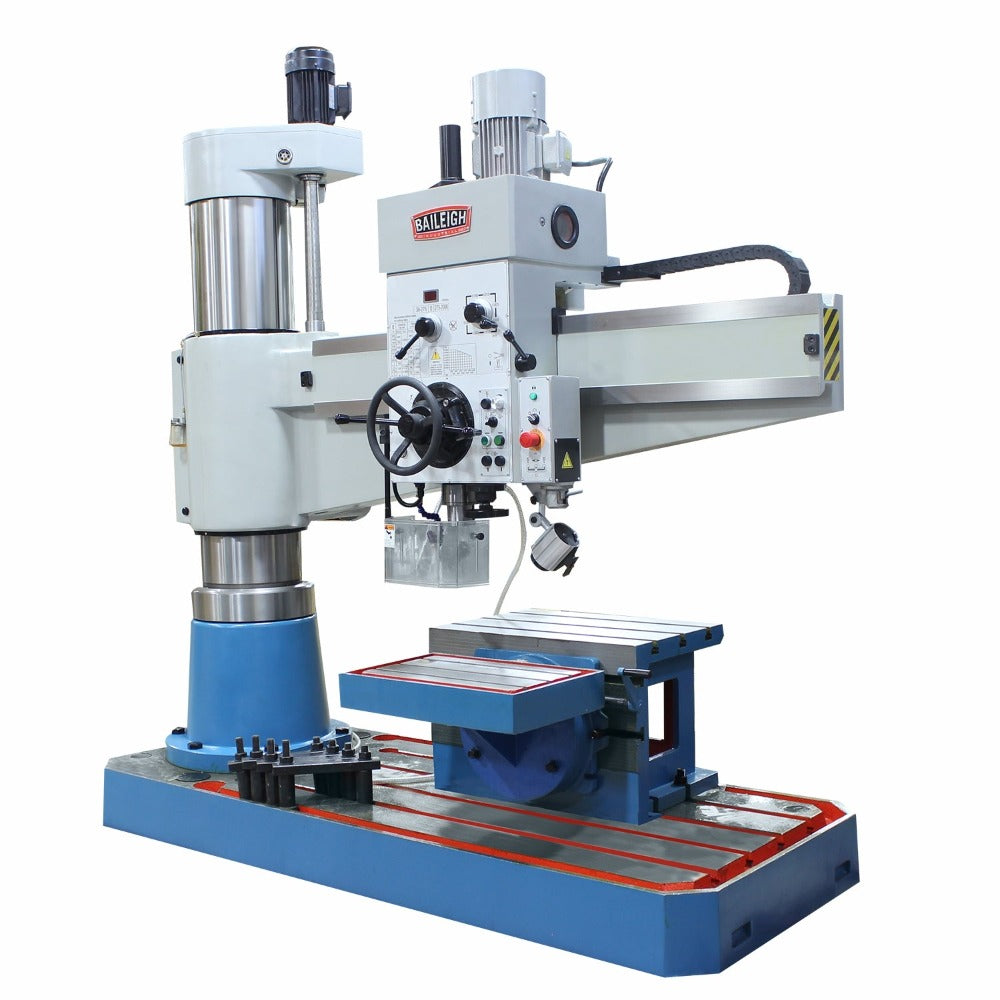

The Baileigh Variable Speed Radial Drill Press RD-1600H-VS is a heavy-duty radial drill press engineered for drilling, spot facing, counter-boring, and tapping operations on medium and small parts. Inverter driven and fully variable speed, this machine delivers exceptional versatility for single workpiece machining and batch production alike in machining workshops, maintenance workshops, and tool production environments.
Key Features
- 220V 3-phase power input for reliable industrial performance
- 38 to 2000 rpm variable speed range to match any drilling application
- Heavy duty, oversized MT5 spindle for maximum rigidity and accuracy
- Power down feed for consistent, controlled drilling depth

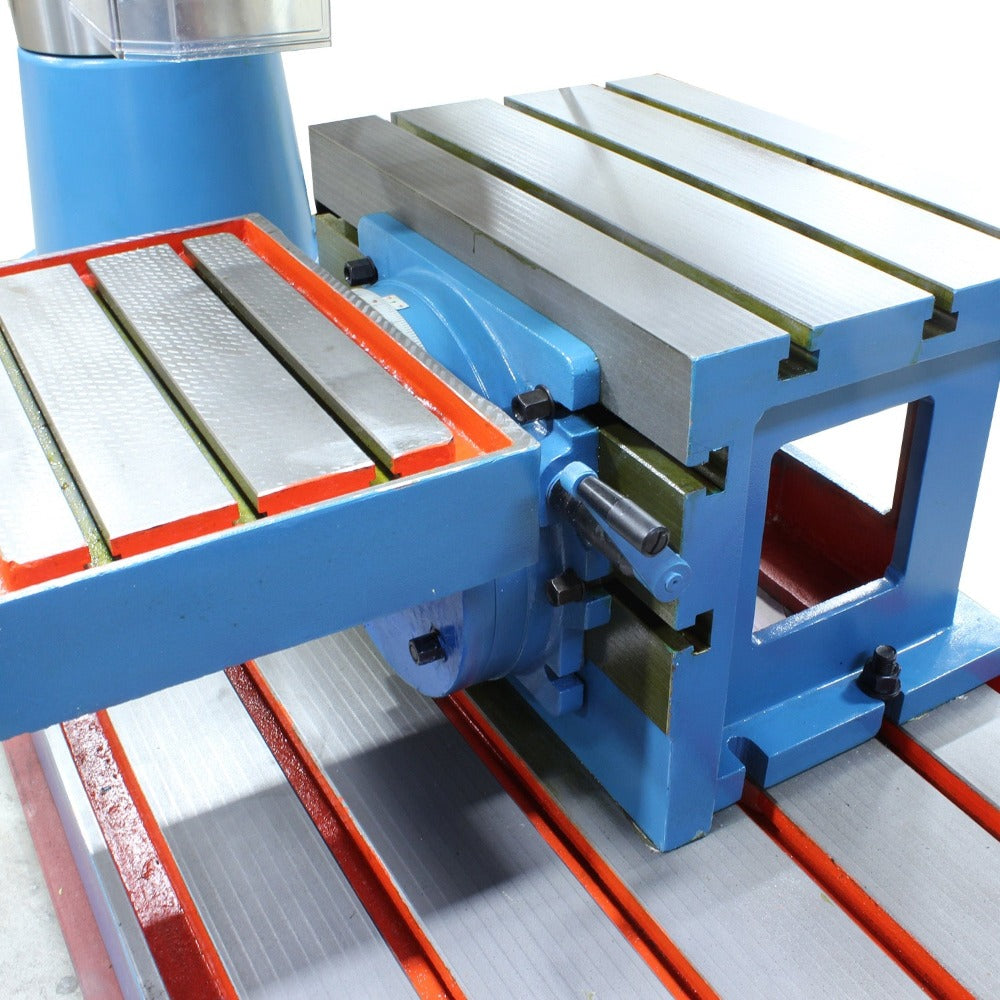

- Box shape worktable provides a stable, rigid work surface
- Inverter driven, variable speed operation for smooth, stepless speed adjustment
- Integrated coolant system with easy to reach switch keeps tooling cool during extended operations
- Hydraulic clamping for column, arm, and spindle box ensures secure positioning and vibration-free performance
Specifications
- Distance Spindle to Column (Max.): 63 in.
- Distance Spindle to Column (Min.): 13-3/4 in.
- Input Power: 220 Three Phase
- Motor HP: 5.25
- Number of Spindle Speeds: 38 to 2000 rpm (variable)
- Range of Speeds: .0024 in. to .0394 in. in/rev
- Spindle Taper: MT5
- Tapping Capacity - Mild Steel: 1-3/4 in. (.45 steel) & 2 in. (HT200 cast iron)
- Country of Origin: China
Approved Applications
- Drilling through mild steel, cast iron, and similar materials
- Spot facing for creating flat bearing surfaces around holes
- Counter-boring for recessed fastener installation
- Tapping operations up to 1-3/4 in. in .45 mild steel and 2 in. in HT200 cast iron
- Single workpiece machining in maintenance and tool production workshops
- Batch production runs in professional machining workshop environments
Frequently Asked Questions
- What spindle taper does the RD-1600H-VS use?
- The RD-1600H-VS is equipped with a heavy duty, oversized MT5 spindle taper, which provides excellent rigidity and accommodates a wide range of tooling for demanding drilling and boring operations.
- What is the speed range of this radial drill press?
- This drill press features an inverter driven, variable speed system with a range of 38 to 2000 rpm, allowing the operator to dial in the precise speed required for different materials and cutting tools without the need for manual belt or gear changes.
- How is the arm and spindle box secured during operation?
- The RD-1600H-VS uses hydraulic clamping for the column, arm, and spindle box, ensuring that all major components lock firmly in position to minimize movement and vibration during drilling, spot facing, counter-boring, and tapping operations.
- Does this machine include a coolant system?
- Yes, the RD-1600H-VS features an integrated coolant system with an easy to reach switch, allowing the operator to conveniently manage coolant flow to extend tool life and maintain accuracy during extended production runs.
