Product Description

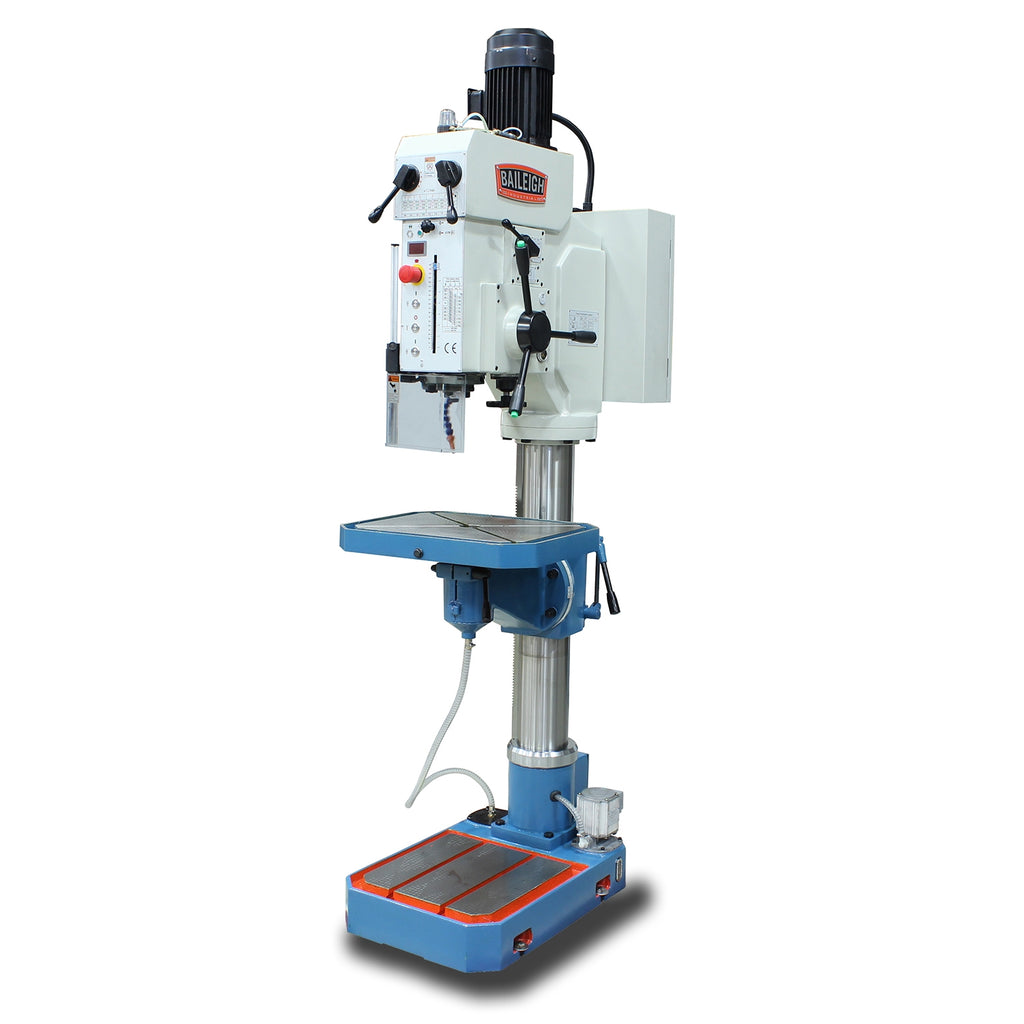

The Baileigh Gear Driven Drill Press DP-1850G from Baileigh is built to handle demanding fabrication and machine shop applications with confidence. Powered by a robust 2 hp motor and featuring a wide-range gear head, this floor-standing drill press delivers the speed versatility, rigidity, and precision that serious metalworking operations require.
Key Features
- 2 hp motor runs on 220-volt 3-phase power.
- 26-3/4" swing to tackle large pieces of material.
- Drills a maximum capacity of 1.57" with a tapping capacity of up to 1".

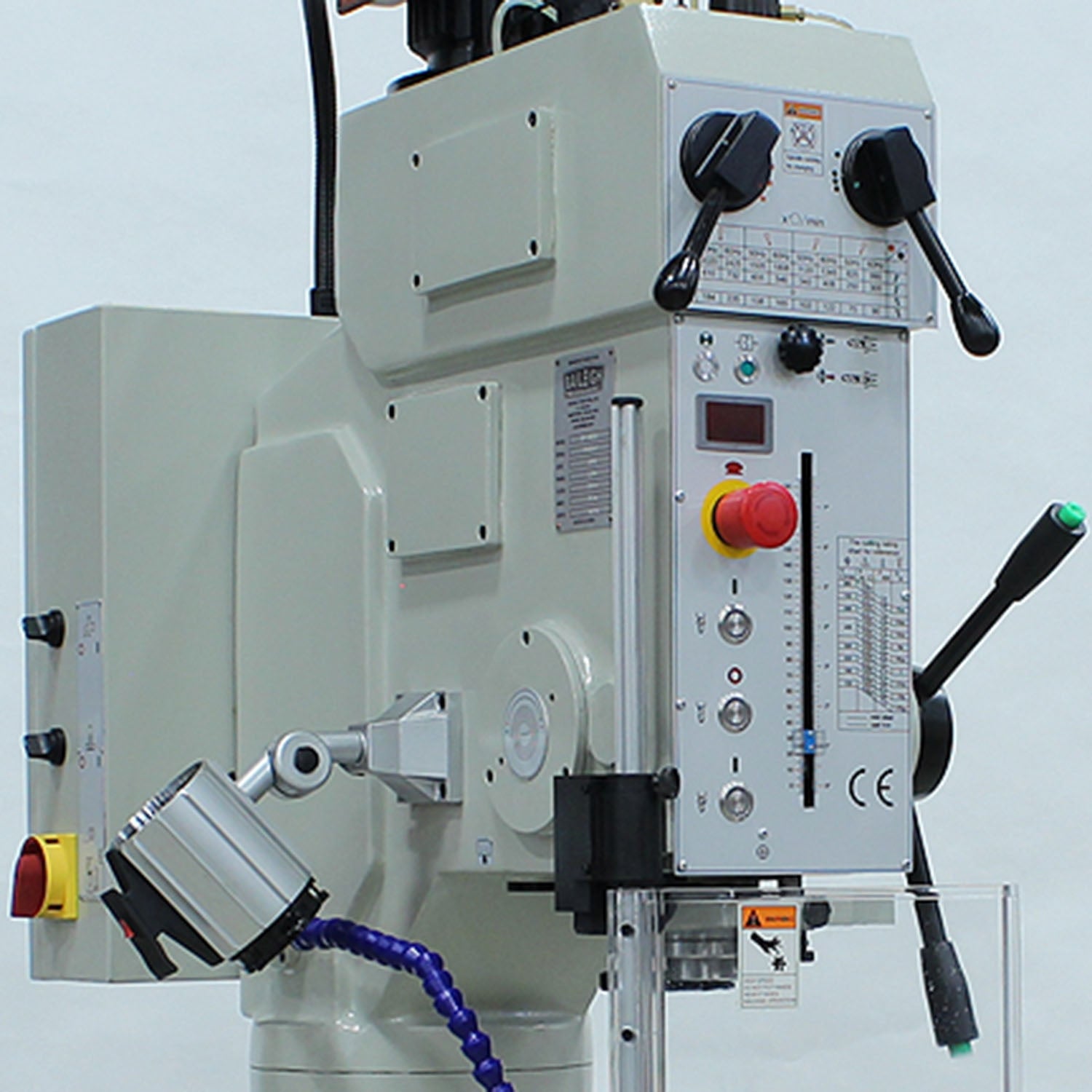

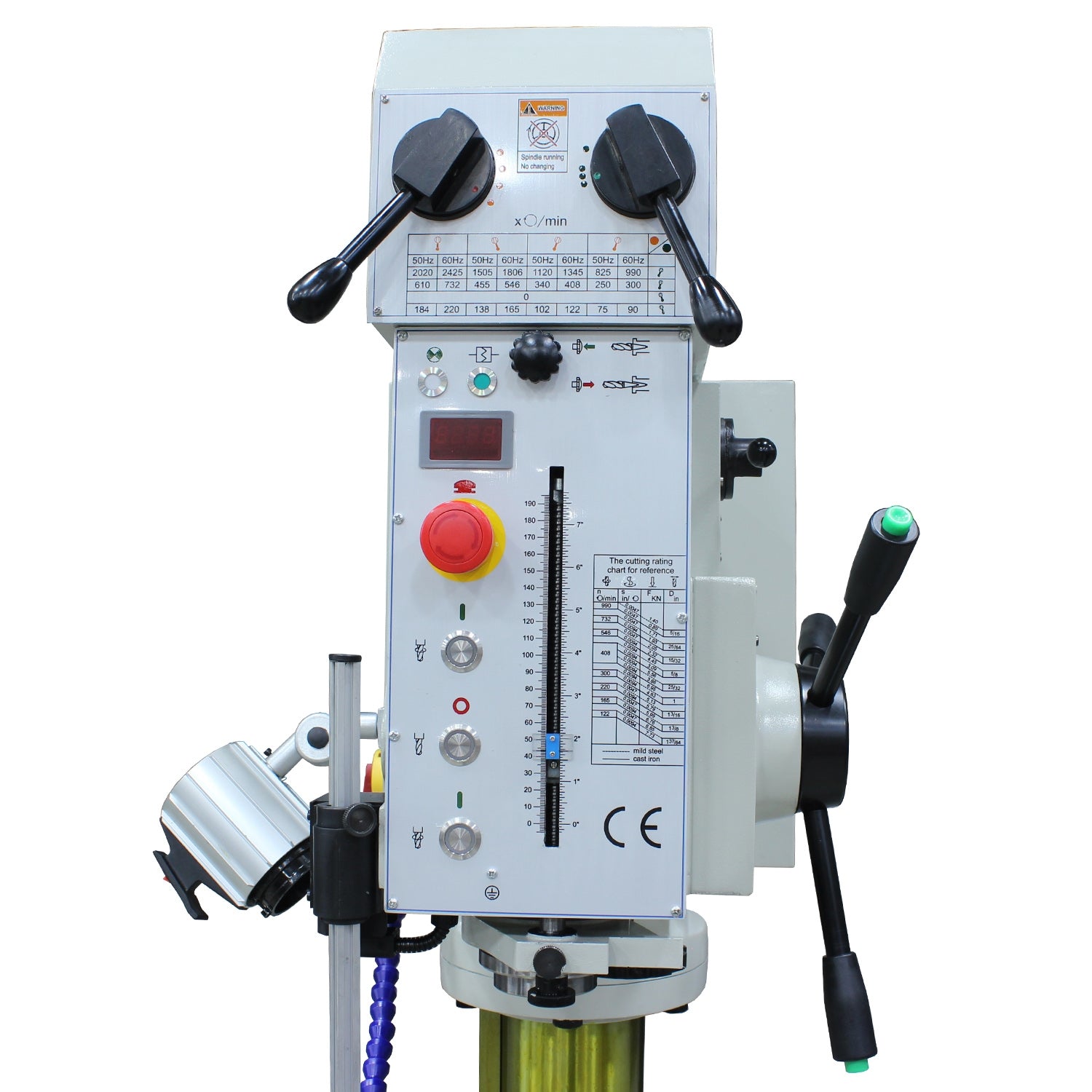

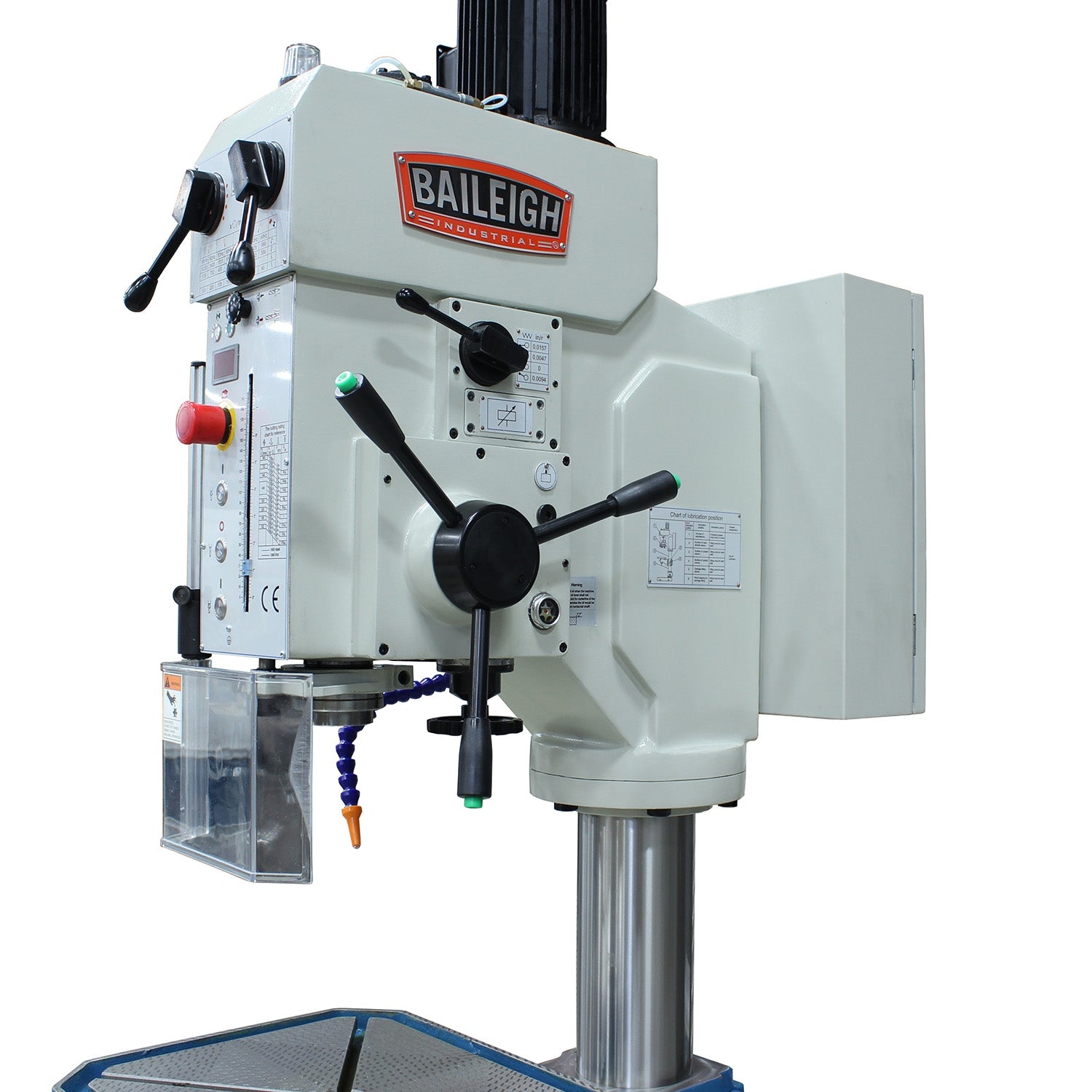

- Gear head turns at speeds between 90-2425 rpm, so you can select the right speed for almost any application.
- #4 Morse spindle taper feed is electric and completely adjustable.

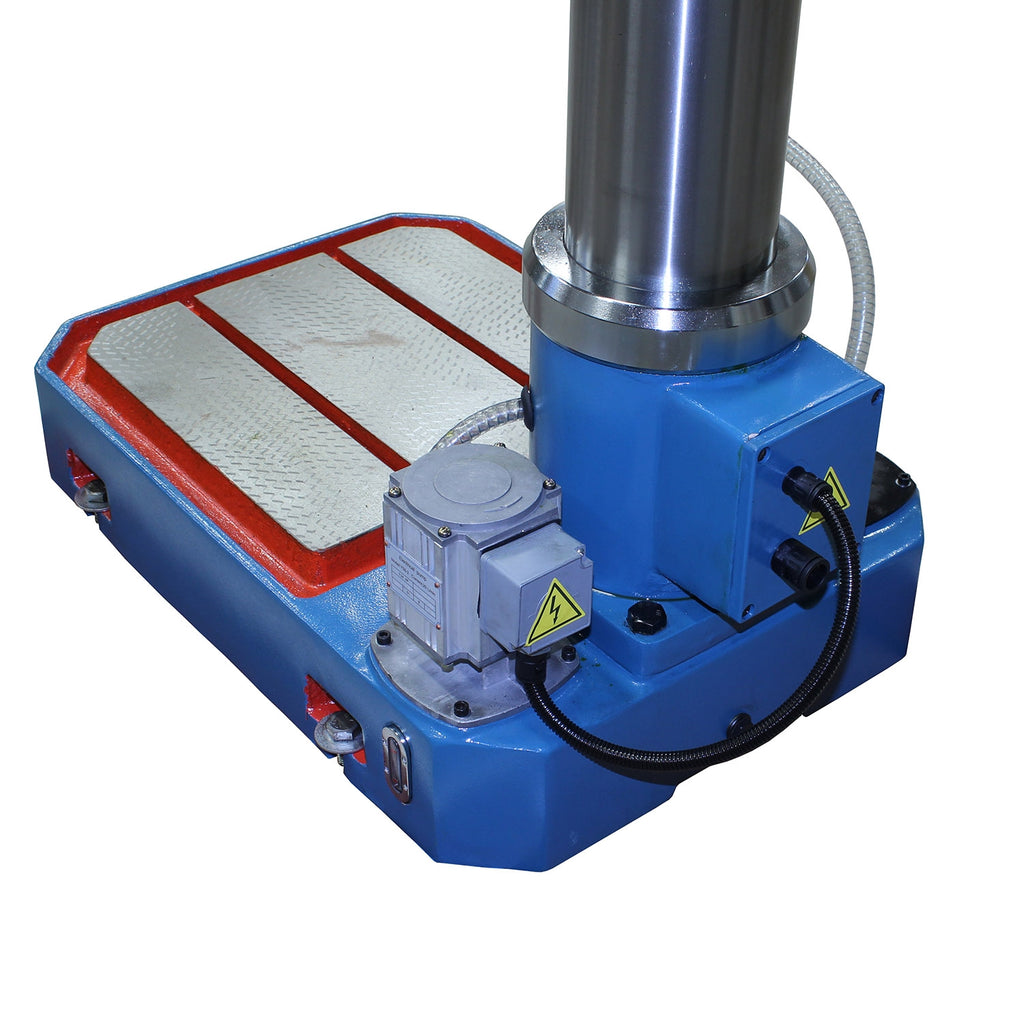

- Massive column and cast steel base reduce flexing even when you're drilling at full capacity.

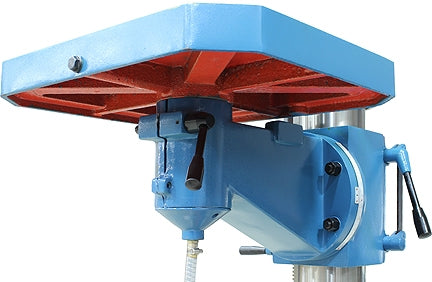

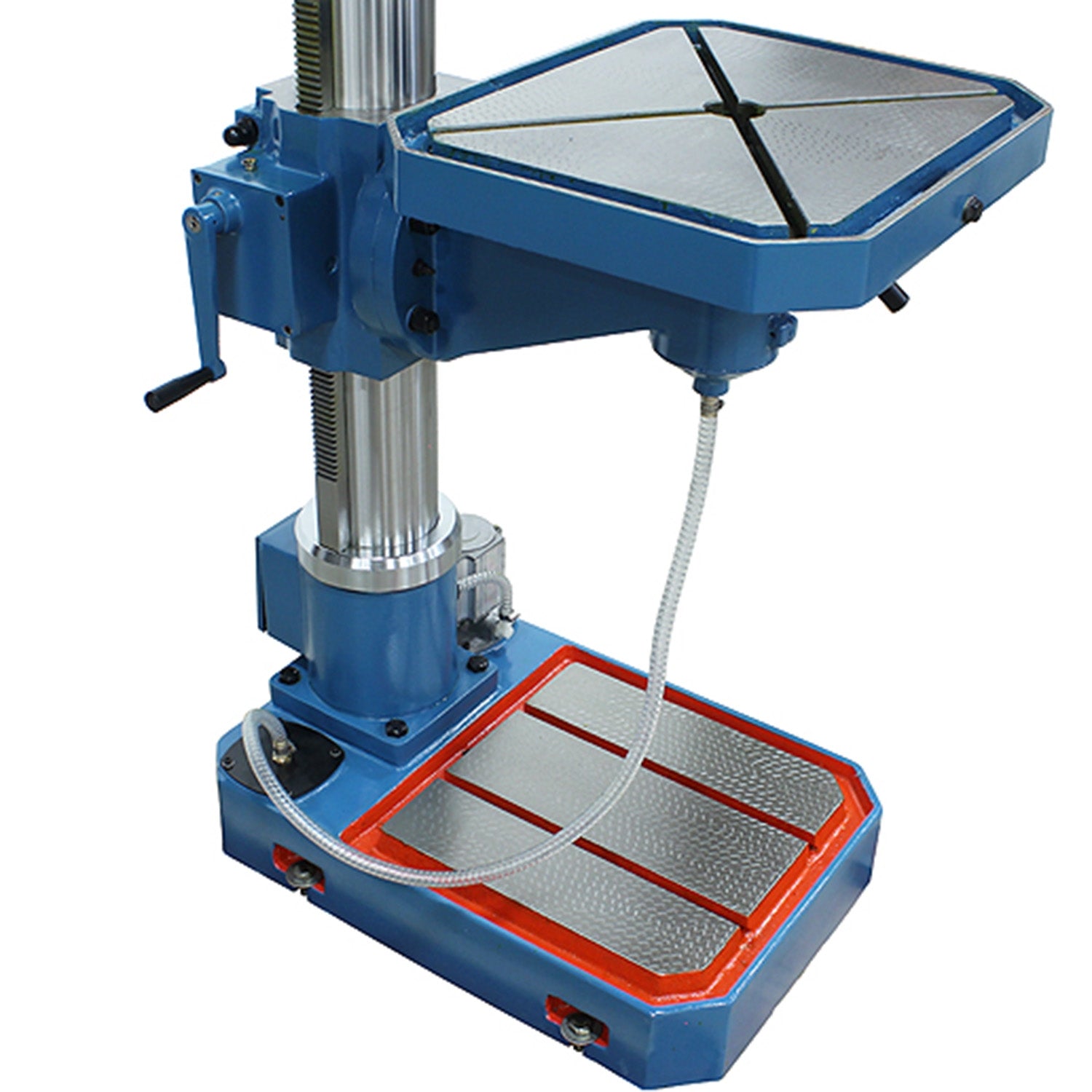

- 21-1/4" x 17-1/4" work table with X-pattern T-Slots.
- .7" table-slots allow for a vise or fixture to get a firm hold on the material.

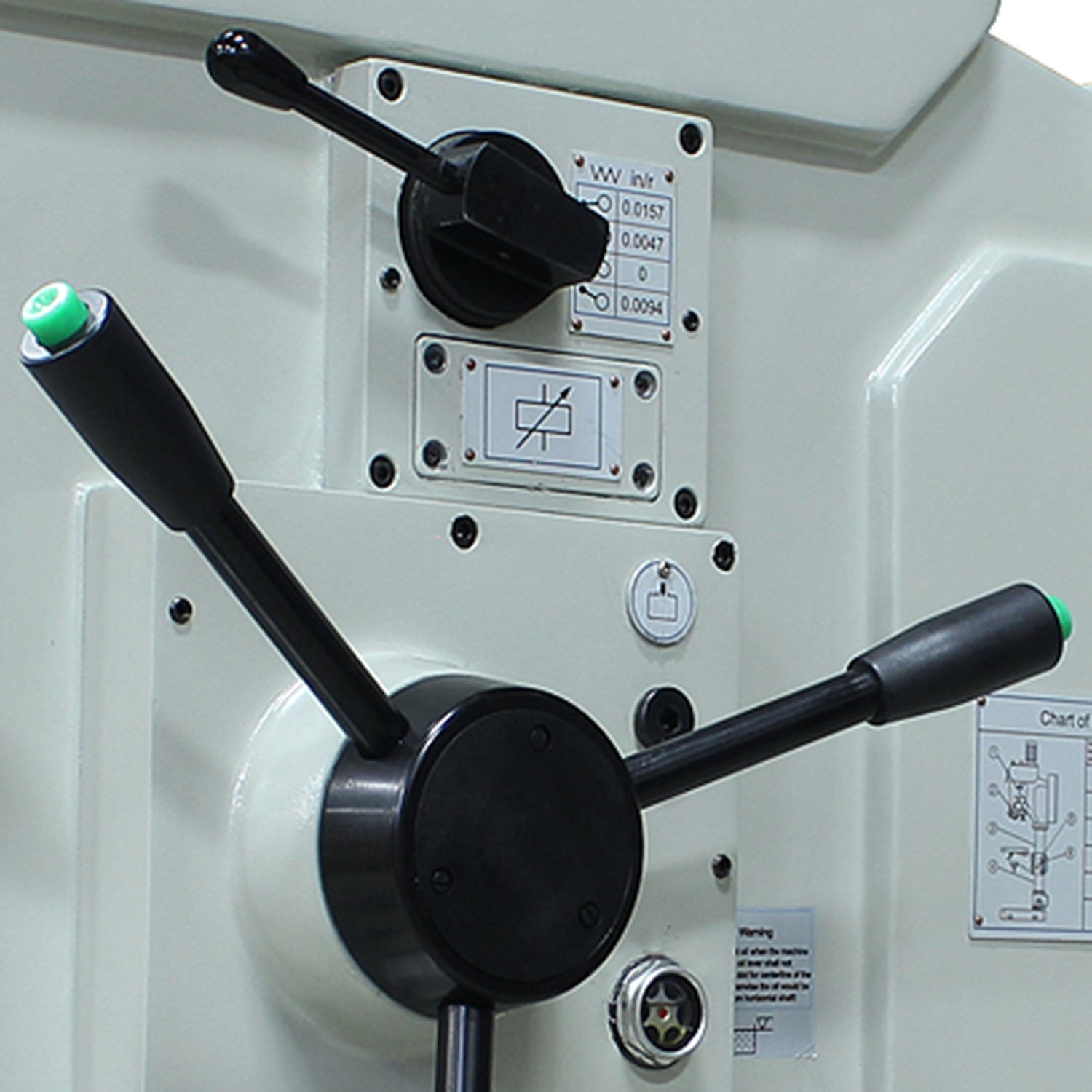

- Includes an electronic power-down feed and a coolant system to prolong the drill's lifetime of use.
- Equipped with a chuck and an automatic tool ejector to adapt to your project quickly and easily.
Specifications
- MPN: BA9-1020697
- Motor: 2 hp
- Power Requirement: 220-volt, 3-phase
- Swing: 26-3/4"
- Maximum Drilling Capacity: 1.57"
- Tapping Capacity: Up to 1"
- Speed Range: 90-2425 rpm
- Spindle Taper: #4 Morse
- Spindle Feed: Electric, completely adjustable
- Work Table Size: 21-1/4" x 17-1/4"
- Table Slot Width: .7"
- Table Slot Pattern: X-pattern T-Slots
- Country of Origin: China
What's Included
- Chuck
- Automatic tool ejector
- Electronic power-down feed
- Coolant system
Frequently Asked Questions
- What power supply does the DP-1850G require?
- The DP-1850G is powered by a 2 hp motor that runs on 220-volt 3-phase power. Ensure your shop has the appropriate electrical service before installation.
- What is the maximum drilling and tapping capacity of this drill press?
- The DP-1850G drills a maximum capacity of 1.57" and offers a tapping capacity of up to 1", making it well-suited for heavy-duty metalworking tasks.
- How does the gear head speed range benefit different applications?
- The gear head turns at speeds between 90-2425 rpm, giving operators the flexibility to dial in the correct speed for a wide variety of materials and drilling or tapping operations - from slow, high-torque work on tough metals to faster speeds for smaller holes.
- How does the DP-1850G help secure workpieces during drilling?
- The 21-1/4" x 17-1/4" work table features an X-pattern T-Slot design with .7" table-slots, allowing a vise or fixture to get a firm hold on the material for precise and safe drilling at full capacity.
