Product Description

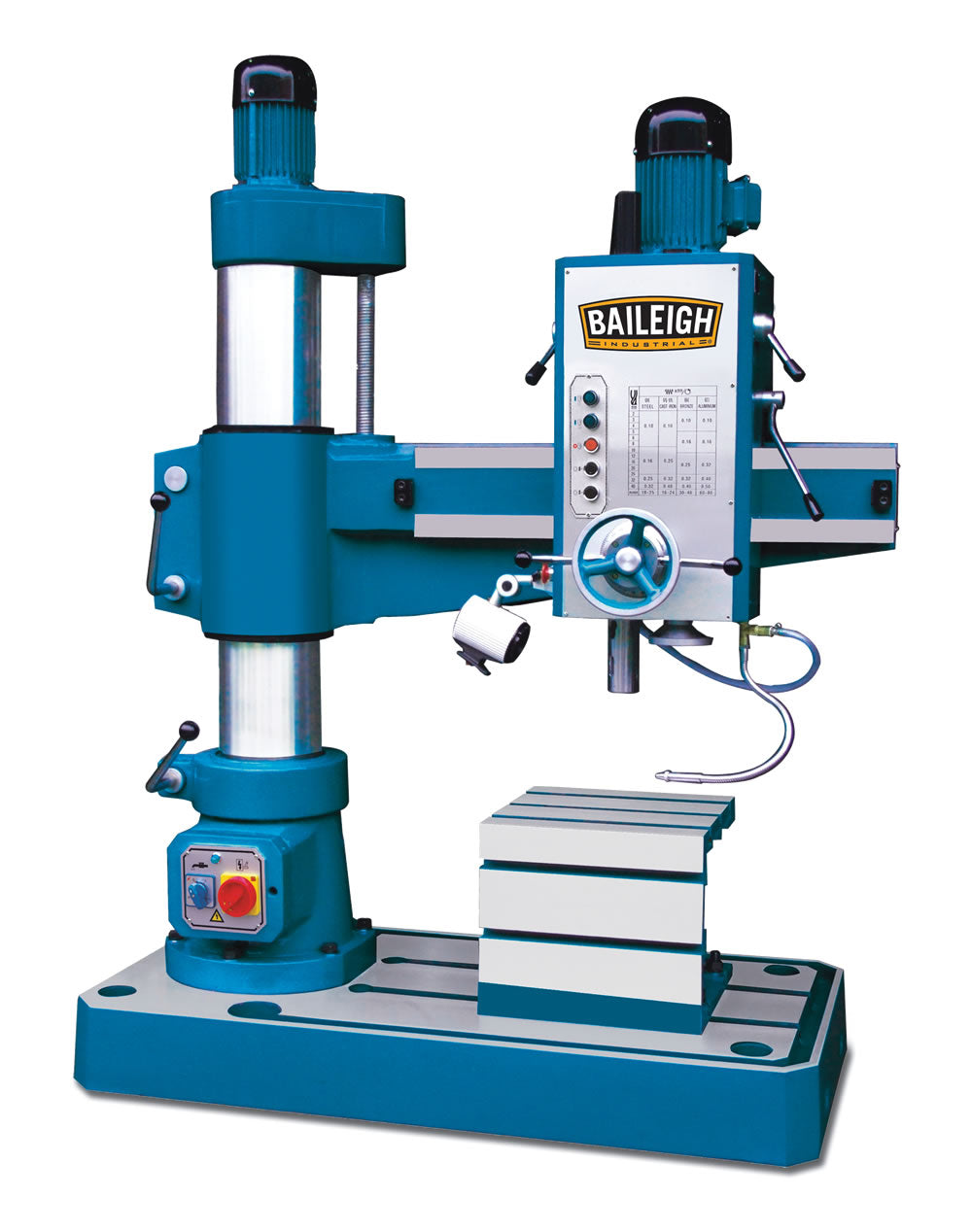

The Baileigh Radial Drill RD-1000M is a heavy-duty radial drilling machine engineered for demanding metalworking and fabrication environments. Built for precision and durability, this machine delivers a 1.57" maximum drilling capacity along with power down feed functionality, making it a reliable choice for shops that require consistent, repeatable results across a wide range of drilling applications.
Key Features
- 1.57" maximum drilling capacity for handling a broad range of material thicknesses
- Heavy duty construction designed to withstand rigorous industrial use
- Power down feed for controlled, consistent drilling depth and reduced operator fatigue
- MT4 spindle provides a robust and widely compatible tooling interface
- 39.3" reach allows drilling operations across large workpieces without repositioning
- 9.4" column delivers solid vertical support and structural rigidity
- Box shape worktable offers a stable, versatile surface for securing workpieces
Specifications
- MPN: BA9-1008487
- Brand: Baileigh
- Maximum Drilling Capacity: 1.57"
- Spindle Taper: MT4
- Reach: 39.3"
- Column: 9.4"
- Worktable Shape: Box Shape
- Input Power: 220 Three Phase
- Motor Phase: Three
- Feed Range: .005 in. to .02 in.
- Country of Origin: China
Frequently Asked Questions
- What is the maximum drilling capacity of the Baileigh RD-1000M?
- The RD-1000M has a maximum drilling capacity of 1.57", making it suitable for a wide variety of drilling tasks in metal fabrication and industrial settings.
- What type of spindle does the RD-1000M use?
- This radial drill is equipped with an MT4 (Morse Taper #4) spindle, which is a robust and widely compatible standard that supports a broad range of drill bits and tooling accessories.
- What power supply is required to operate the RD-1000M?
- The Baileigh RD-1000M requires 220V three-phase input power. Ensure your facility has the appropriate three-phase electrical supply before installation.
- What does the power down feed feature provide?
- The power down feed delivers controlled, mechanically driven downward movement of the spindle during drilling operations. This promotes consistent hole depths, reduces operator effort, and improves repeatability across production runs. The feed range is .005 in. to .02 in.
